Adjusting the function of a push button

You can adjust the function of the following push buttons:

• generic push buttons with or without LED

• push-button interface used as 4-fold control

• push button extension

• wireless push buttons

Starting point

• Your project comprises at least 1 push button.

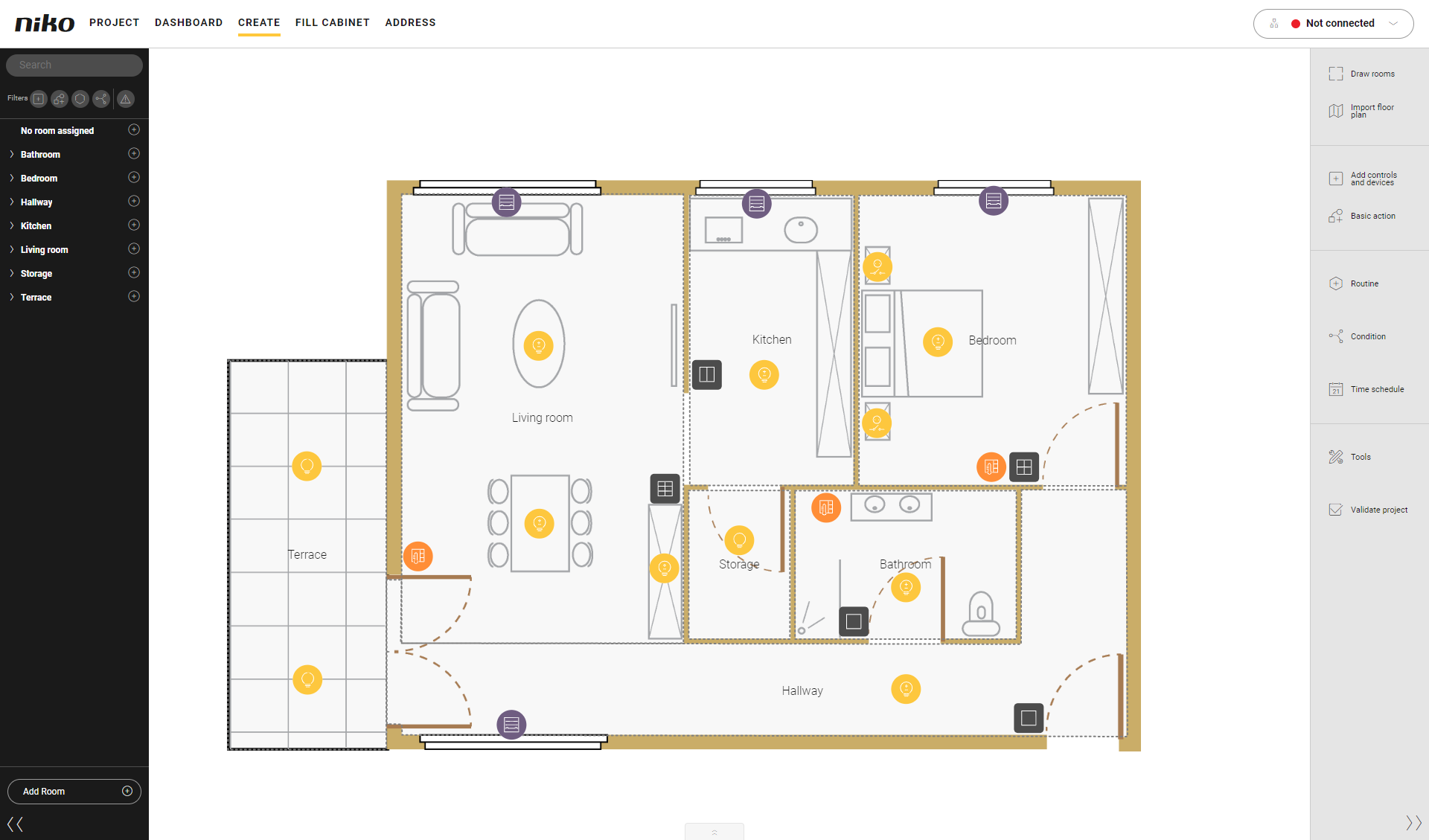

• You are in the Create overview window.




Procedure

1. Click on the push button.

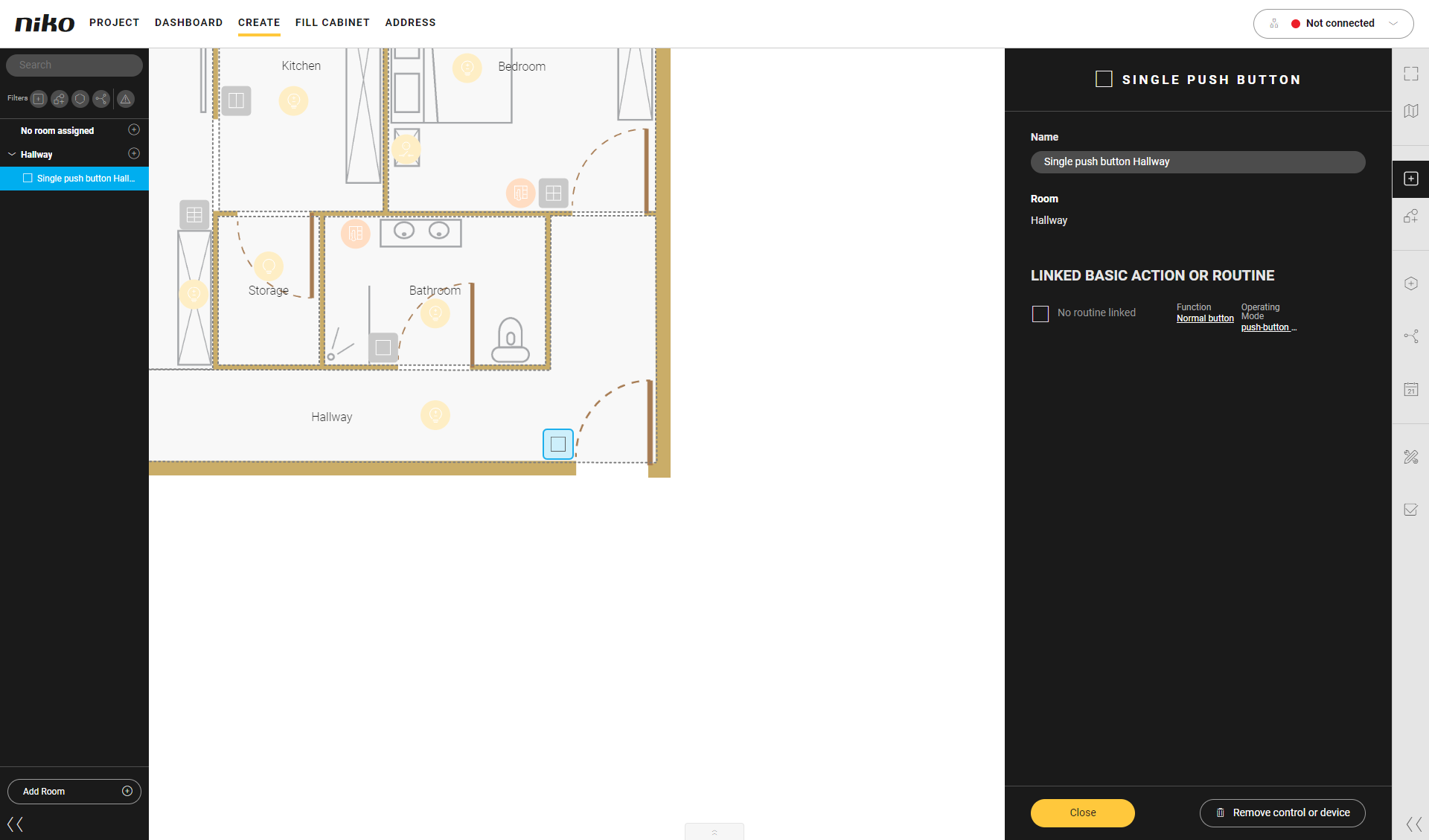

   Result: The pane with the information appears.




2. Click on Function.
   Result: The Function menu appears.




3. Adjust the function as follows:

• Choose Normal button to activate the basic action or routine by pressing the button. The button has a single function.




• Choose Shift button to give the button 2 functions based on a condition that is fulfilled (see Shift function).




• Choose Double function button to give the button 2 functions, depending on whether it is pressed for a short or a long time. Set the Duration (minimum 1 sec. - maximum 5 sec) for long press and link the desired routine or basic action to both functions.



Not all basic actions and routines can be linked to the double function of a button. If not supported you can use them in operation mode (short press/long press).
