Addressing DALI devices

Starting point

• You have created the necessary DALI devices.

• You addressed at least one DALI-2 broadcast module or DALI-2 addressable module.

• The DALI control gear (DALI lamps) are connected in the installation.

• Your computer is connected to the installation.

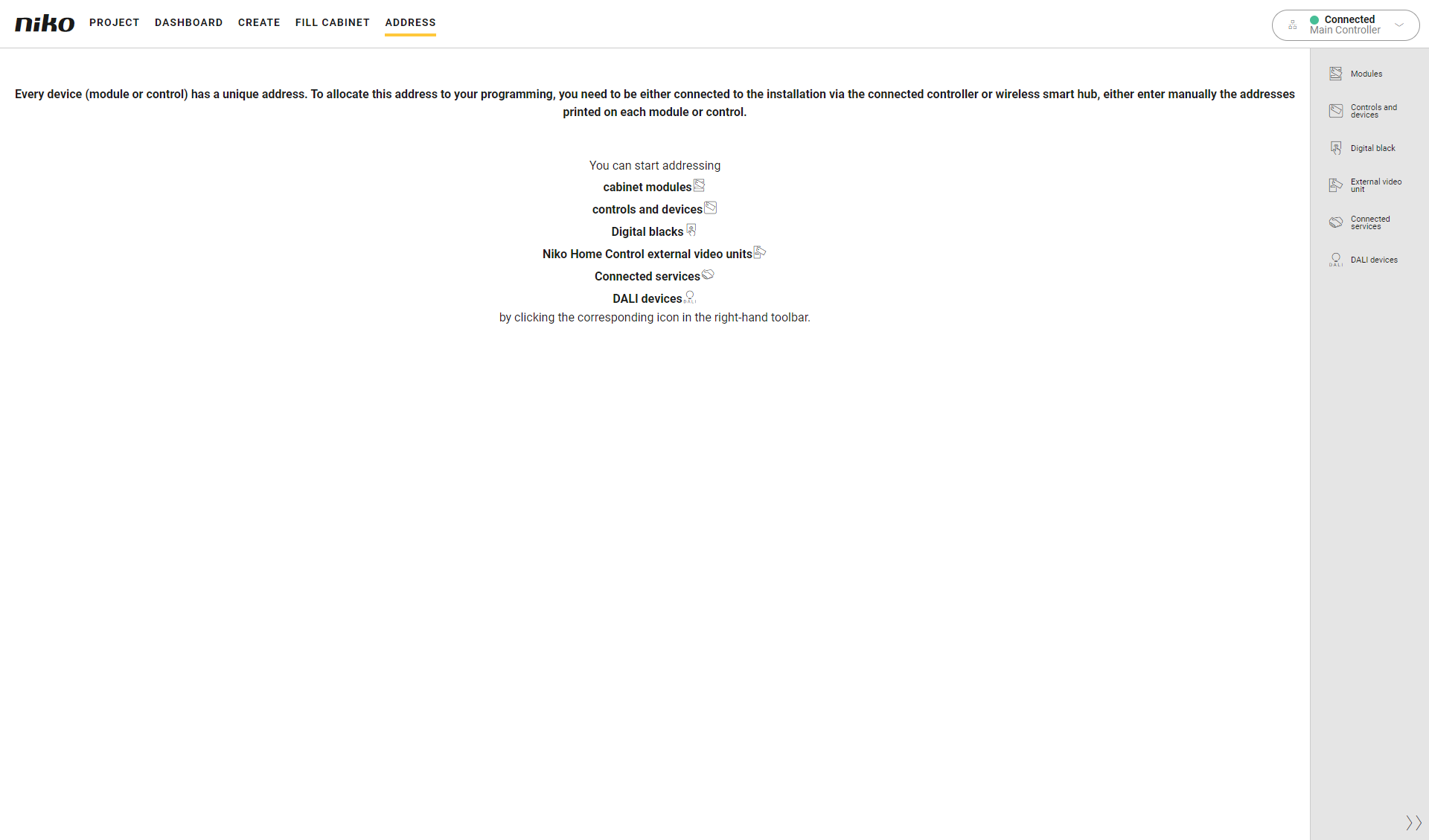

• You are in the Address overview window.




Procedure

1. In the right-hand button bar, click on the button DALI devices.
   Result:

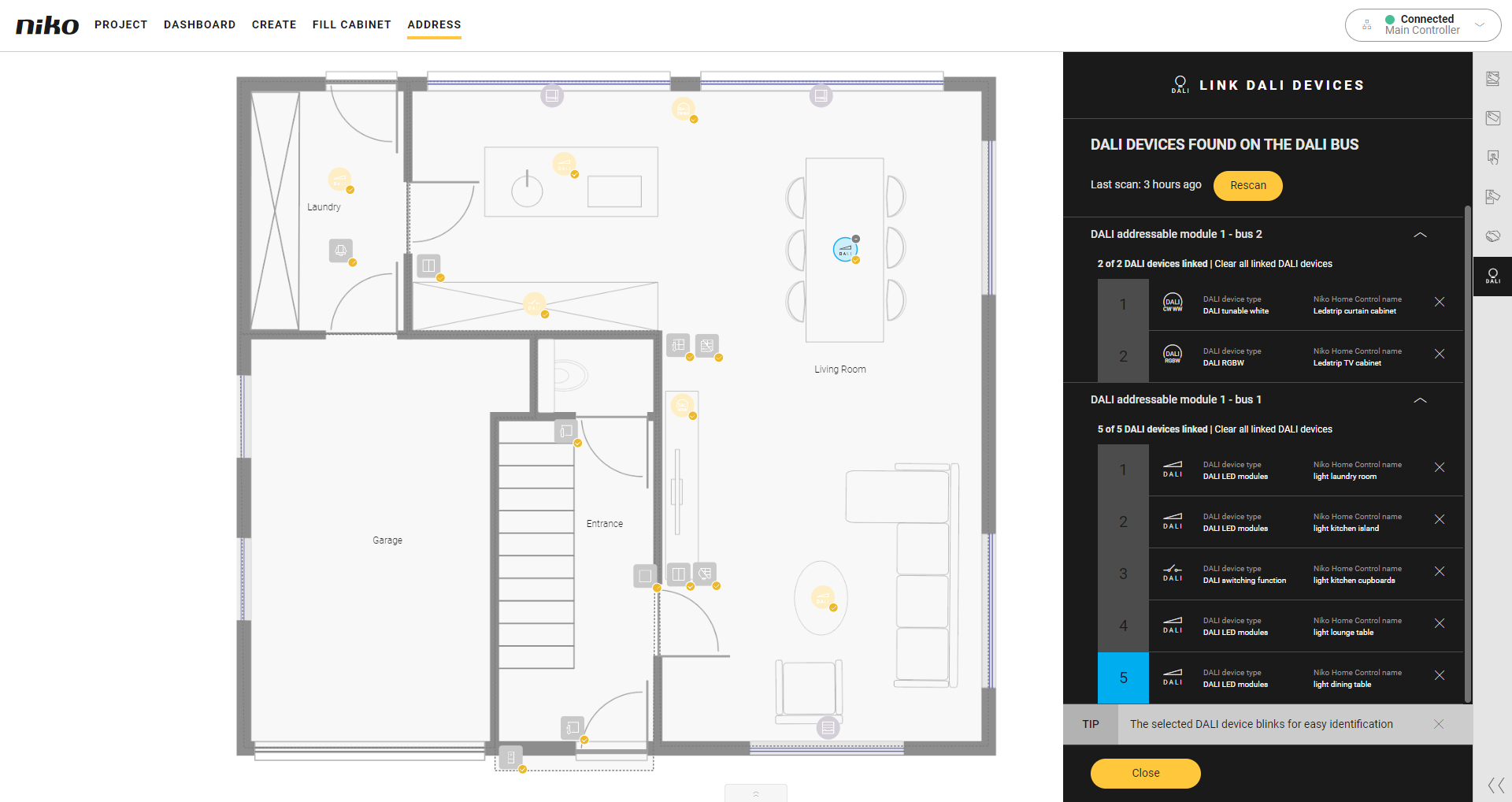

   • The Link DALI devices pane appears, and the DALI bus is automatically scanned for DALI devices.

   • The discovered DALI devices are shown.




2. For each DALI device:

   1. Select the device in the Link DALI devices pane.

   2. The corresponding DALI gear in your installation blinks.

   3. Click on the plus sign of the corresponding device on the floor plan to link them.



3. Click the Close button to return to the Address overview window.
