Push-button interfaces

Description

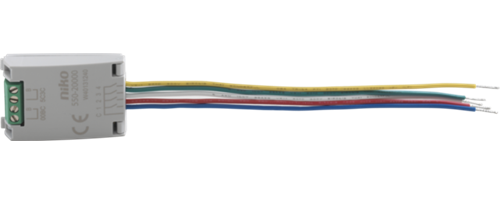

The push-button interface is used for connecting potential-free N.O. push buttons or NPN transistor outputs to the Niko Home Control installation. The interface converts the switching impulse of the push buttons into a Niko Home Control bus command.

Depending on the variant, you can connect one to four (550-20000), or one or two (550-20025) push buttons or NPN transistor outputs.

Each input contact of the push button interface with LEDs (500-20025) has a feedback LED, that can be used as a control or orientation light.

Within the programming software, each action button connected to a circuit wire of the push-button interface can be assigned to any kind of basic action or routine created.

Overview

550-20000550-20025


4 input contacts

no feedback LEDS

2 input contacts

2 feedback LEDs (1 per input contact)

Technical data

  • 550-20000:
    • Suitable for maximum four potential-free N.O. push buttons or NPN transistor outputs
  • 550-20025:
    • Suitable for one or two potential-free N.O. push buttons or NPN transistor outputs
    • Do not remove or replace the attached feedback LEDs
  • Resting potential: 8 Vdc (SELV, safety extra-low voltage)
  • Maximum distance to push button: 2 m
  • Only connect to an SELV contact (safety extra-low voltage)
  • Use in an outdoor environment only in combination with splash-proof housing (e.g. Niko Hydro)
  • Dimensions (HxWxD): 41.5 x 20.9 x 5 mm
  • Marking: CE
  • Ambient temperature: -25 - 55 °C
