What do you need?
Niko requirements
Your Niko Home Control installation meets the following requirements:
-
It has a connected controller II.
-
It is configured with the most recent programming software.
Additional products
You need to install the following additional products:
-
One heating or cooling module for Niko Home Control (550-00150) per four zones
-
A switching module for Niko Home Control (550-00103 or 550-00106) with at least one free output if you need to control also the pump group
-
One thermostat per zone:
-
A Digital black, 24 V (550-18000)
-
Thermostat
-
Rocker and toggle for NHC (have an integrated temp sensor)
-
Sense3 (has an integrated temp sensor)
-
Third-party requirements
Your system meets the following requirements:
-
It is a gas boiler system that supports heating only
-
It has an input contact for heat demand and optionally a pump group control.
Wiring diagram

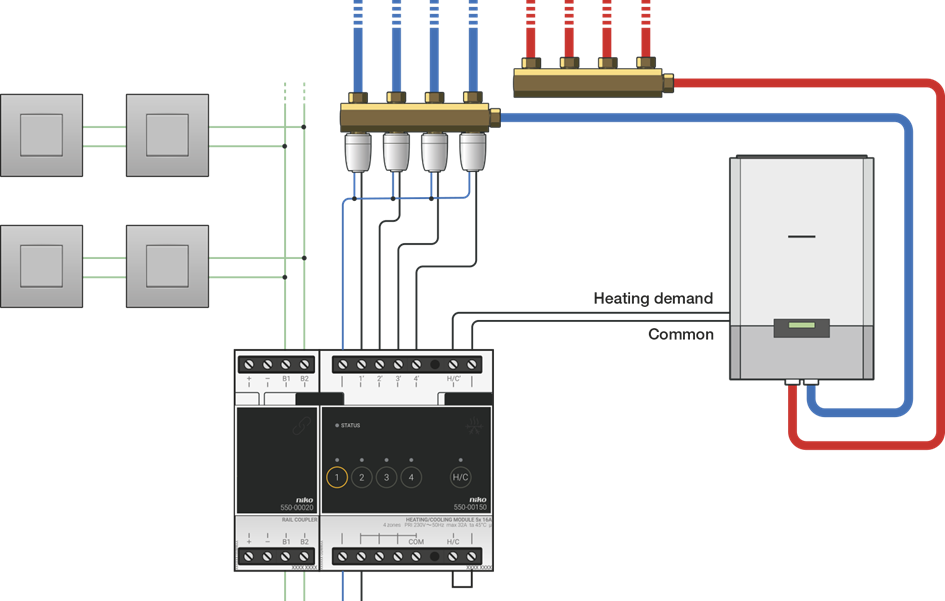

Only Heat demand
Connect the heat demand input contact on the gas boiler to the H/C output of the Niko Home Control heating/cooling module.
Below is an example:

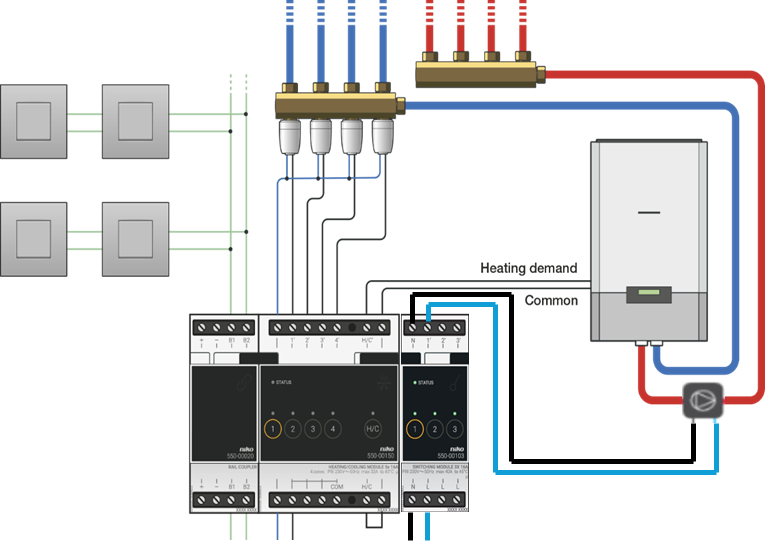

Heat demand in combination with pump control
Connect the heat demand input contact on the gas boiler to the H/C output of the Niko Home Control heating/cooling module, and connect the NHC relais output to the pump group.
Below is an example:
Programming
Configure the heating or cooling module, switching module and thermostats via the Niko Home Control programming software.
You can use this programming example as inspiration or as a starting point.
