Hardware manual Niko Original, Niko Intense, Niko Pure, Niko Rocker and Niko Toggle
Hardware manual Niko Original, Niko Intense, Niko Pure, Niko Rocker and Niko Toggle

Potential-free push button

Input voltage


Remote switch (AC voltage)

Other systems (DC voltage)

Input voltage

24 V~ via a short-circuit-proof safety transformer

0 - 24 Vdc

Max. switching capacity push button

max. 25 VA

1 A

Power supply LED (24 V, ±10%) push button

4 LEDs = 9 mA
6 LEDs = 13 mA

4 LEDs= 5 mA
6 LEDs= 7,5 mA

Signalling cable

8/10/12/14/16/20
min. 0,5 mm - max. 0,8 mm, (ex. SPV/SVV)

for LEDs


terminal C2 = +
terminals 123456 = -

Wiring

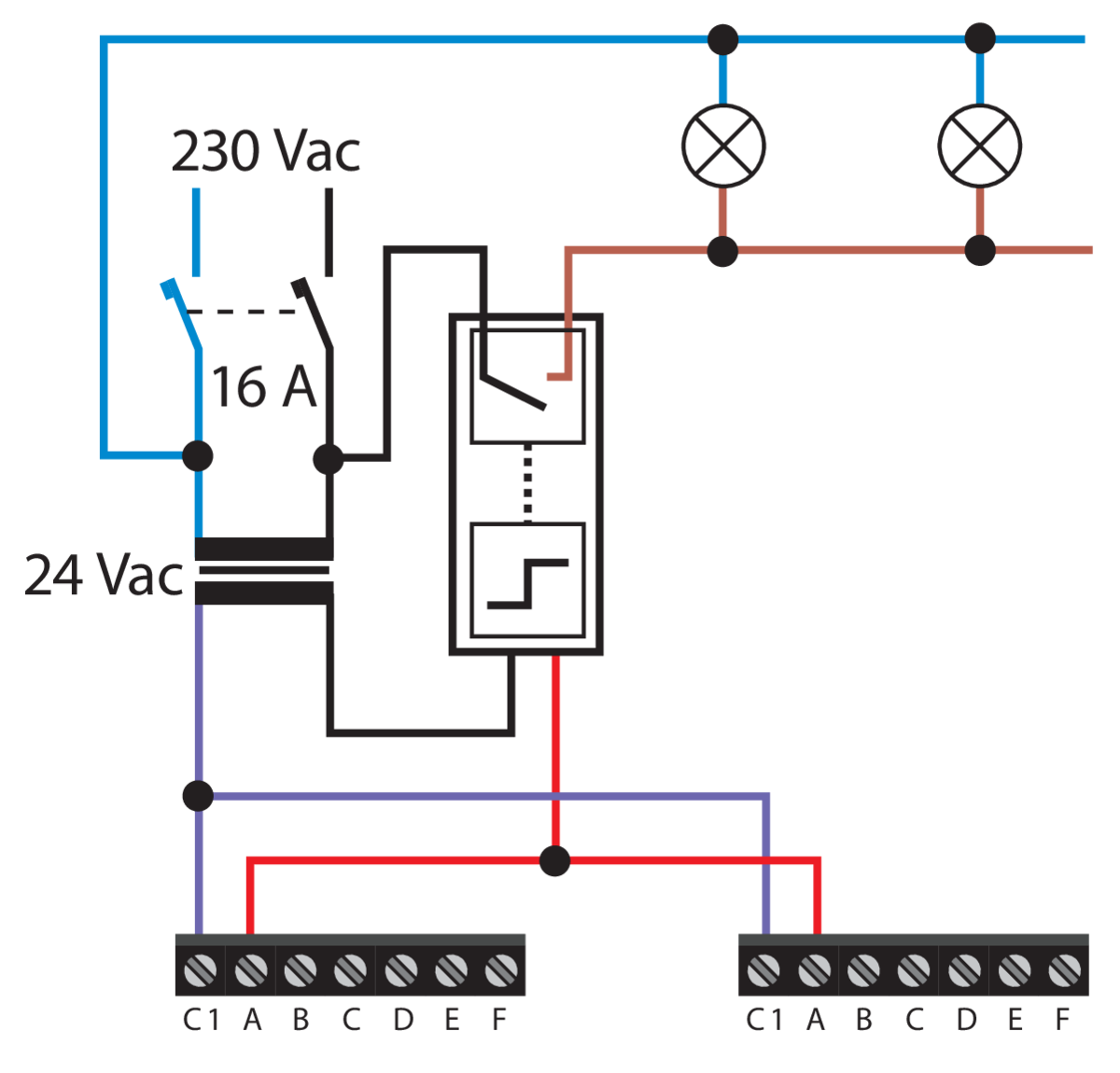

Controlling 1 light circuit from 2 places

https://dam.nikocdn.eu/asset/175423/guideImage/BW_170-60050_TG_001.png

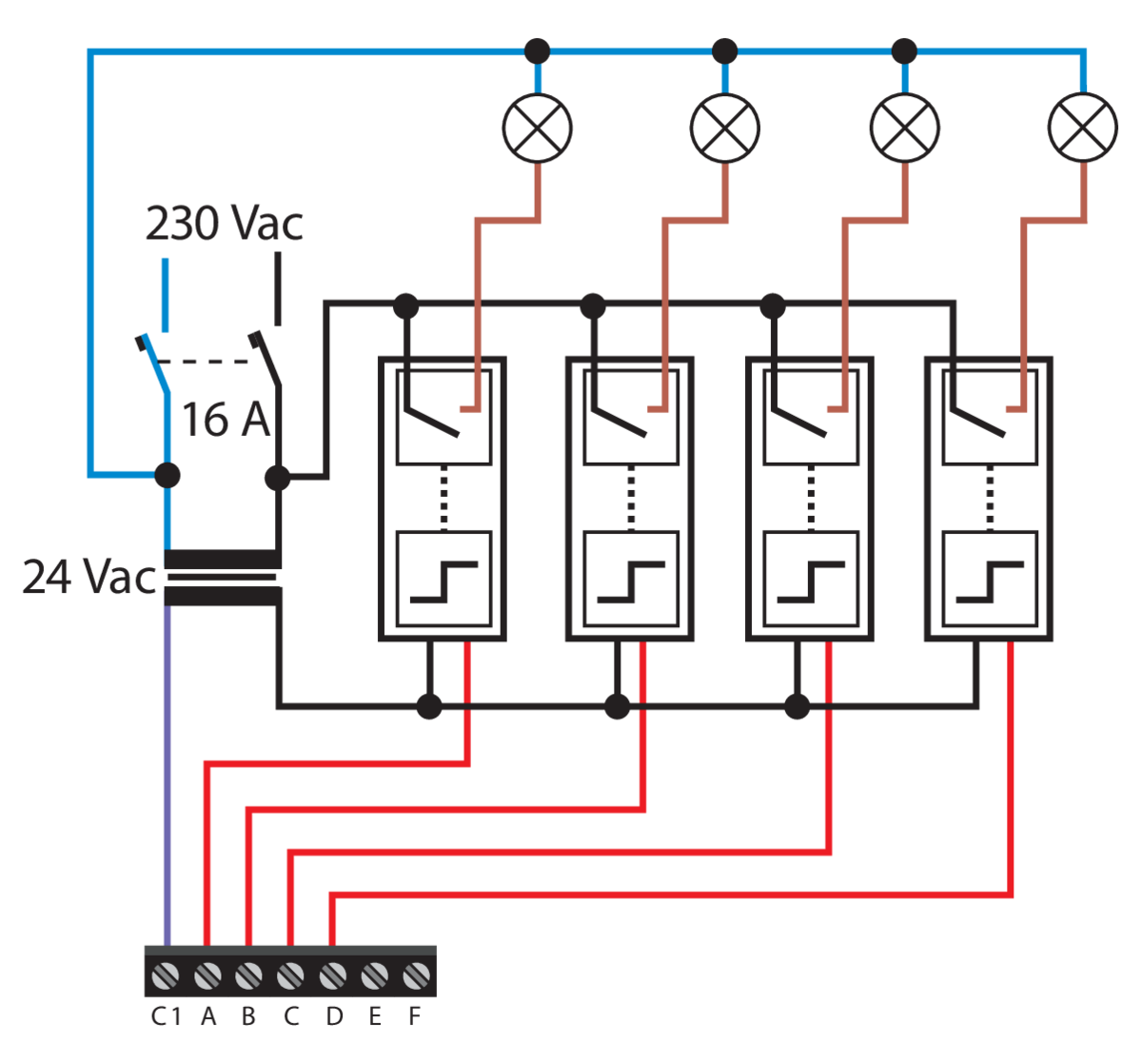

Controlling 4 light circuits from 1 place

https://dam.nikocdn.eu/asset/175422/guideImage/BW_170-60050_TG_002.png

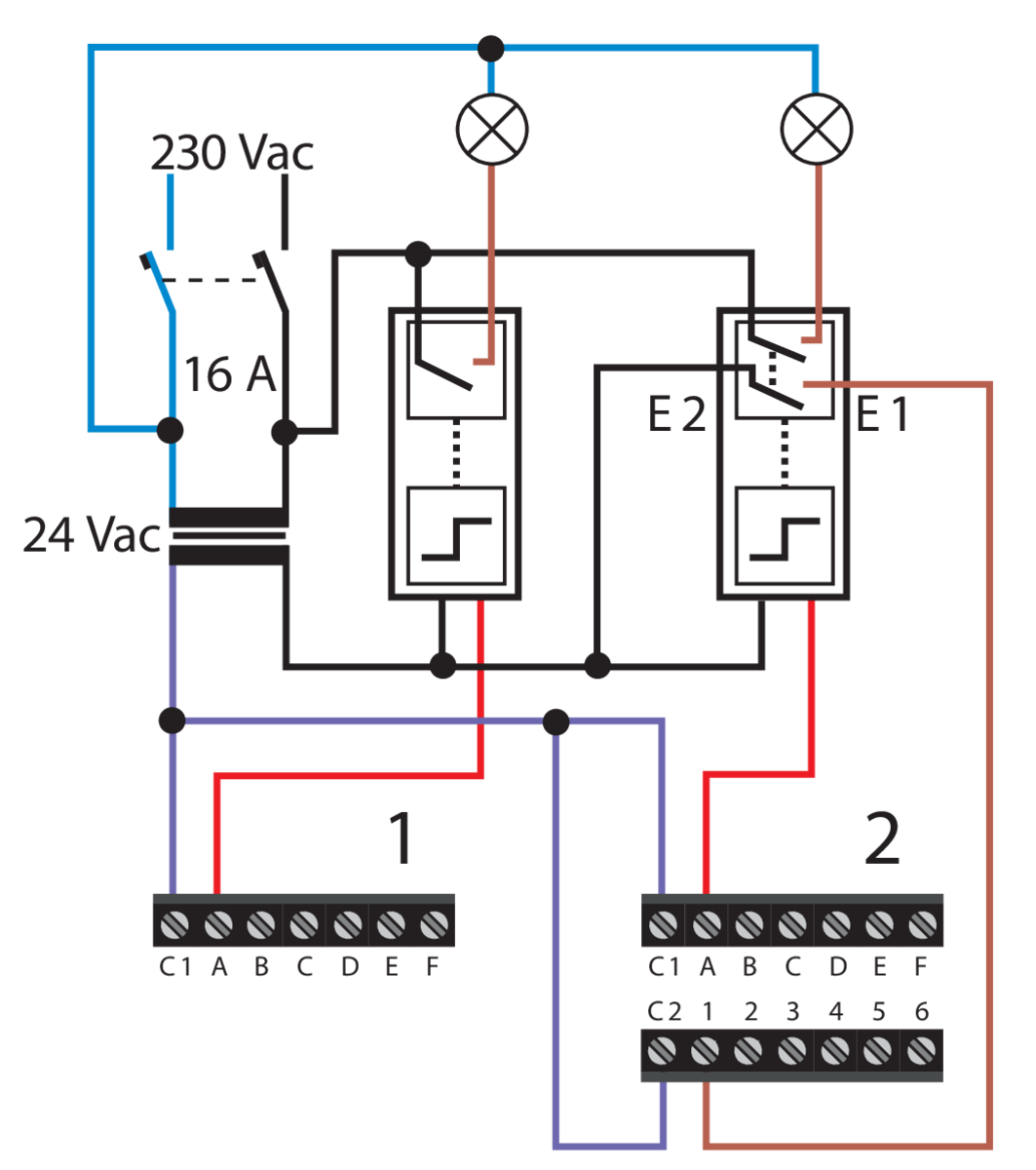

Controlling light circuits from 1 place: 1= without feedback, 2= with feedback

https://dam.nikocdn.eu/asset/175421/guideImage/BW_170-60050_TG_003.png

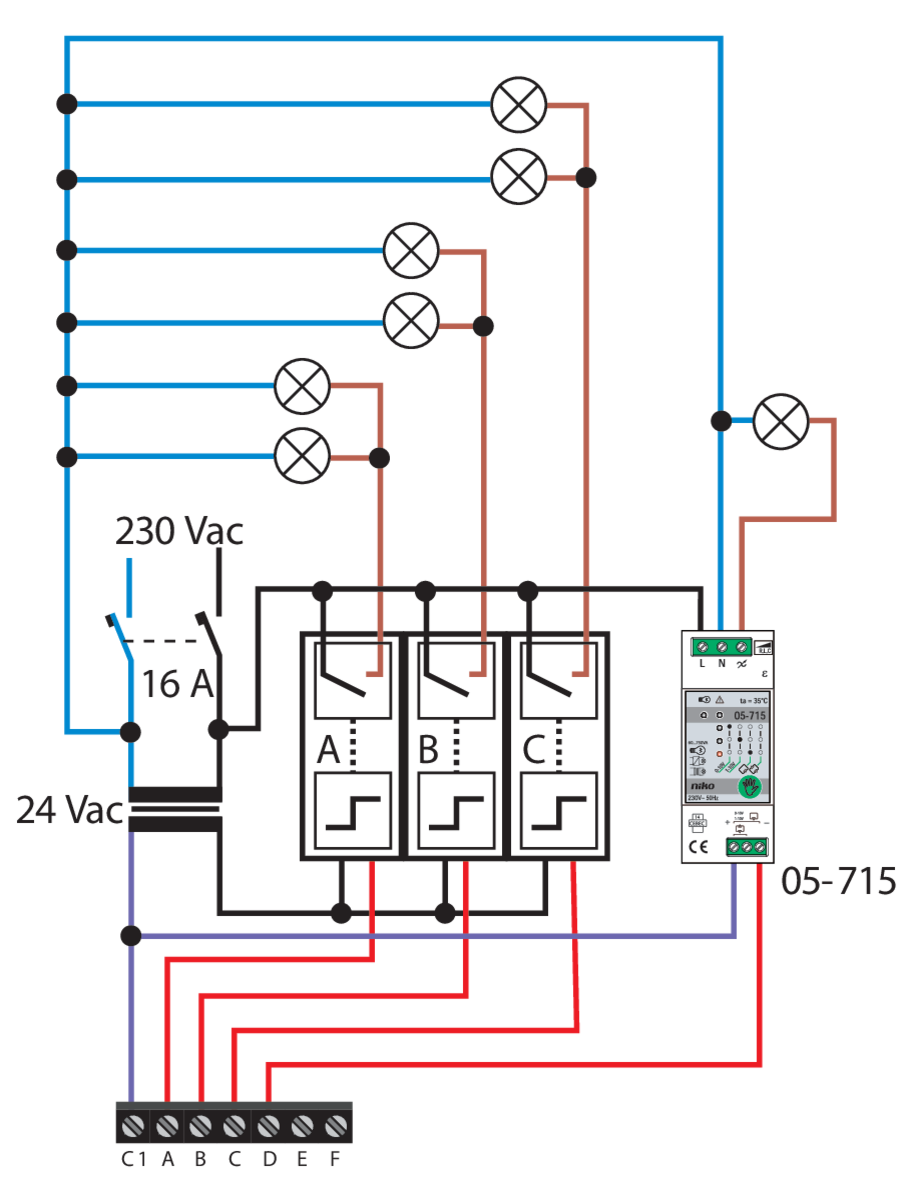

Controlling 4 light circuits, 1 of which can be dimmed, from 1 place

https://dam.nikocdn.eu/asset/175424/guideImage/BW_170-60050_TG_004.png

Product information

This online manual applies to the product(s) listed below.

Look up the article numbers on products.niko.eu to find detailed specifications, compatible articles, certificates, CE-marking, availability information, etc.

Please note that some of the products may not be available in your region.


  • 170-40050 | 4-fold base, claw fixing, 60 mm centre distance

  • 170-40051 | 4-fold base, screw fixing, 60 mm centre distance

  • 170-47050 | 4-fold base, claw fixing, 71 mm centre distance

  • 170-47051 | 4-fold base, screw fixing, 71 mm centre distance

  • 170-40150 | 4-fold base with amber LED, claw fixing, 60 mm centre distance

  • 170-40151 | 4-fold base with amber LED, screw fixing, 60 mm centre distance

  • 170-47150 | 4-fold base with amber LED, claw fixing, 71 mm centre distance

  • 170-47151 | 4-fold base with amber LED, screw fixing, 71 mm centre distance

  • 170-40160 | 4-fold base with blue LED, claw fixing, 60 mm centre distance

  • 170-40161 | 4-fold base with blue LED, screw fixing, 60 mm centre distance

  • 170-47160 | 4-fold base with blue LED, claw fixing, 71 mm centre distance

  • 170-47161 | 4-fold base with blue LED, screw fixing, 71 mm centre distance

  • 170-40170 | 4-fold base with white LED, claw fixing, 60 mm centre distance

  • 170-40171 | 4-fold base with white LED, screw fixing, 60 mm centre distance

  • 170-47170 | 4-fold base with white LED, claw fixing, 71 mm centre distance

  • 170-47171 | 4-fold base with white LED, screw fixing, 71 mm centre distance

  • XXX-40050 | 4-fold finishing set

  • XXX-40150 | 4-fold finishing set with LEDs

  • XXX-40350 | 4-fold finishing set with LEDs and text field

  • 170-60050 | 6-fold base, claw fixing, 60 mm centre distance

  • 170-60051 | 6-fold base, screw fixing, 60 mm centre distance

  • 170-67050 | 6-fold base, claw fixing, 71 mm centre distance

  • 170-67051 | 6-fold base, screw fixing, 71 mm centre distance


  • 170-60150 | 4-fold base with amber LED, claw fixing, 60 mm centre distance

  • 170-60151 | 4-fold base with amber LED, screw fixing, 60 mm centre distance

  • 170-67150 | 4-fold base with amber LED, claw fixing, 71 mm centre distance

  • 170-67151 | 4-fold base with amber LED, screw fixing, 71 mm centre distance

  • 170-60160 | 4-fold base with blue LED, claw fixing, 60 mm centre distance

  • 170-60161 | 4-fold base with blue LED, screw fixing, 60 mm centre distance

  • 170-67160 | 4-fold base with blue LED, claw fixing, 71 mm centre distance

  • 170-67161 | 4-fold base with blue LED, screw fixing, 71 mm centre distance

  • 170-60170 | 4-fold base with white LED, claw fixing, 60 mm centre distance

  • 170-60171 | 4-fold base with white LED, screw fixing, 60 mm centre distance

  • 170-67170 | 4-fold base with white LED, claw fixing, 71 mm centre distance

  • 170-67171 | 4-fold base with white LED, screw fixing, 71 mm centre distance

  • XXX-60050 | 6-fold finishing set

  • XXX-60150 | 6-fold finishing set with LEDs

  • XXX-60350 | 6-fold finishing set with LEDs and text field
