LED behaviour of TYTAN® TH1

LED behaviour of fuse switch disconnector


Green LED continuous on

In operation

-

Yellow LED flashing

Thermal overload

Cool down and reset, see Maintenance and troubleshooting of TYTAN® TH1

Yellow LED continuous on

Cooled down after thermal overload

Reset, see Maintenance and troubleshooting of TYTAN® TH1


Red LED flashing

Blown fuse link

Replace fuse link, see Maintenance and troubleshooting of TYTAN® TH1

LED behaviour of main protecting relay HR11

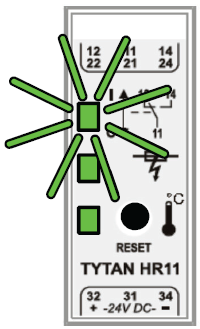

Green LED continuous on

In operation

-

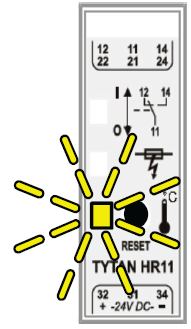

Yellow LED flashing

Thermal overload

Cool down and reset, see Maintenance and troubleshooting of TYTAN® TH1

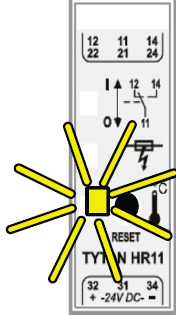

Yellow LED continuous on

Cooled down after thermal overload

Reset, see Maintenance and troubleshooting of TYTAN® TH1

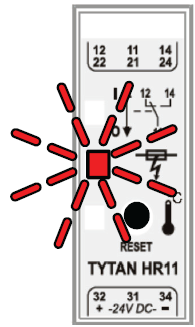

Red LED flashing

Blown fuse link

Replace fuse link, see Maintenance and troubleshooting of TYTAN® TH1
