The installation should be carried out by a qualified installer and in accordance with the regulations of the local distribution system operator.
Step 1
Click onto the DIN rail.
Pay attention to the rated diversity factor (RDF) according to IEC/EN 61439-1.
Step 2
Only use suitable wires:
-
Copper
-
Rigid, stranded or flexible
-
Cross section 1,5 – 35 mm2
Strip the wires. Use ferrules for flexible wires.
Step 3
Optionally, connect the main protection relay and up to 12 fuse switch disconnectors, using TYTAN® HC bus cables (961-9620300).
Feed the main wires at the bottom of the fuse switch disconnector and the consumption at the top. Secure with 3 Nm, using a PZ2 screw driver.
Use the wiring diagram to connect the wires correctly. For the maximum number of wires that can be connected, refer to the table below.
Step 4
Remove the placeholder and insert the fuse link.

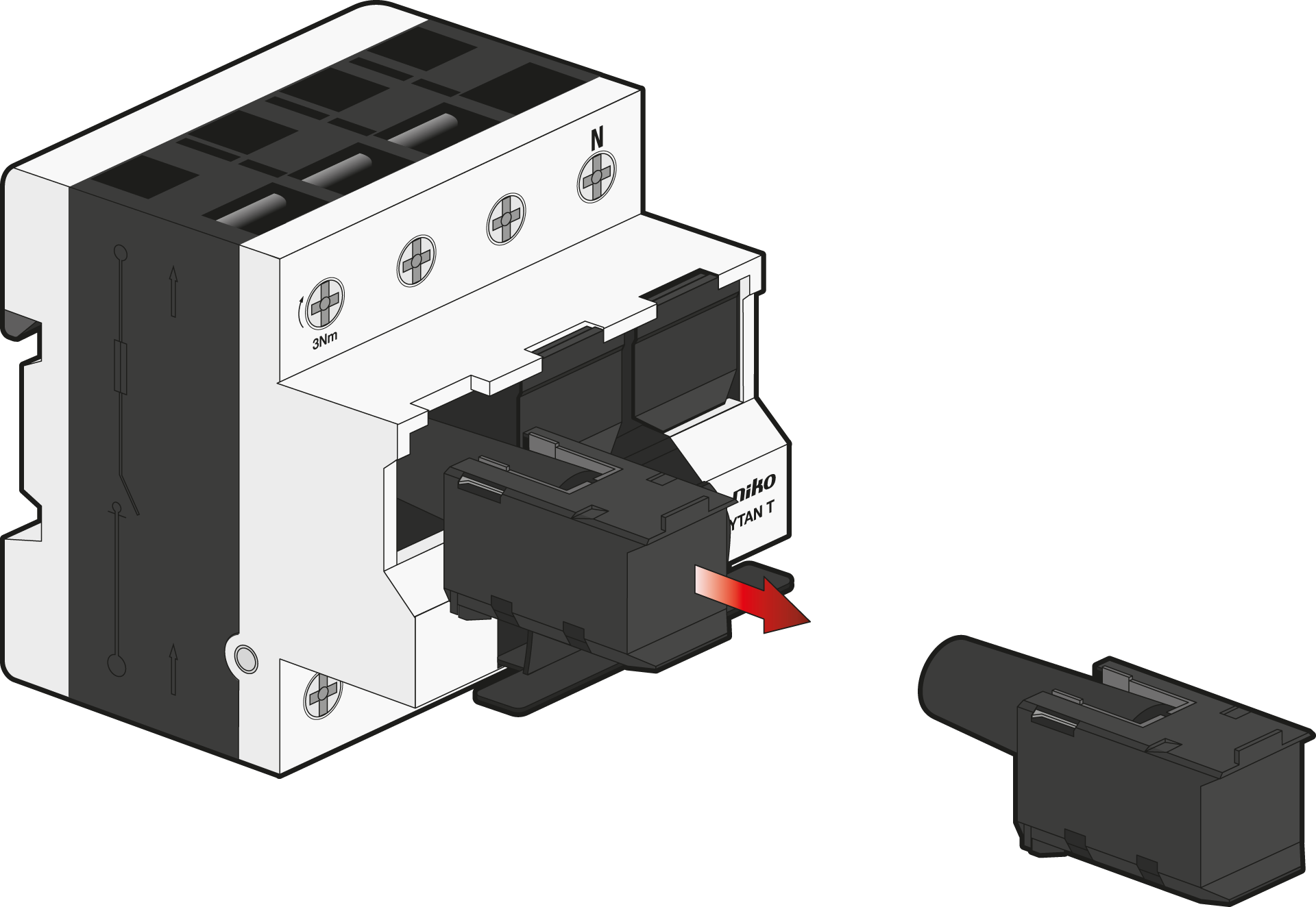

4.1 Remove the placeholder.

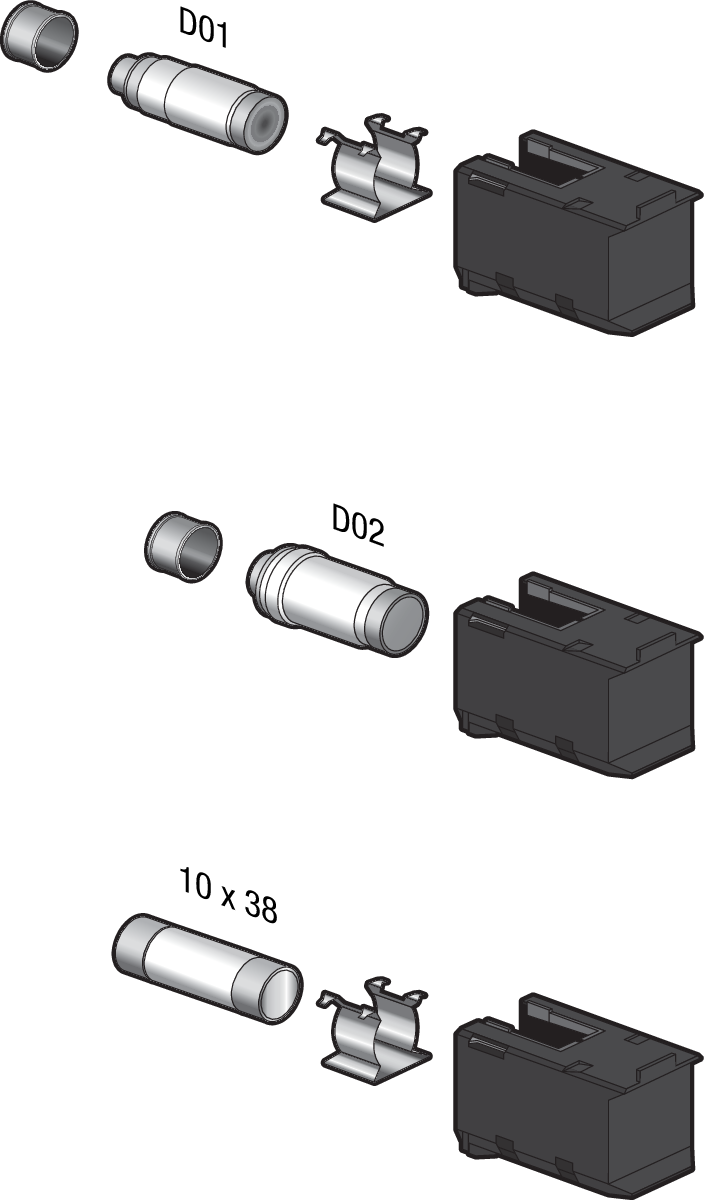

4.2 Depending on the chosen fuse link, insert the appropriate gauge ring.

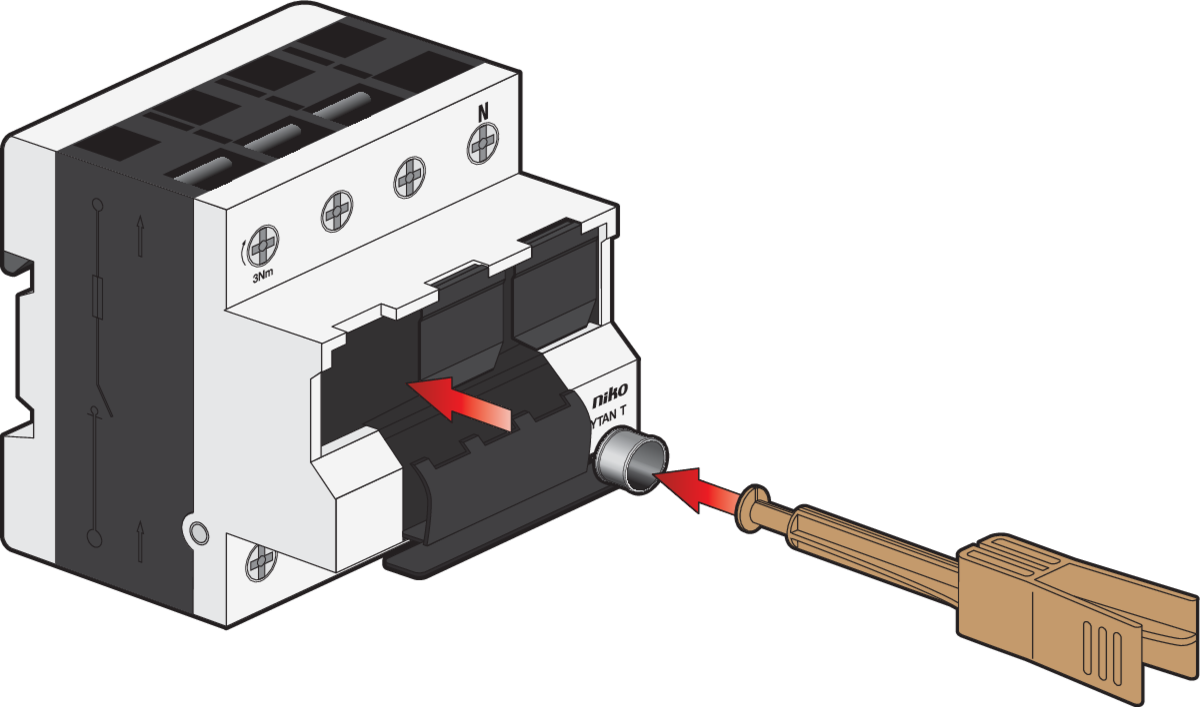

Use the fitting tool to insert the correct ring. The gauge ring differs when using a D01 or D02 fuse link and adapter spring.
Step 5
Assemble the fuse link.
Step 6

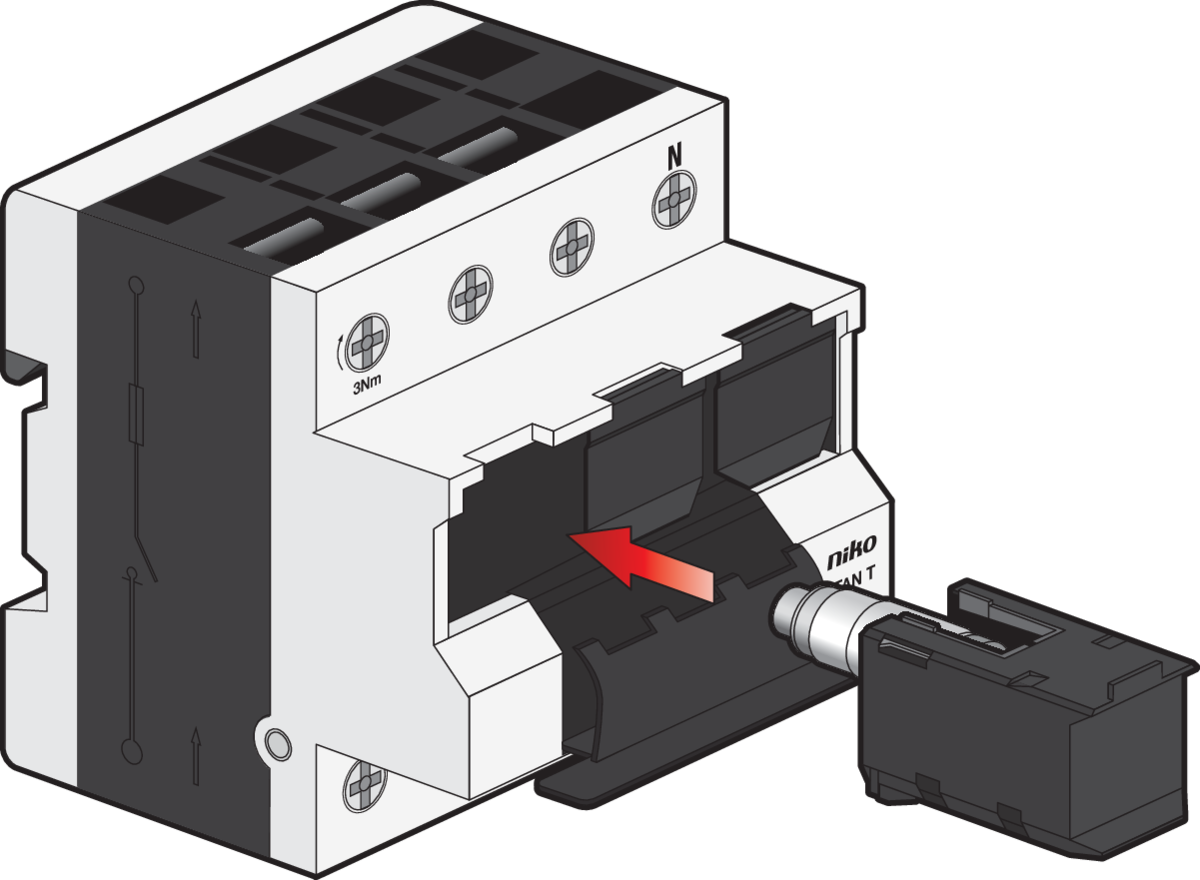

Insert the fuse link.
Step 7
Switch ON.
Step 8
Check the fuse within 24 hours after switching ON:
-
The average operation temperature must be less or equal to 35 °C.
-
The terminals must remain secured at 3 Nm.
