Forbindelsesskema for TYTAN® I

Referencenummer

Anal poler

Forbindelsesskema

961-0110300

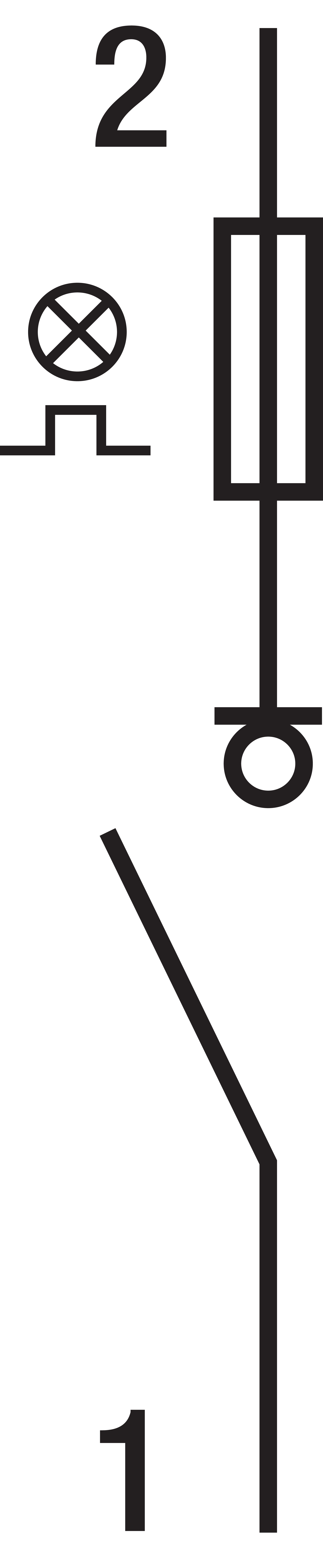

1P

https://s3-eu-west-1.amazonaws.com/guideimages/Manuals/Tytan/961-0X10300_WIR_001.png

961-0160300

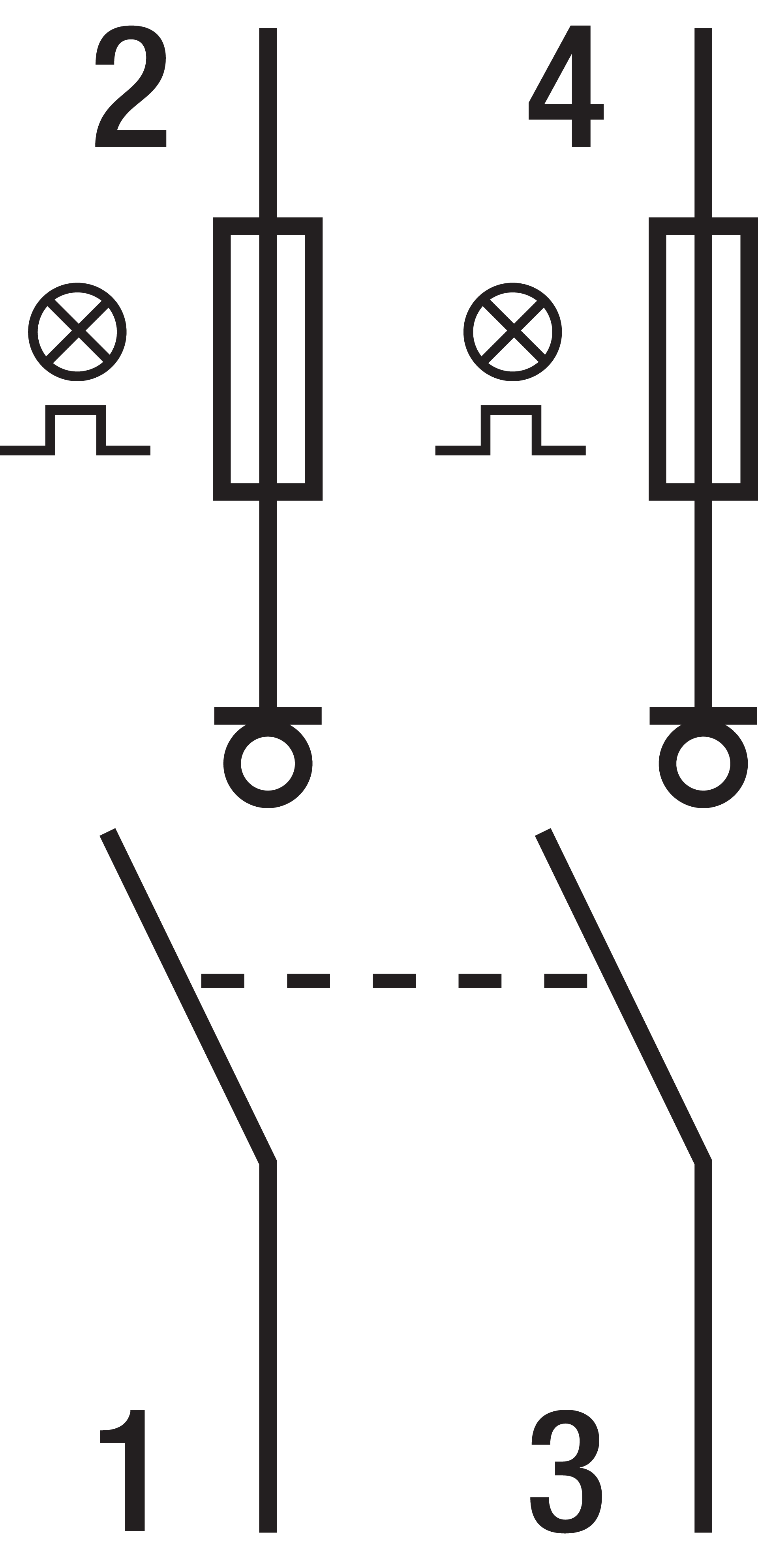

2P

https://s3-eu-west-1.amazonaws.com/guideimages/Manuals/Tytan/961-0X60300_WIR_001.png

961-0130300

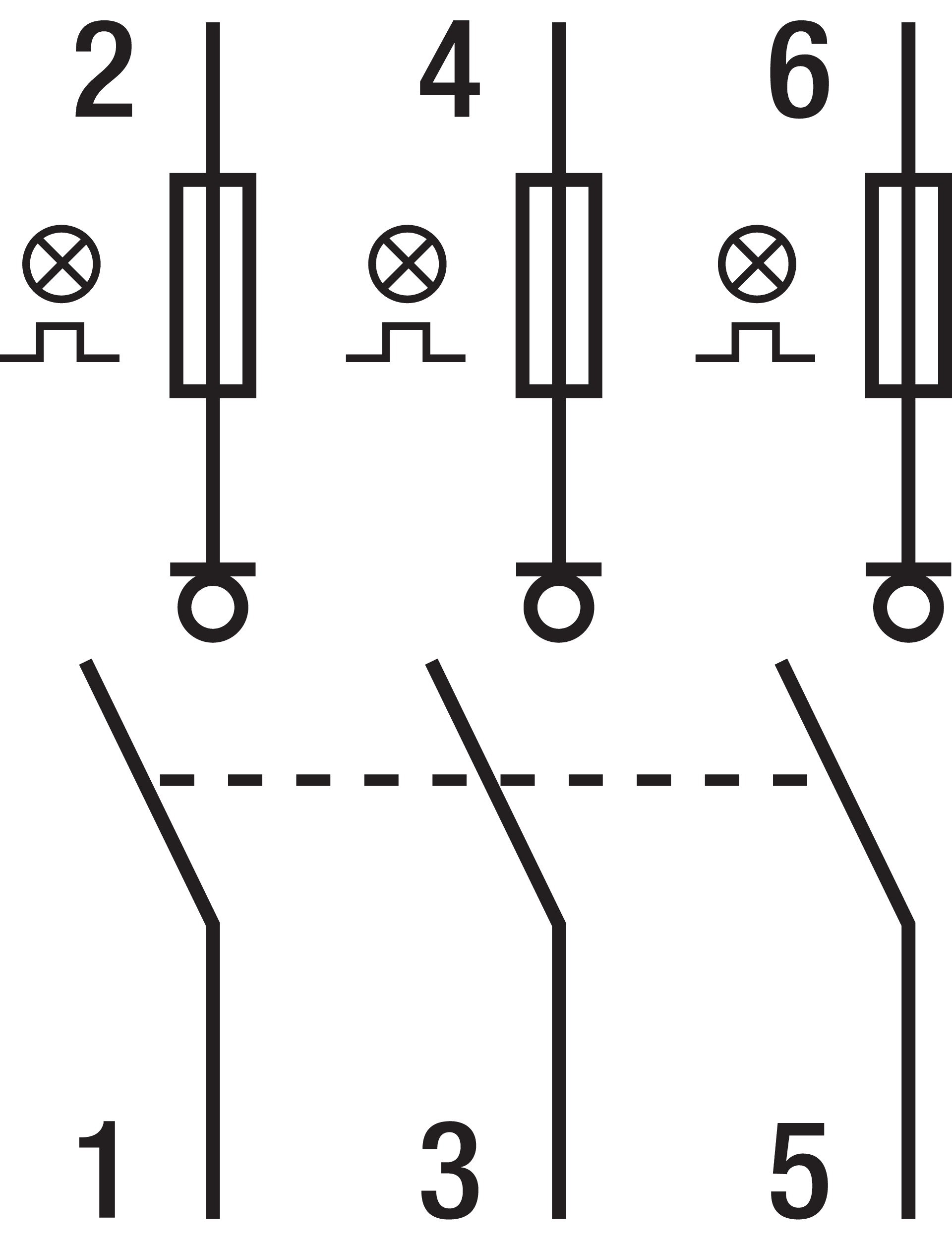

3P

https://s3-eu-west-1.amazonaws.com/guideimages/Manuals/Tytan/961-0X30300_WIR_001.png

961-0120300

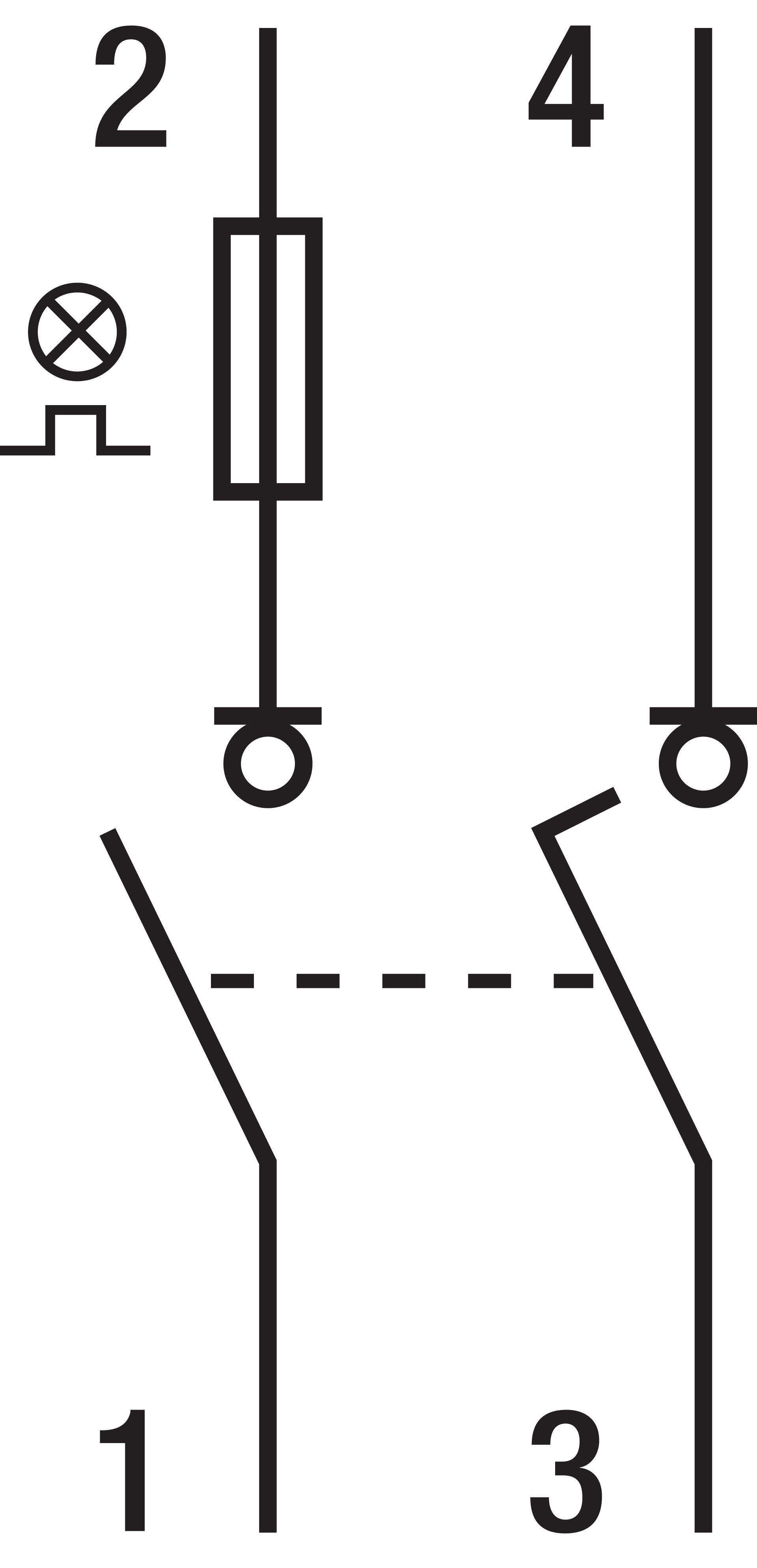

1P+N

https://s3-eu-west-1.amazonaws.com/guideimages/Manuals/Tytan/961-0X20300_WIR_001.png

961-0140300

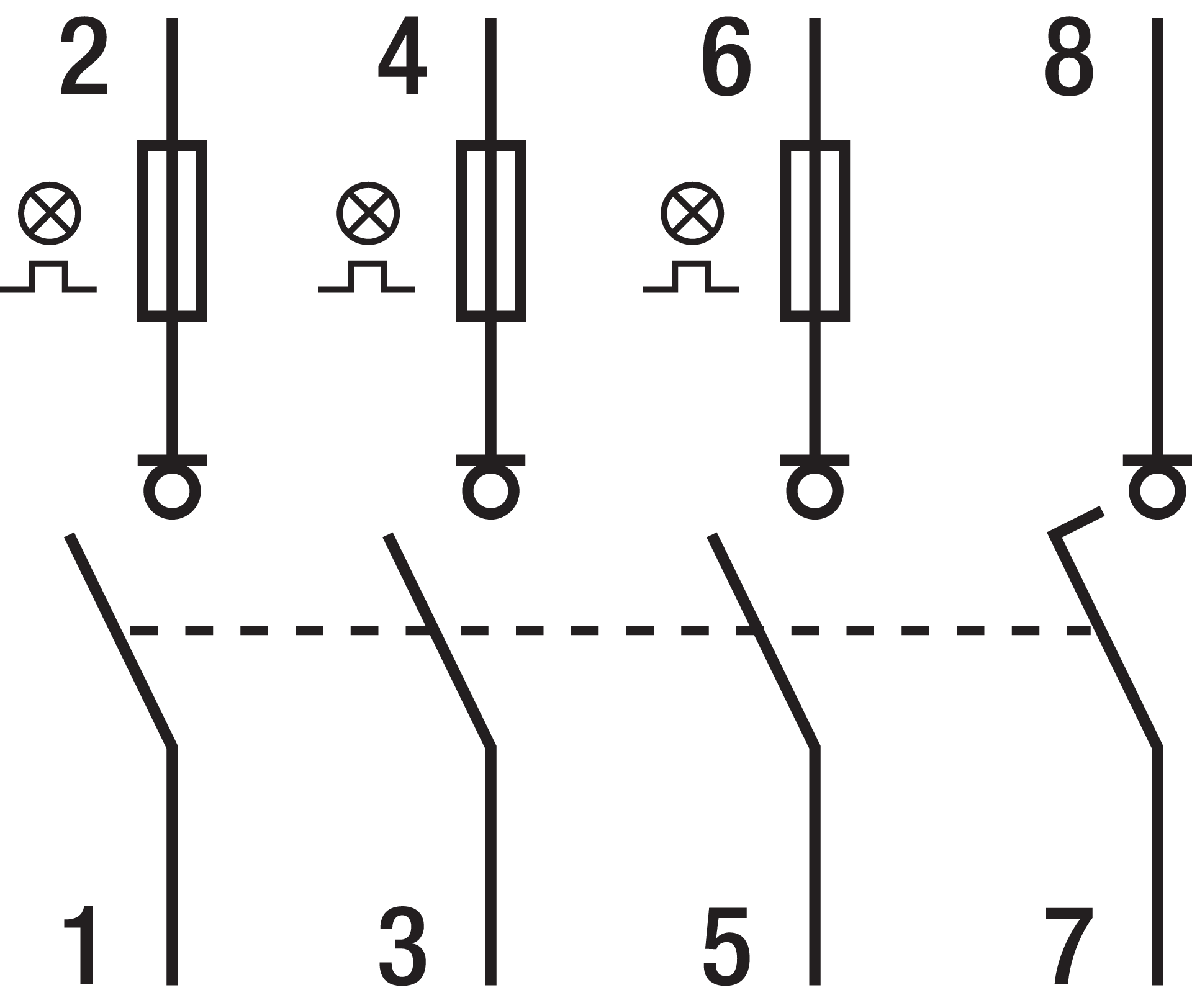

3P+N

https://s3-eu-west-1.amazonaws.com/guideimages/Manuals/Tytan/961-0X40300_WIR_001.png

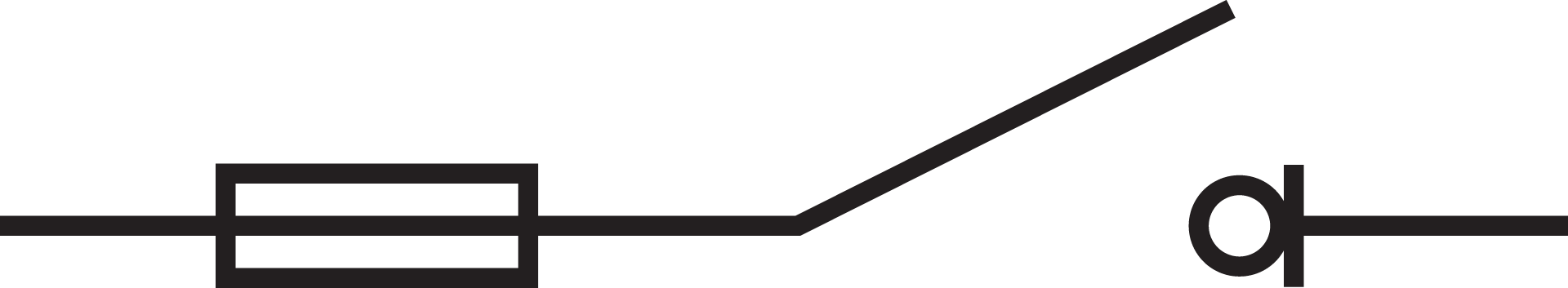

Gruppeafbryder med en enkelt kontakt i henhold til IEC 60947-3:

https://s3-eu-west-1.amazonaws.com/guideimages/Manuals/Tytan/SingleOpeningIEC60947-3.png


Sørg for at tilslutte gruppeafbryderen korrekt. Belastningssiden (afgangen) er den side, hvor sikringerne er tilsluttet installation (foroven). Forsyningssiden er den side, hvor forsyningen tilsluttes (for neden).

Fejltilslutning kan medføre risiko for elektrisk stød.
