List of symbols
Inputs
| single push button with or without LED |
| double push button with LEDs double Easywave push button |
| four-fold push button with or without LEDs four-fold Easywave push button ventilation control |
| six-fold push button with or without LEDs |
| eight-fold Easywave push button |
| enkelvoudige dimbediening met of zonder leds enkelvoudige motorsturingsbediening met of zonder leds |
| single dimming control with or without LEDs single motor control with or without LEDs |
| eco-display |
| mood control |
| mini detector |
| indoor motion detector |
| outdoor motion detector |
| Nikobus input |
| digital sensor connection to external system |
| Easywave hand-held transmitter, 1 channel, 1 control button |
| Easywave hand-held transmitter, 1 channel, 4 control buttons |
| Easywave hand-held transmitter, 5 channels, 3 control buttons |
| touchscreen |
| smartphone |
Outputs
| roll-down shutter |
| sun blinds |
| awning |
| gate |
| switched socket outlet |
| light dimmable light analogue output |
| central ventilation system |
| switched ventilator |
| other switched devices |
| thermostat |
| HVAC thermostat |
| Nikobus output |
| virtuele output |
Time automation
| calendar-controlled |
| automatic stopping |
| automatic restarting |
Conditions
| time conditions |
| analogue precipitation sensor |
| analogue wind sensor |
| analogue humidity sensor |
| analogue light sensor |
| analogue temperature sensor |
| analogue CO2 sensor |
Status of the action
| standard lamp switched socket outlet switched ventilator other switched devices | on or off |
   | dimmable light analogue output | • possible values between 0% and 100%, in increments of 10% • yellow circle in the background follows the value |
| central ventilation system | • possible values: low, normal, high, boost • blue circle in the background follows the value |

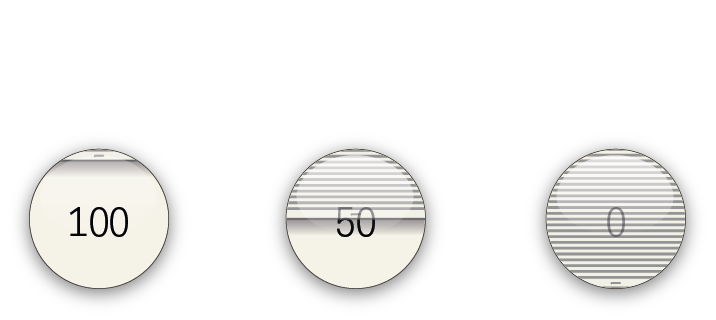

| roll-down shutter gate | • possible values between 0% and 100%, in increments of 10% • value in the symbol indicates the position of the roll-down shutter |

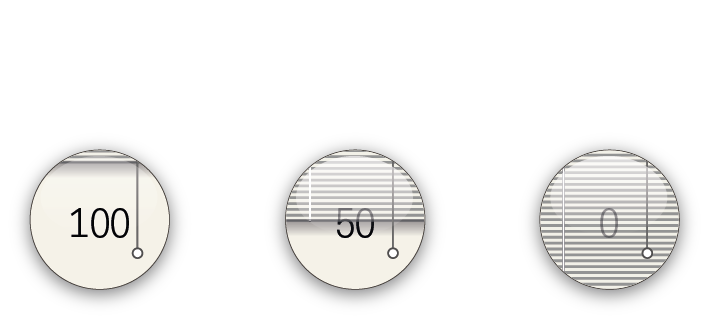

| sun blinds awning | • possible values between 0% and 100%, in increments of 10% • value in the symbol indicates the position of the sun blinds/awning |

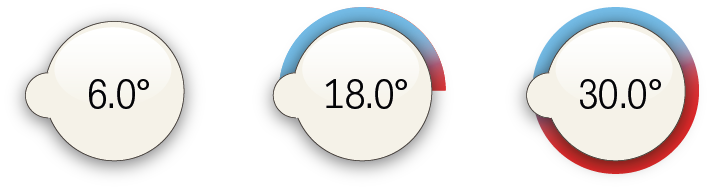

| thermostat | • possible values between 6°C and 30°C, in increments of 0.5°C • bicoloured circle in the background follows the value |
