410-00335

Table of contents

Description

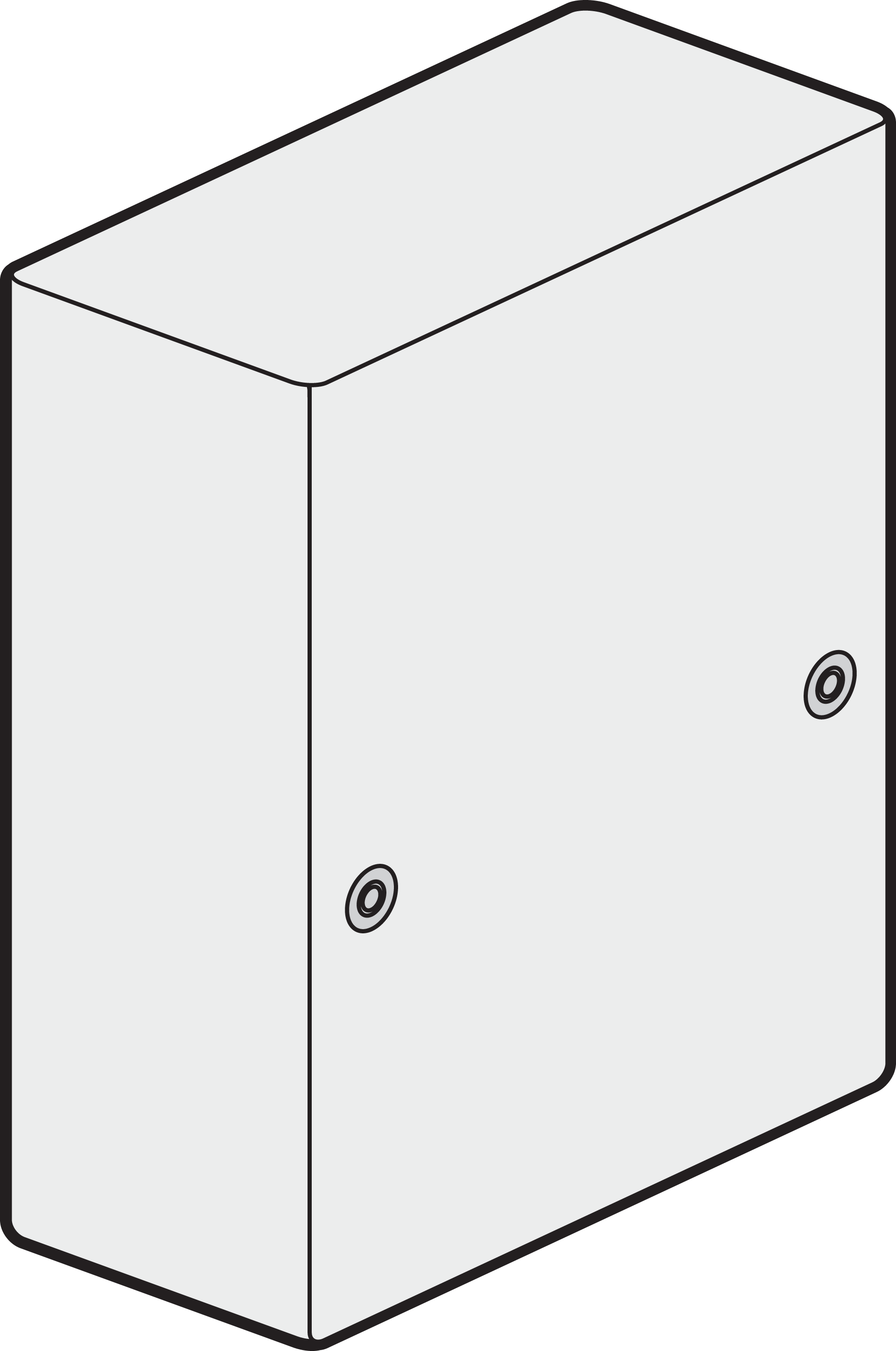

This surface-mounted receiver allows controlling low-voltage devices using a wireless Easywave button or a wired button. This receiver has two potential-free changeover relay contacts, only suitable for switching devices with safety extra low voltage (SELV).
It can receive signals from a Niko Easywave hand-held transmitter and/or wireless switch. For local operation, up to two external wired buttons can be connected.
Up to 32 transmission codes can be programmed into the receiver. The receiver is equipped with either 1-button operation (PULSE, DEAD MAN), 2-button operation (ON/OFF, UP/DOWN), 3-button operation (UP/STOP/DOWN) or 4-button operation (UP/STOP/DOWN/STOP).

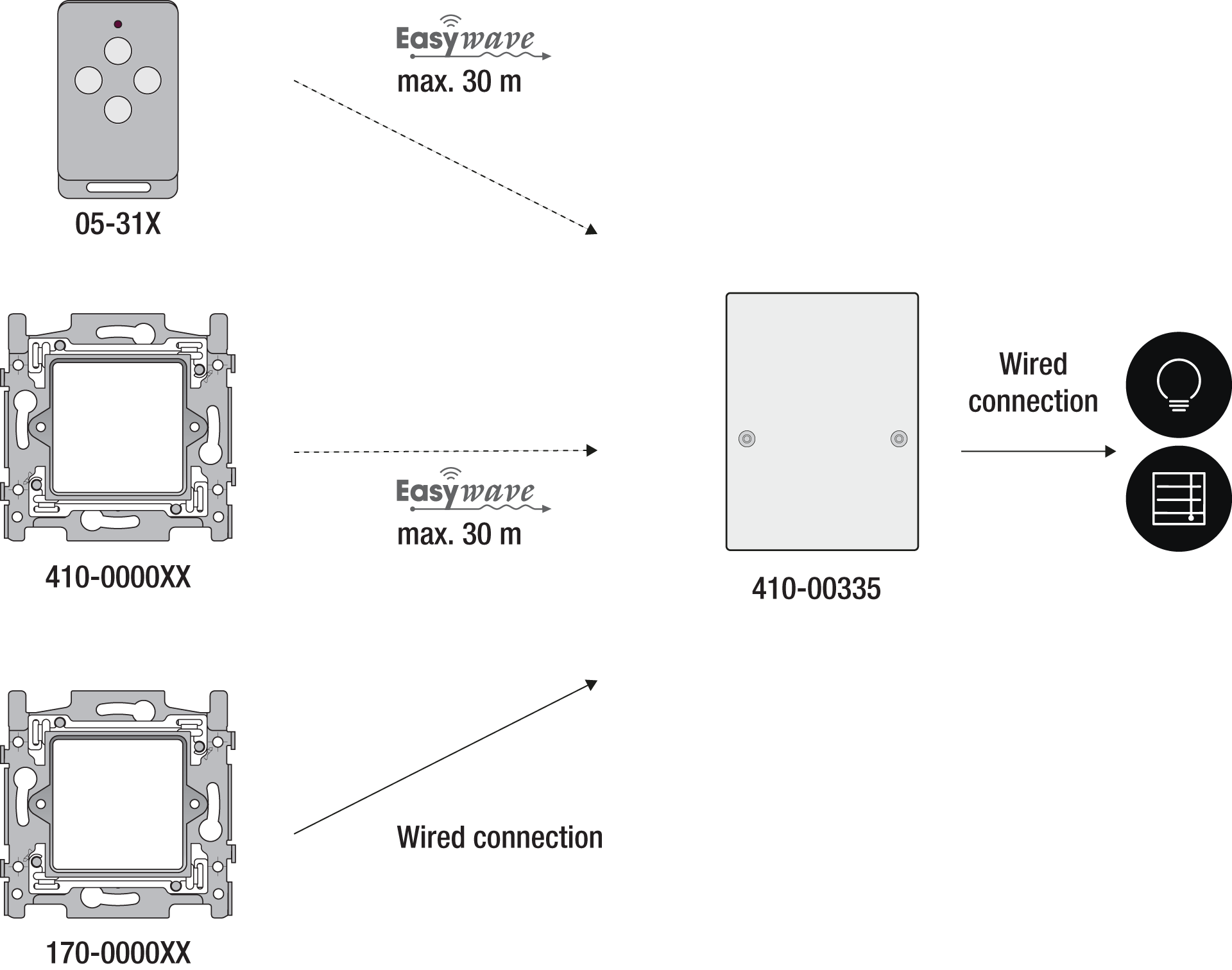

Compatible products

• This product can be wirelessly controlled from a Niko Easywave hand-held transmitter (05-31X) and/or wireless push button (410-0000X). For local operation, external buttons can be connected.

• This product can be installed behind a Niko blind plate (XXX-76900) or external wired push button (e.g. 170-0000X) in the colour of your choice.

• This product is NOT compatible with Niko Home Control (550-XXXXX, 551-XXXXX, 552-XXXXX).

Installation

Power - OFF

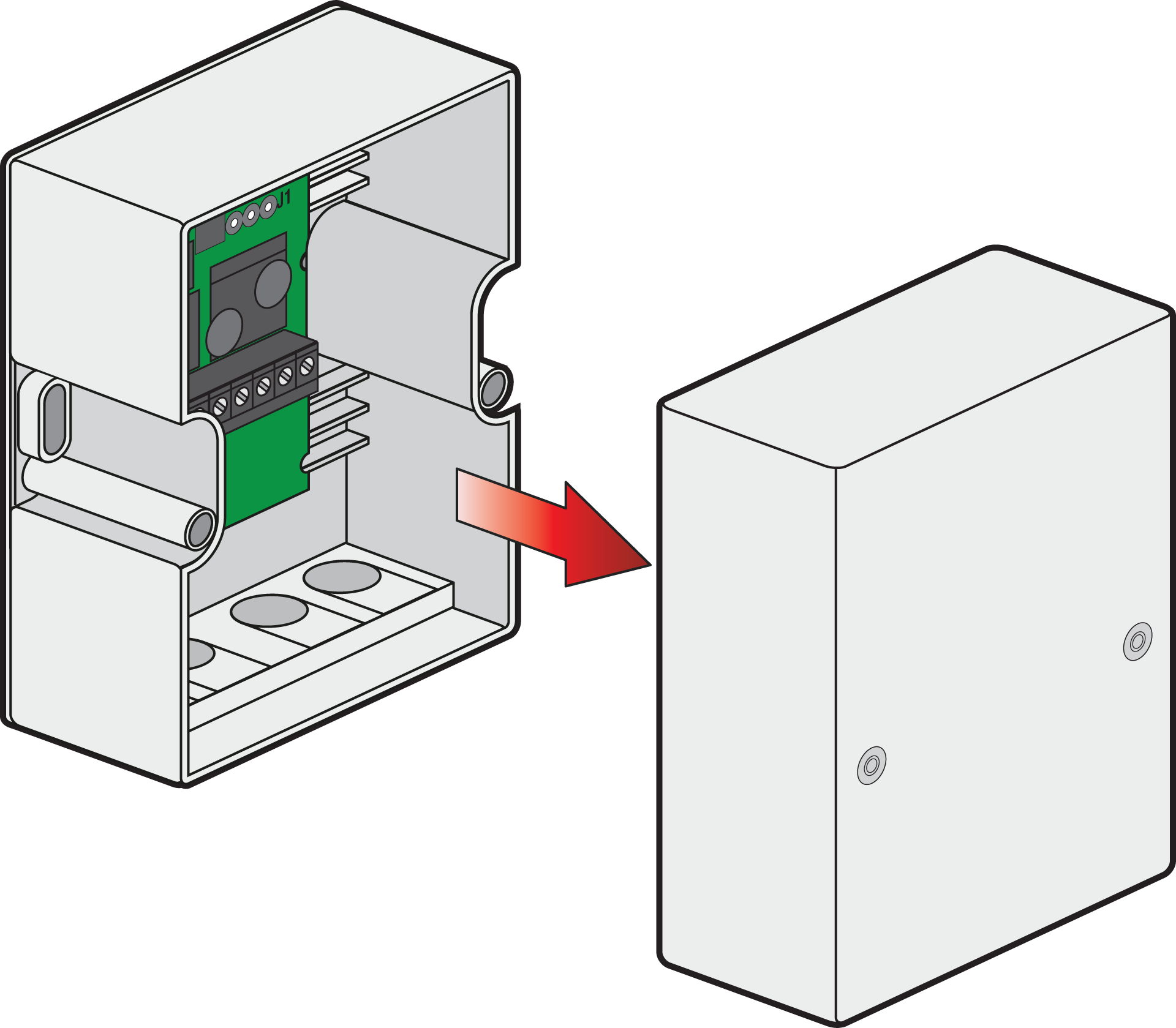

1. Remove the housing cover.




2. Mount the receiver on a suitable location, using the supplied mounting accessories.




Make sure there is no interference with the wireless connection. Do not mount the device in a distribution box, in metal casings, in direct proximity to large metal objects, on the floor or close to it.

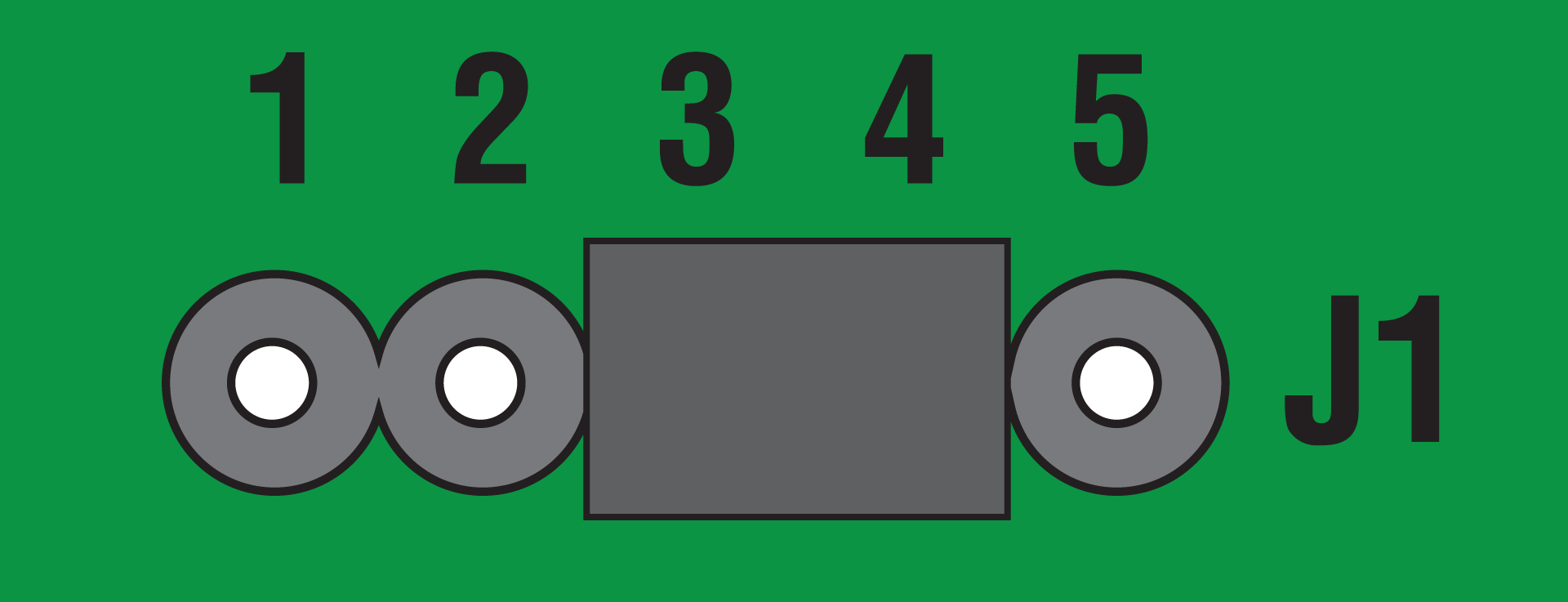

3. Select the desired operation mode with the jumper J1.

4. Either:

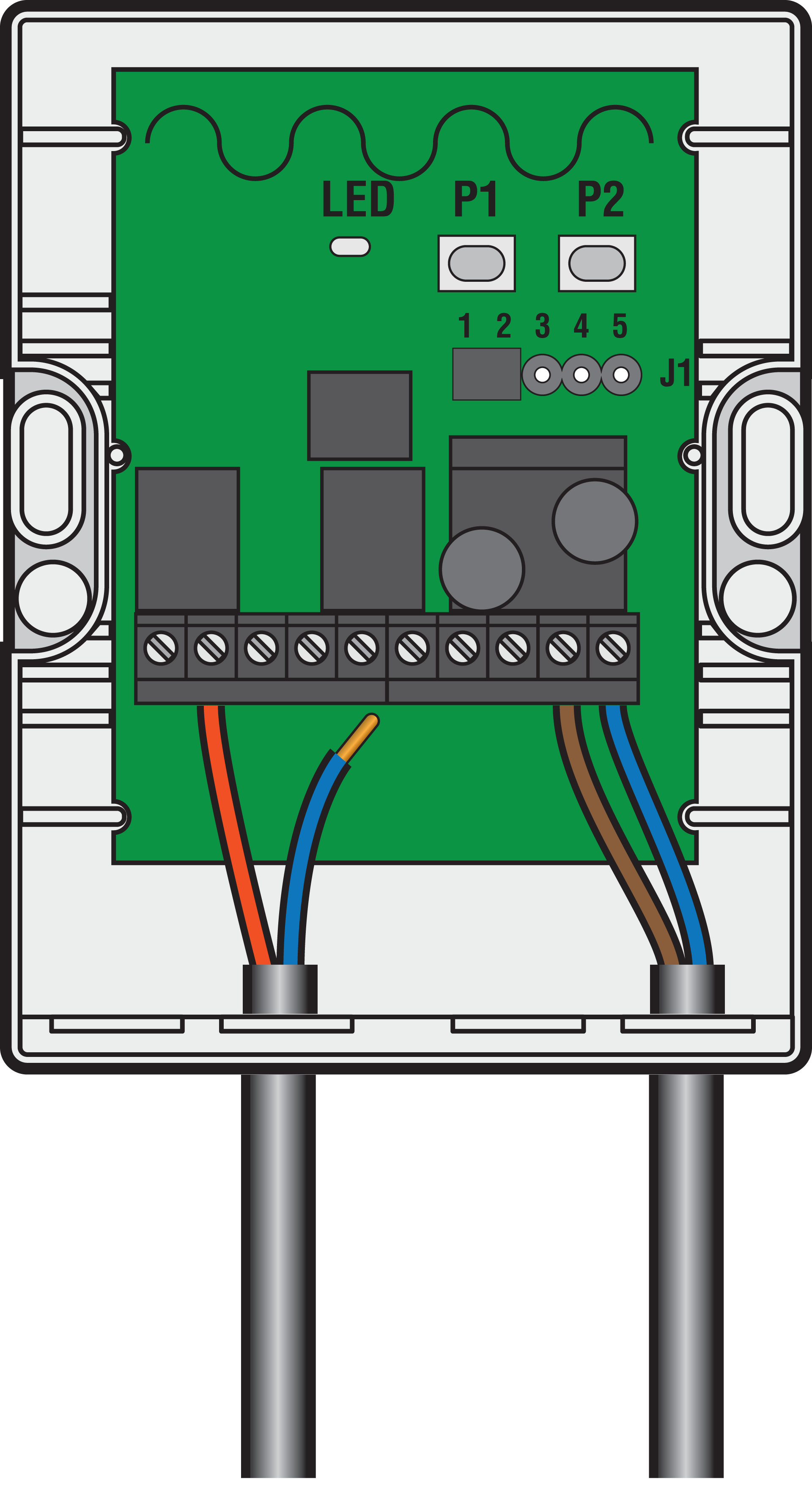

   1. Connect the supply voltage and the safety extra-low voltage devices according to the wiring diagram
      or

   2. Connect the supply voltage and the devices to be switched for the motor control according to the wiring diagram.




The maximum length of all connecting cables may not exceed 3 m.

In the operation mode MOTOR, the receiver may only be operated with 12 – 32 V DC.

5. If necessary, connect the external buttons to the terminal T1 and T2.

6. Program the codes of the transmitters to the receiver. For more information, see Programming transmitters.

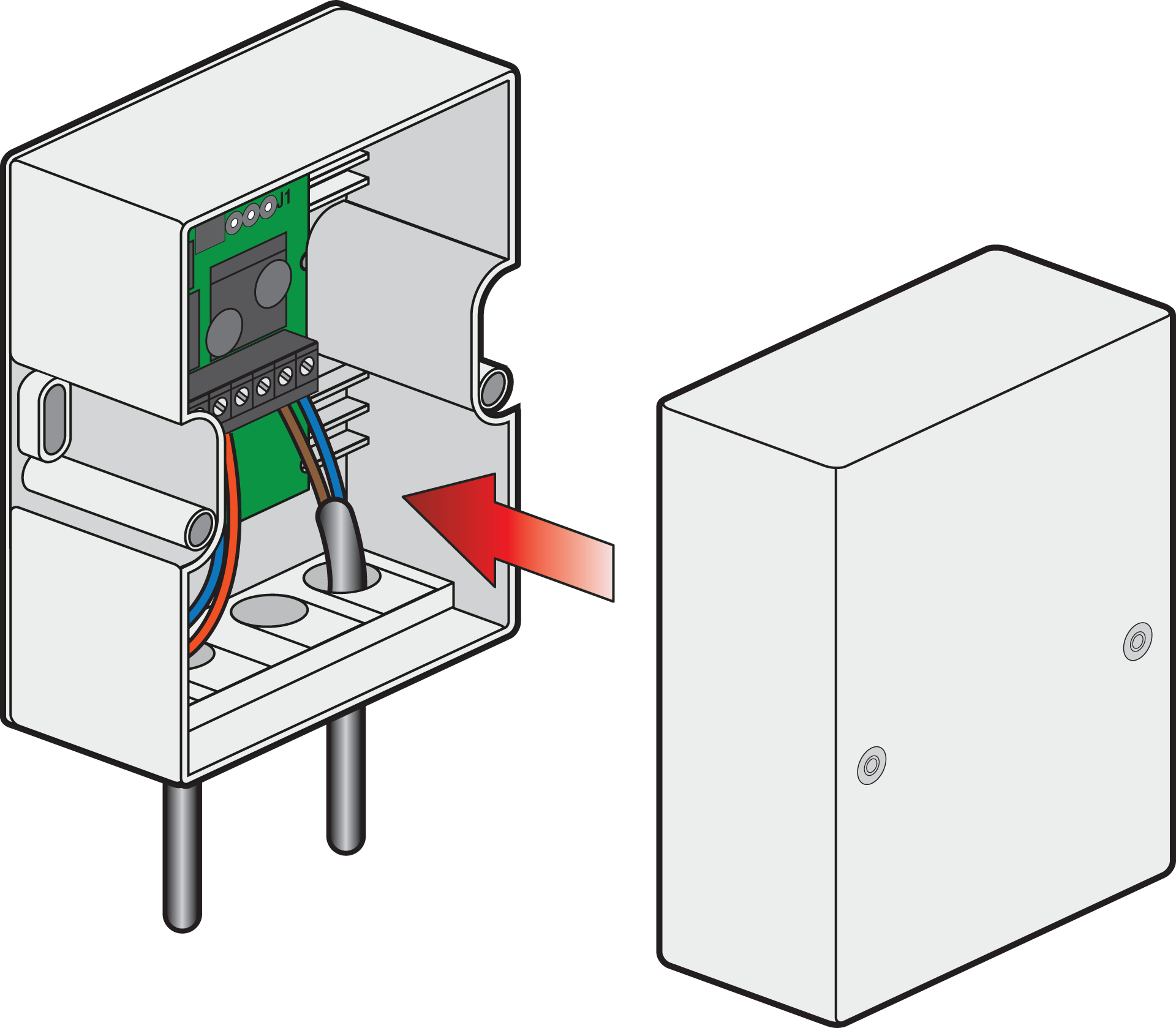

7. Put the housing cover back on.

Power - ON

Wiring

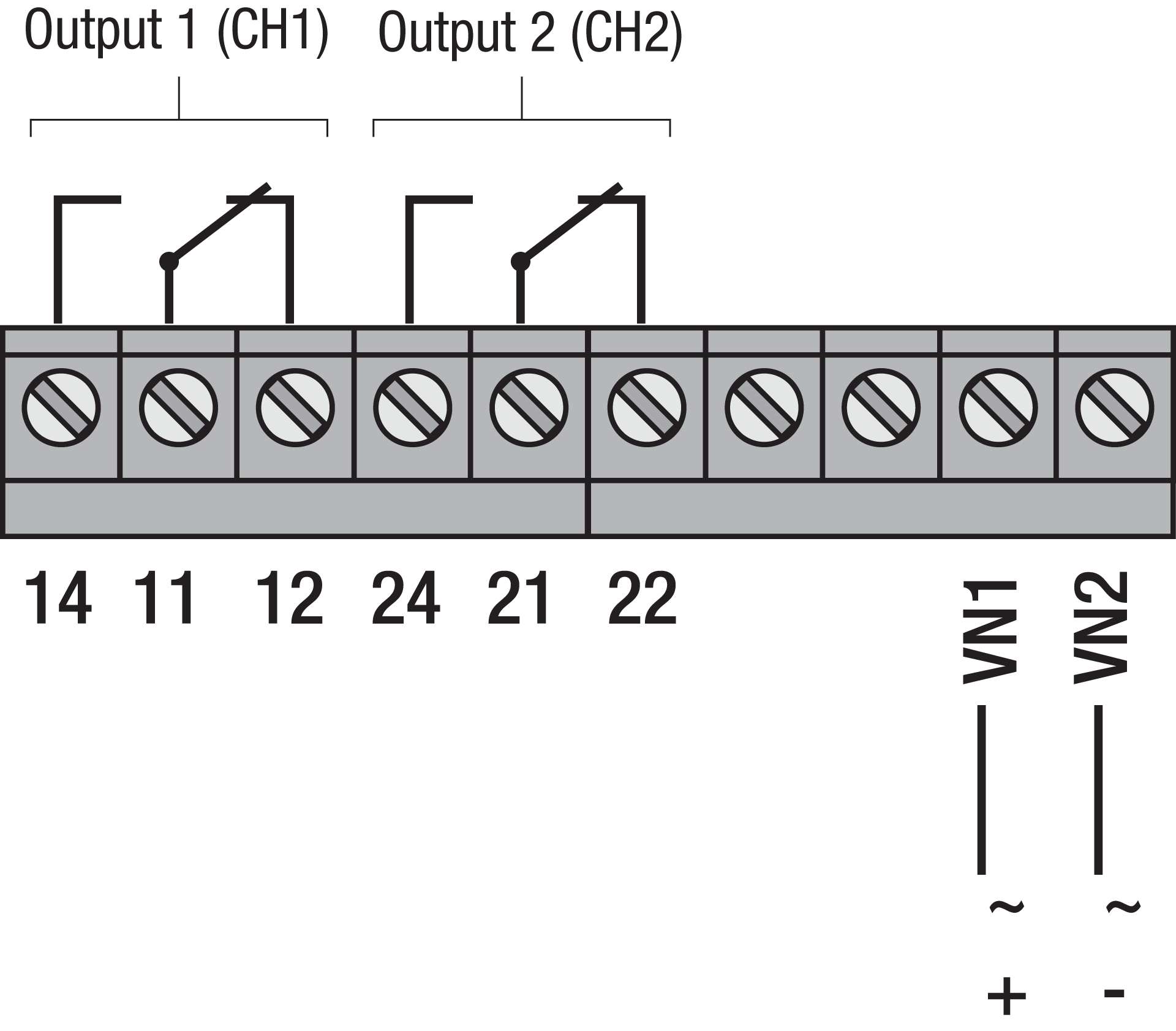

DEAD MAN, ON/OFF and PULSE

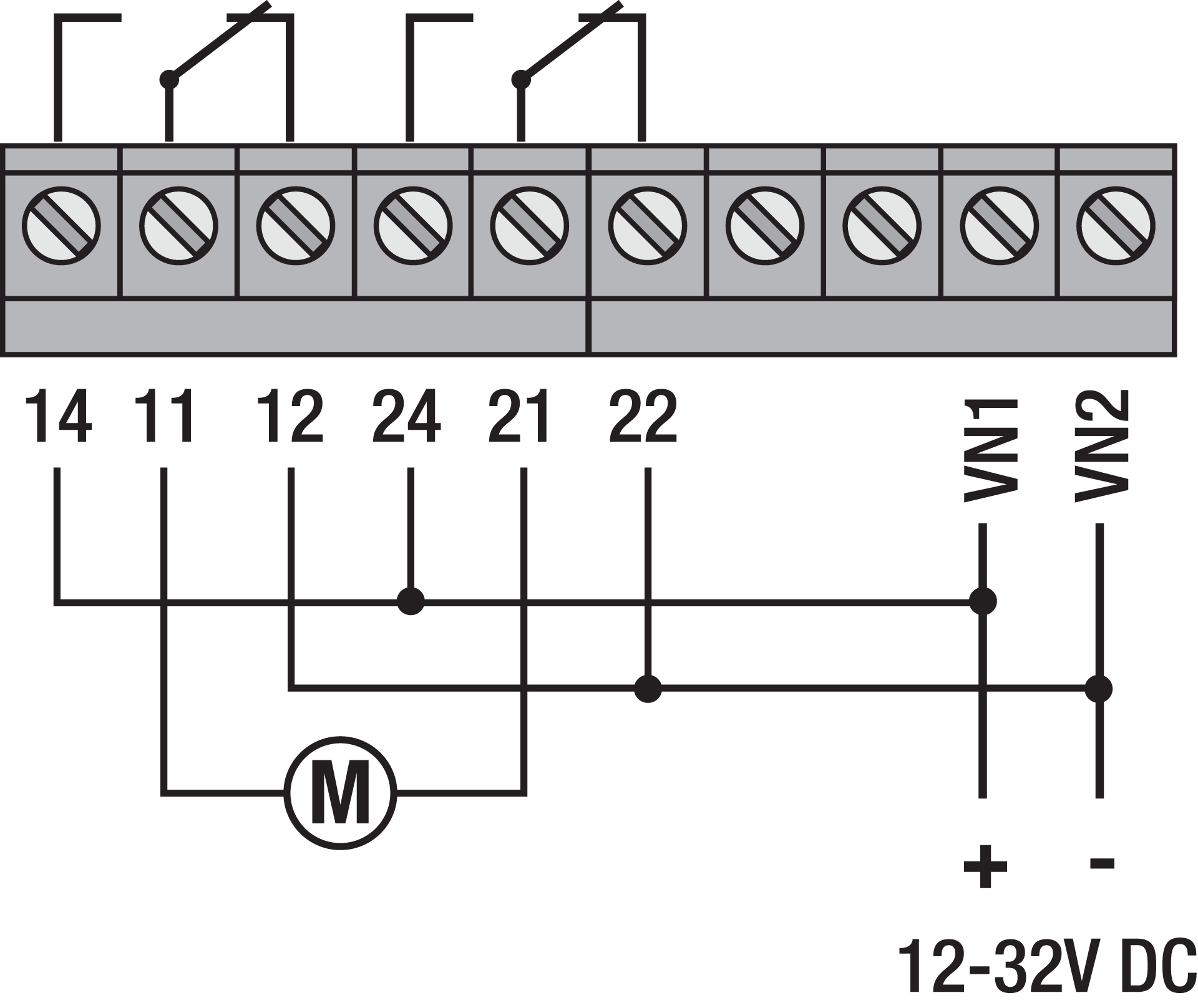

Motor control

External buttons

Operation and use

Power - ON

The radio control can be operated in five different operation modes with Easywave transmitters for 1-button, 2-button or 3-button operation. The operation mode can be selected with jumper J1.

Each wireless push button, hand-held transmitter or external wired button can be assigned its own operation mode. You can use the following buttons:

05-311	05-312	05-317	05-318	410-00001	410-00002

1-button operation

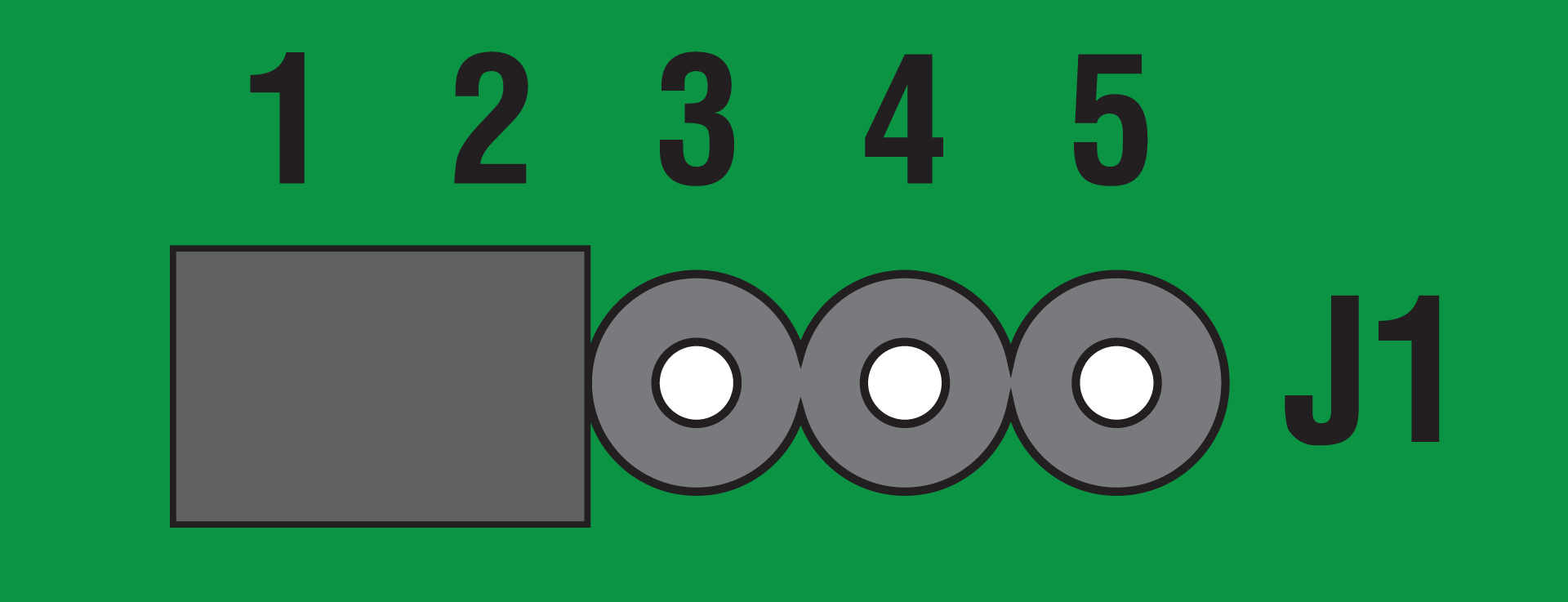

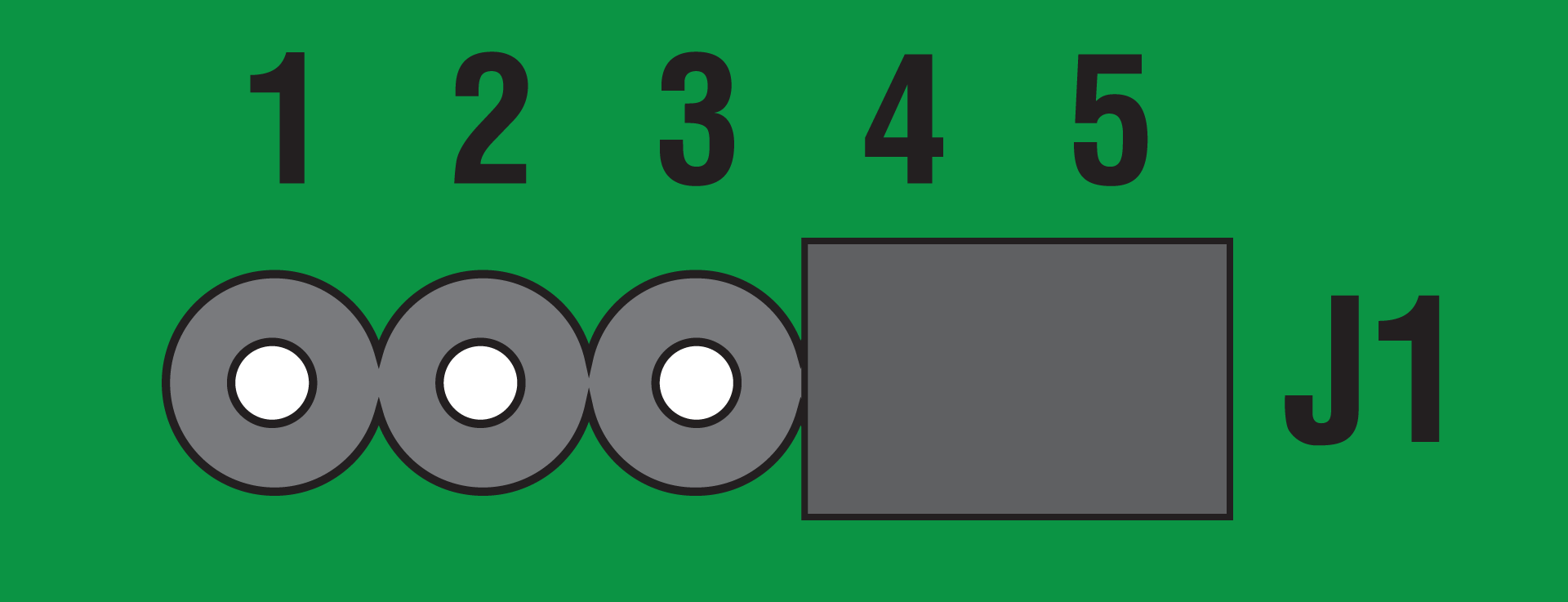

Operation mode	Jumper J1	Transmission code	Command	Extra information
PULSE		A or B or C or D	The corresponding relay is triggered for 1 second.
DEAD MAN		A or B or C or D External button T1 or T2	The corresponding relay is triggered as long as the button is pressed	The maximum runtime is 36 seconds

2-button operation

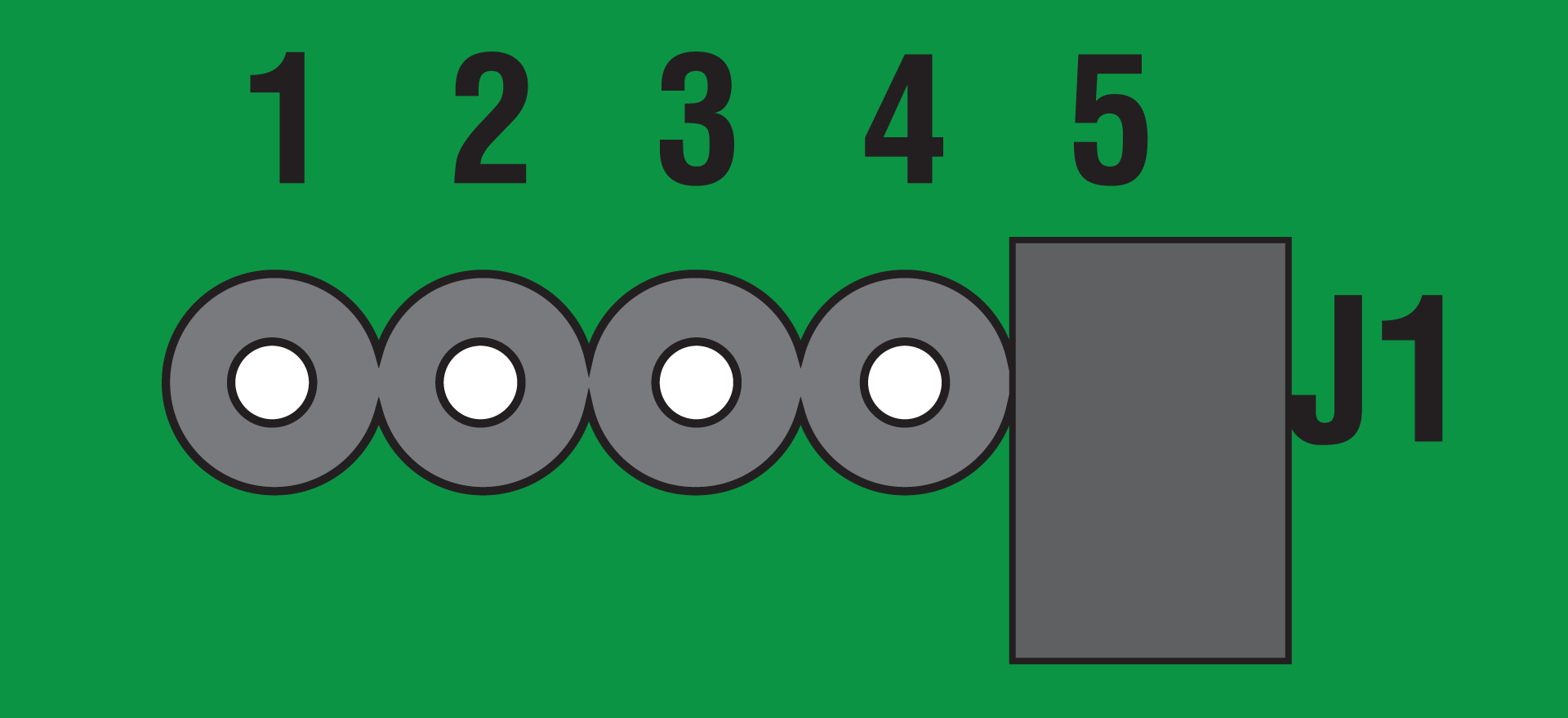

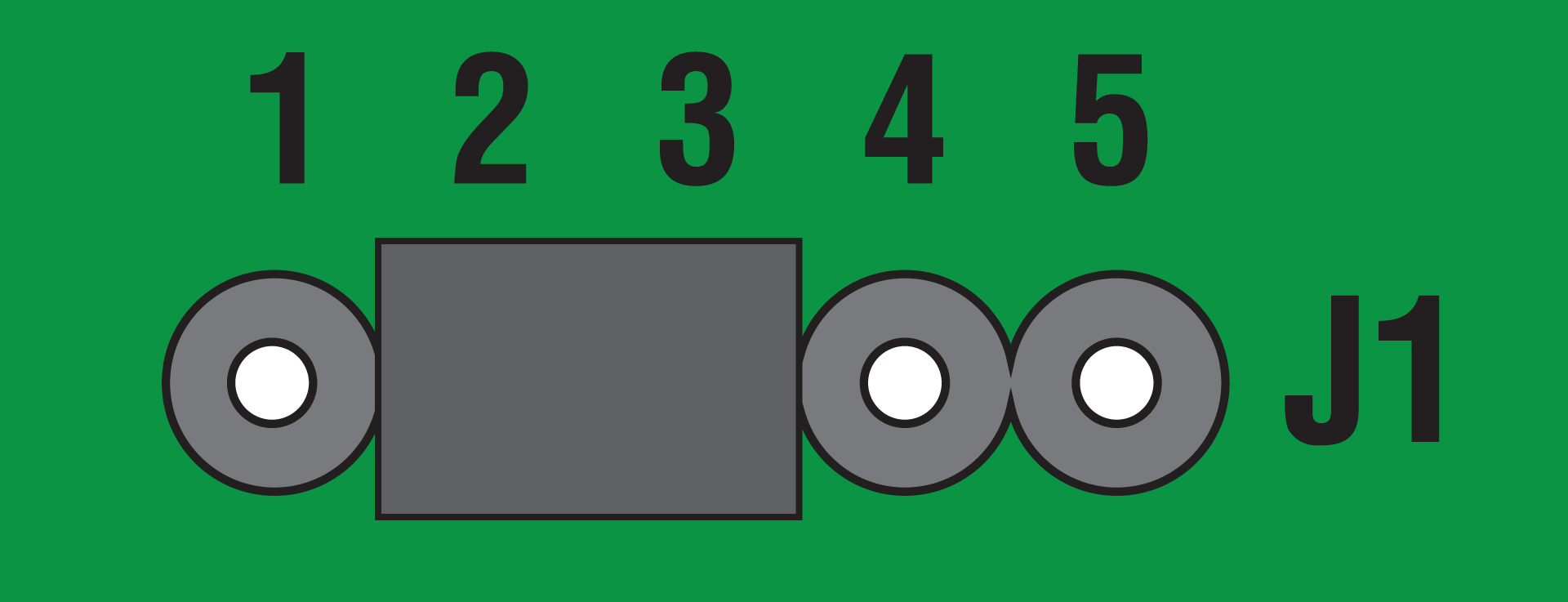

Operation mode	Jumper J1	Transmission code	Command	Extra information
ON/OFF		A or C	Switch ON	Each relay can be separately switched ON and OFF The external buttons toggle between ON and OFF in this operation mode
		B or D	Switch OFF
MOTOR CONTROL (UP/DOWN)		A or C External button T1	UP STOP (for DOWN direction)	The relays are controlled in combination and are interlocked STOP with opposite direction The maximum runtime is 90 seconds
		B or D External button T2	DOWN STOP (for UP direction)

3- or 4-button operation

Operation mode	Jumper J1	Transmission code	Command	Extra information
MOTOR CONTROL (UP/STOP/DOWN)		A	UP	The relays are controlled in combination and are interlocked The external buttons behave as if they are in 2-button operation mode The maximum runtime is 90 seconds
		B	DOWN
		C	STOP
		D	STOP

Programming

Power - ON

Programming mode

In the programming mode you can transfer the codes of your transmitter buttons to the receiver.

The operation mode set with the jumper J1 at this point in time is adopted with the programming process and is valid for the transmission code currently programmed. A total of 32 transmission codes can be programmed.

In the 2- or 3-button operation modes, only one transmitter button has to be programmed. The code of the associated button is assigned automatically.

The programming settings of the receiver are saved, even in case of extended power failures.

If the LED flashes rapidly for approximately 4 seconds, all memory locations are occupied. A transmitter can only be programmed again if another one has been deleted first.

Entering programming mode

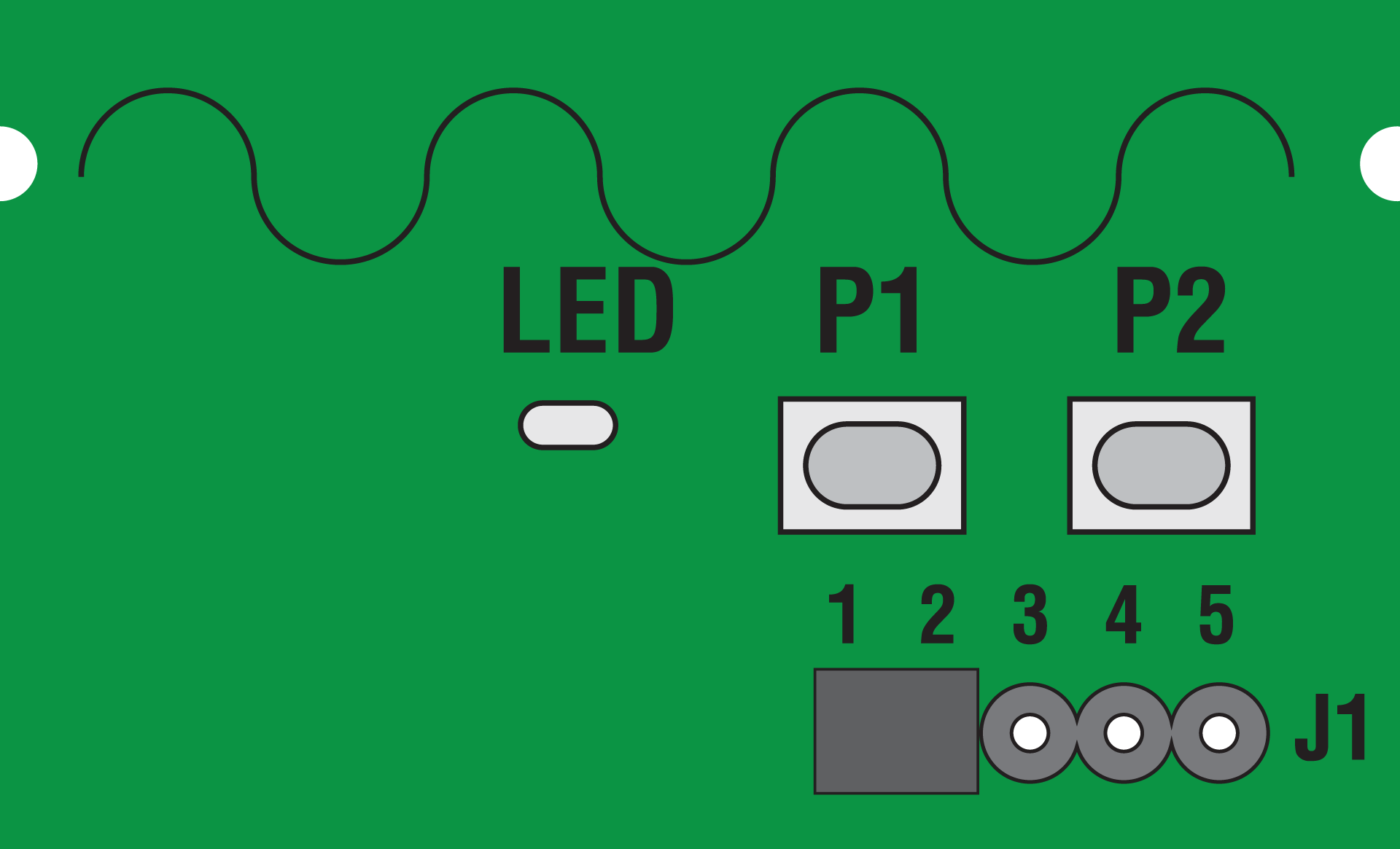

By briefly pressing (<1.6 seconds) programming button P1 (for output 1) or P2 (for output 2), you will enter the programming process. The LED flashes.

Leaving programming mode

You can cancel the programming process by briefly pressing the P1 or P2 programming button again. The LED turns off.

Programming transmitters

1. Briefly press (<1.6 seconds) P1 (output 1) or P2 (output 2) to enter programming mode.
   The LED flashes.

2. Press and hold one of the transmitter buttons to be programmed.
   When the code has been saved, the LED lights up for 4 seconds and then flashes again.

3. Release the transmitter button.

4. Repeat step 3 and 4 with other transmitters, if needed.

5. Briefly press P1 or P2 again to leave programming mode.
   The LED turns off.

Deleting transmitters

In the delete mode, you can delete specific transmission codes programmed into the receiver.

1. Long press (> 2 seconds) P1 or P2.
   Delete mode is activated and the LED flashes rapidly.

2. Press the selected transmitter button you want to delete.
   The LED lights up for 4 seconds and then flashes rapidly. The code has been deleted.


In the operation modes MOTOR CONTROL and ON/OFF, the code of the corresponding transmitter button will also be deleted.

3. Repeat the previous step with another transmitter if needed.

4. Briefly press P1 or P2 to return to operation mode.
   The LED turns off.

Resetting the receiver

Set the receiver back to the factory settings by doing a reset. All programmed transmitter codes are deleted.

1. Long press (> 2 seconds) P1 or P2.
   Delete mode is activated and the LED flashes rapidly.

2. Long press P1 or P2 again.
   The LED lights up for 4 seconds and then flashes. The memory has been deleted.

3. Briefly press P1 or P2 to return to operation mode.

Troubleshooting

New installations

If the Easywave system does not work after being programmed, perform the following checks:

• Check whether the shield between the battery and the contacts in the push button or hand-held transmitter has been removed.

• Check whether there is good contact integrity between the battery and the battery contacts.

• Check the operation of the connected receiver. Press the programming button (P) on the front of the receiver. If the status LED does not flash, the receiver is defective.

• Check the operation of the push button. Take the hand-held transmitter and walk toward the receiver:

  • If the Easywave system works with the hand-held transmitter but not with the push button, it is possible that moisture or metal is present in the wall. Move the push button, or use a wireless Easywave repeater (05-535) to increase the range.

  • If the Easywave system works only at a short distance, the push button has been moved beyond the transmission range or there is a problem due to interference. Place the push button closer or outside of the range of the interference, or use a wireless Easywave repeater (05-535) to increase the range.

  • If the Easywave system does not work at all, even when you bring the hand-held transmitter close to the receiver, check the programming and/or the batteries of the hand-held transmitter.

Existing installations

In case of problems in an existing installation, check whether the surroundings of the Easywave system have changed, possibly causing interference (metal electricity cabinet, walls, moved furniture, etc.) Restore the original arrangement, if possible.

Specifications

*Not compatible with Niko Home Control (wireless bridge or wireless smart hub)

**Only when closed using the provided screws and with the cables inserted correctly from the bottom.

Wireless network

The operation of devices with a remote control, such as a TV or video and audio devices, is not disrupted by an Easywave hand-held transmitter. The hand-held transmitter does not have to be aimed towards the wireless Easywave receiver. The indoor range is ± 30 m. In open spaces the range reaches 100 m. The range of the hand-held transmitter depends on the materials used in the residence.

A diagnostic device (05-370) can be used to determine the wireless signal strength in an environment. The appliance recognizes all 868.3 Mhz signals. The nine LEDs on the device will indicate the quality of the signals received or the strength of any interrupting signals. This allows you to determine whether or not the signal range of the hand-held transmitter will meet your needs.

Product information

This link takes you to the product page. There, you will find detailed specifications, all compatible articles, certificates of CE-marking, etc.

This online manual is applicable to the following product(s):

• 410-00335 | RF receiver for low-voltage devices, potential free (SELV), 2 changeover contacts, surface mounting

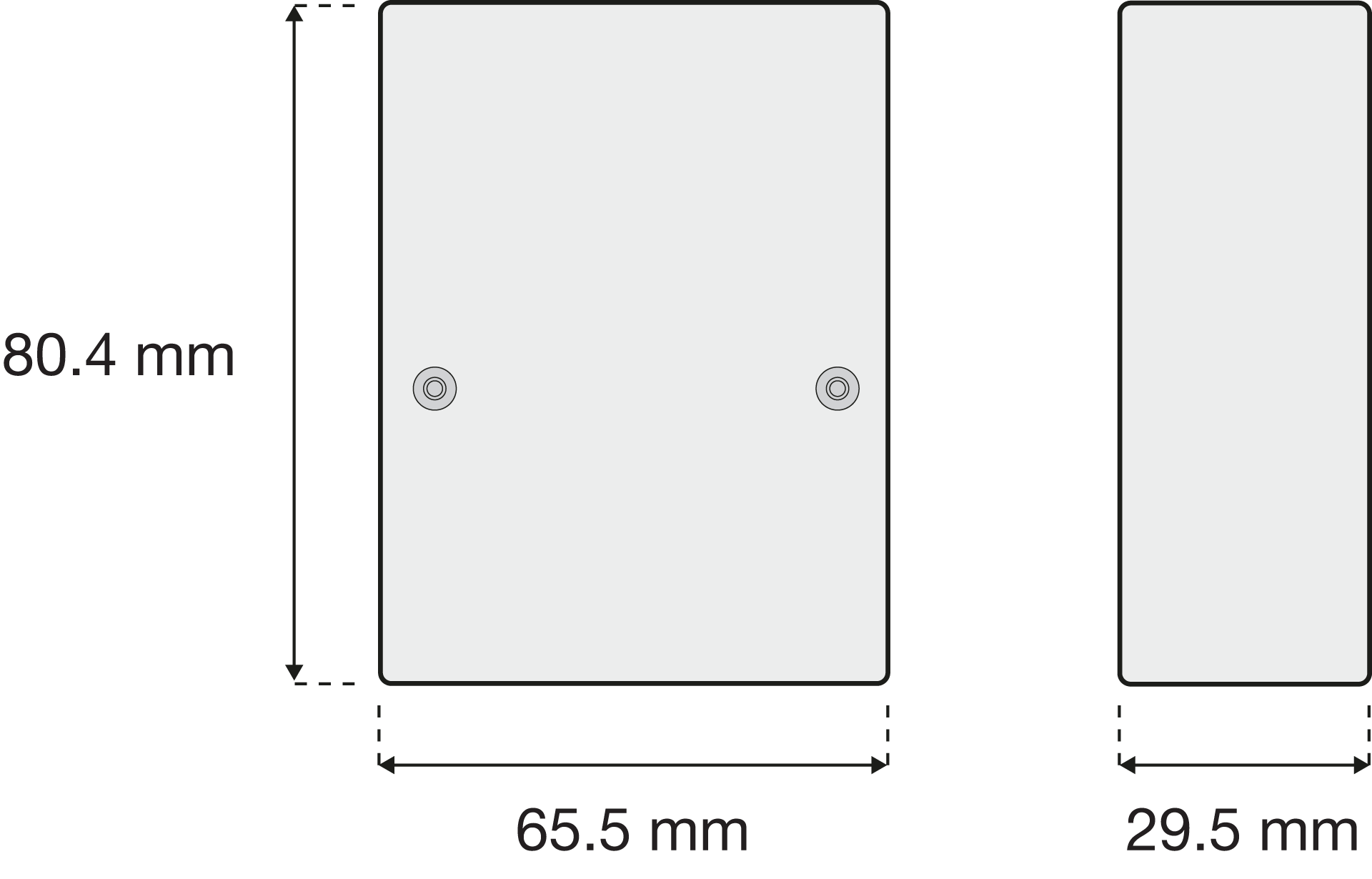

Dimensions
