Reference code |
Number of poles |
Circuit diagram |
|---|---|---|
|
961-0010300 |
1P |
|
|
961-0060300 |
2P |
|
|
961-0030300 |
3P |
|
|
961-0020300 |
1P+N |
|
|
961-0040300 |
3P+N |
|
|
961-0070300 |
3P |
|
|
961-0080300 |
3P+N |
|
|
961-0090300 |
N |
|

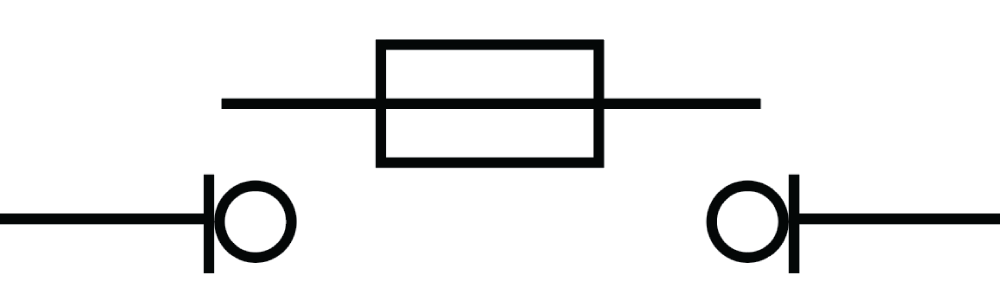

Fuse switch disconnector according to IEC 60947-3:
Make sure to correctly connect the fuses. The load side is side where the fuses are connected to the installation. The feed side is the side where the power is connected.
Reversing the connection poses an electrocution risk.
