Hardware Manual Fuse Switch Disconnectors

Installation of TYTAN® T

The installation should be carried out by a qualified installer and in accordance with the regulations of the local distribution system operator.

Step 1

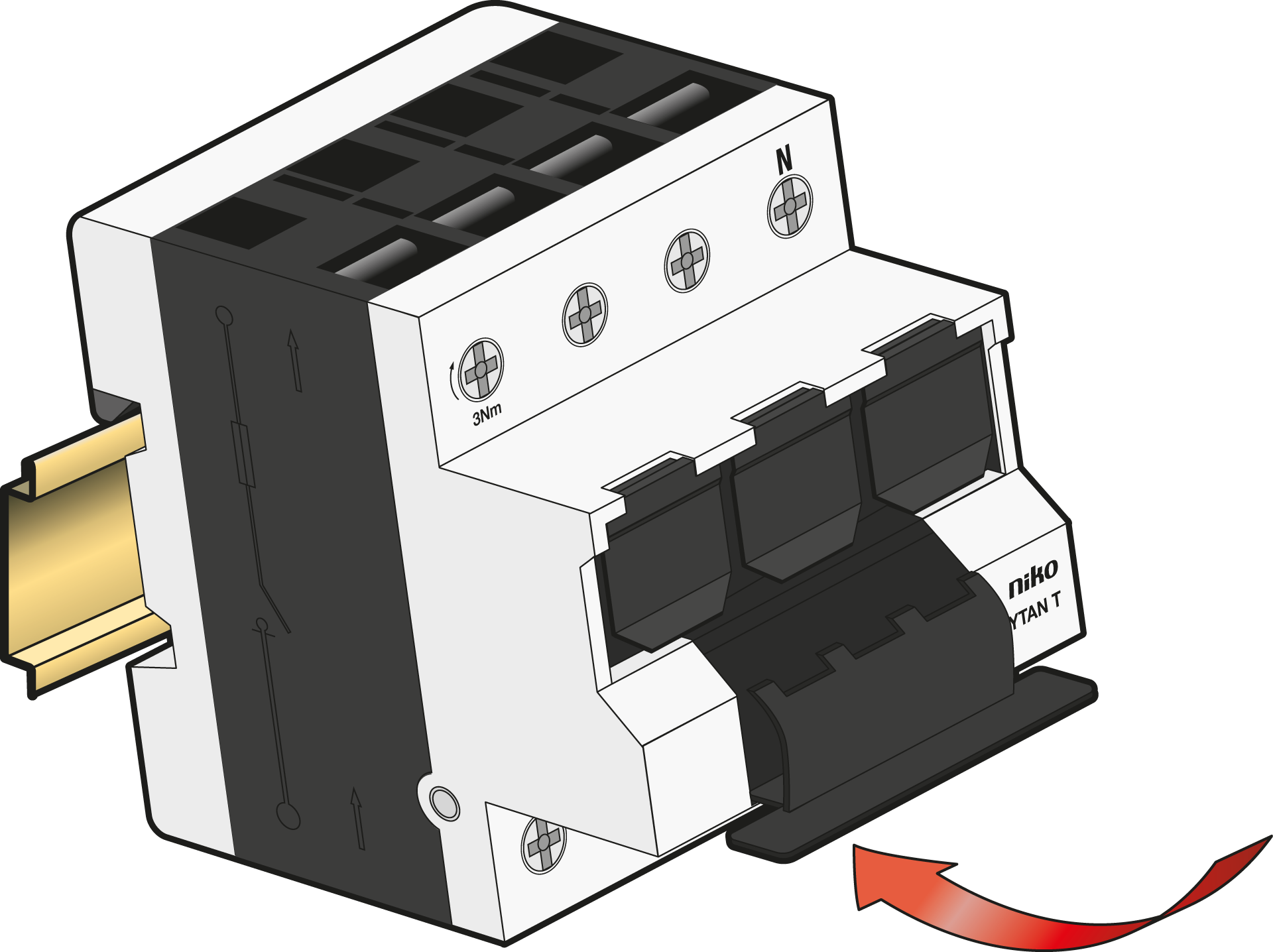

Click onto the DIN rail.

Pay attention to the rated diversity factor (RDF) according to IEC/EN 61439-1.

It is recommended to mount a cassette with fuse plugs on the DIN rail next to the fuse(s), to make spare fuse plugs readily available. Replacing a blown fuse plug with a spare one avoids touching the hot fuse.

Installation

Step 2

Only use suitable wires:

  • Copper

  • Rigid, stranded or flexible

  • Cross section 1,5 – 35 mm2

Strip the wires. Use ferrules for flexible wires.

Installation

Step 3

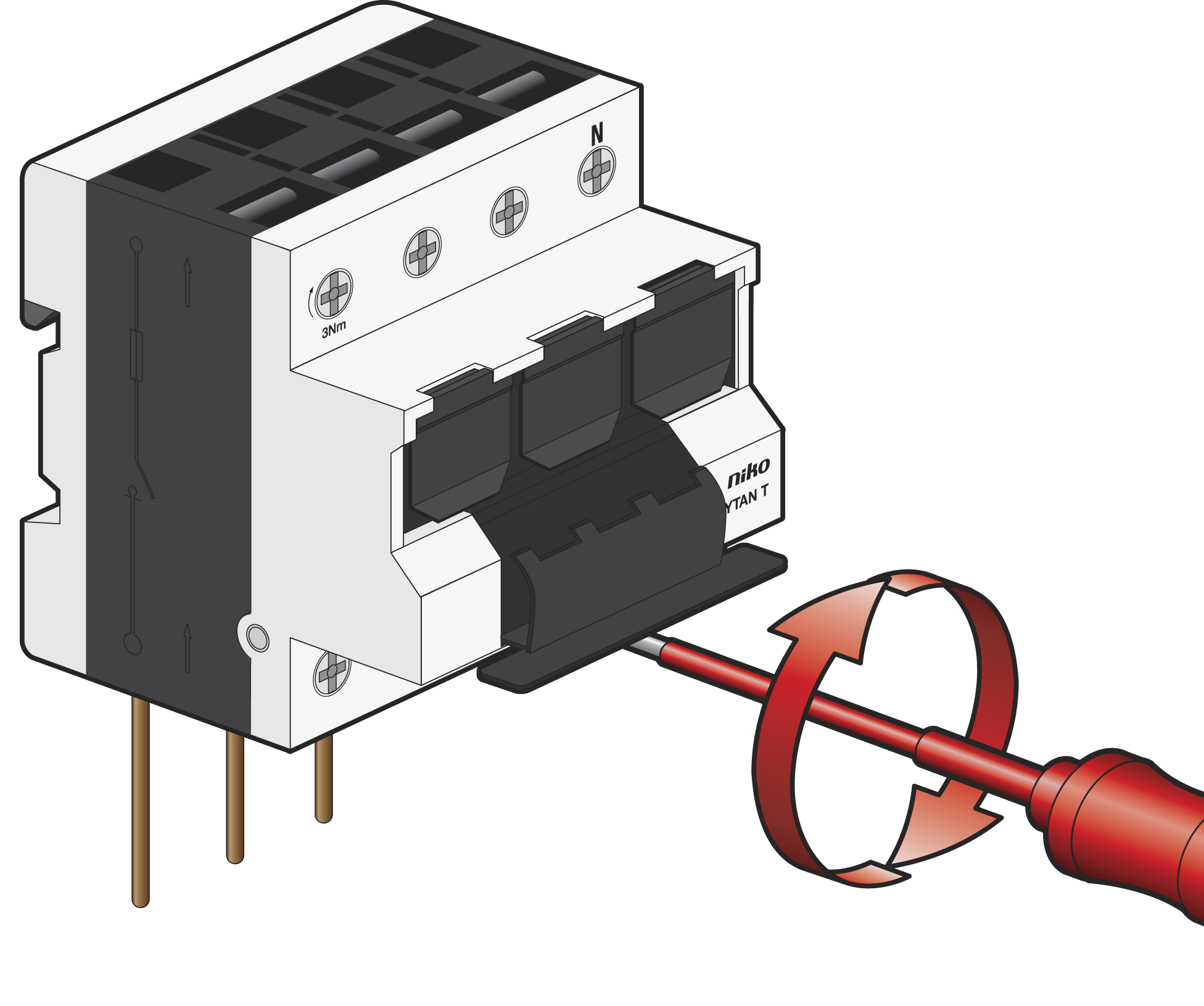

Feed the main wiresatthe bottom of the fuse switch disconnector, and the consumption at the top. Secure with 3 Nm, using a PZ2 screw driver.

Use the wiring diagram to connect the wires correctly.

Installation

Step 4

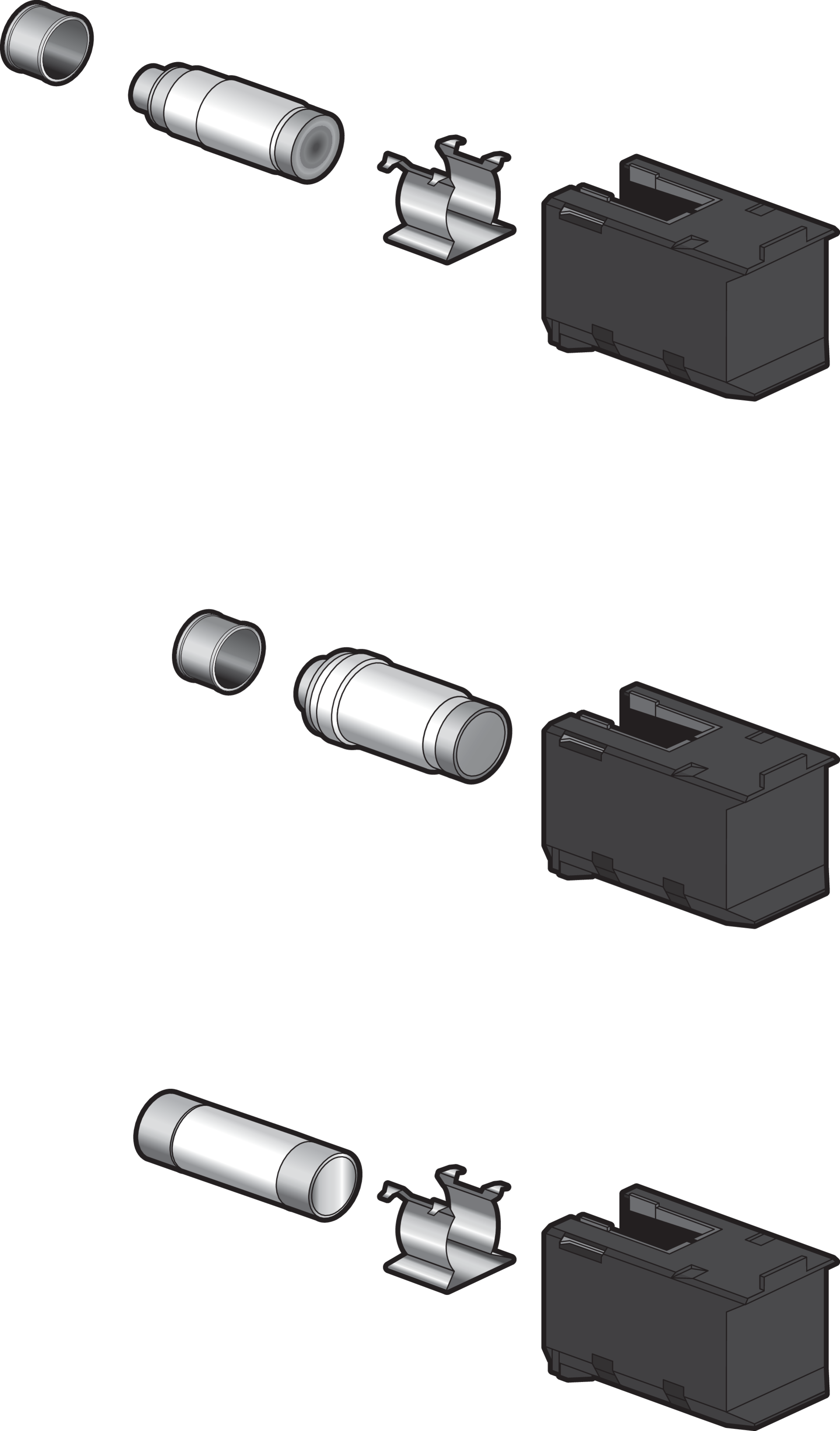

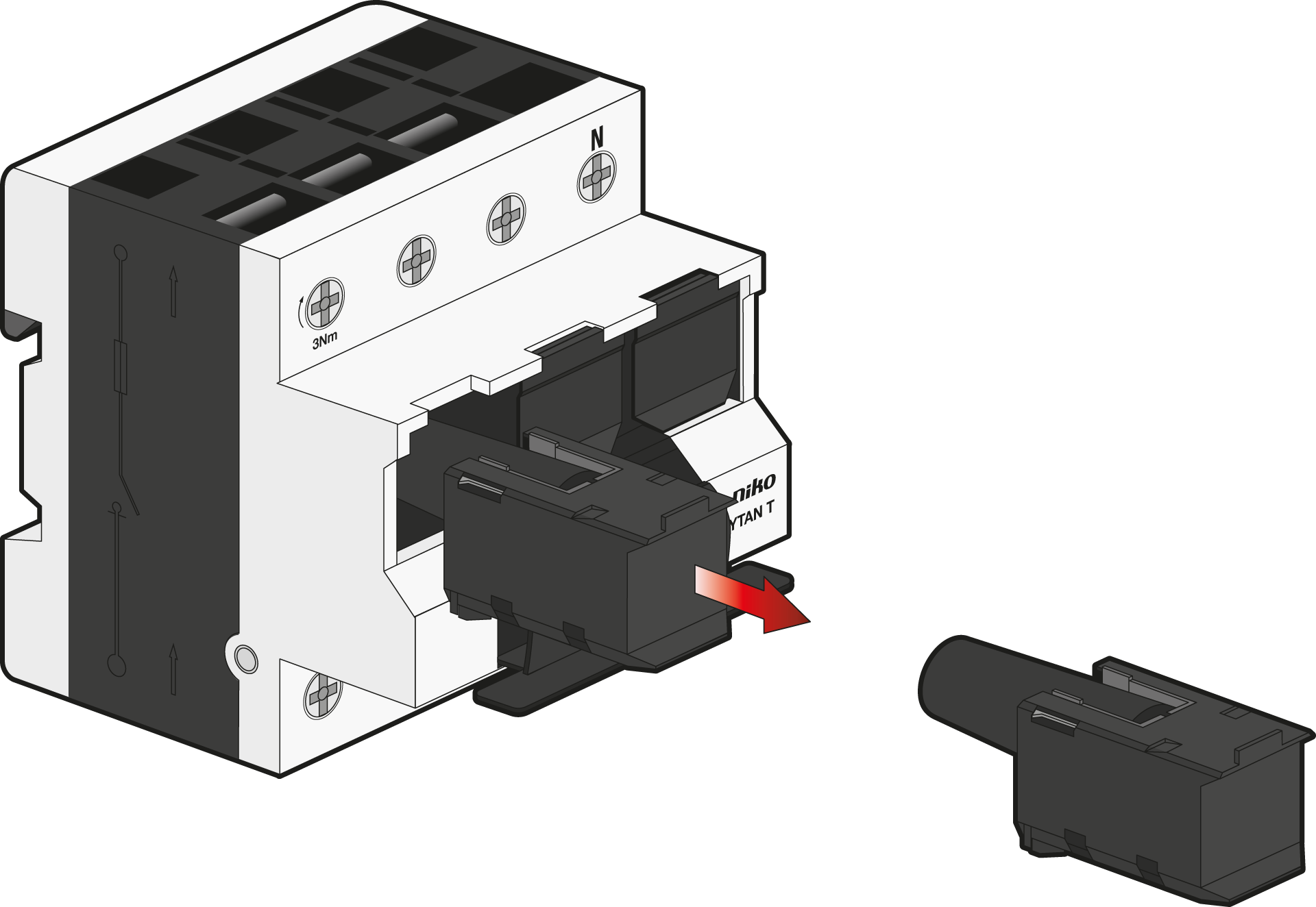

Remove the placeholder and insert the fuse link. Depending on the chosen fuse link, use the appropriate spacers:

Installation
Installation

Step 5

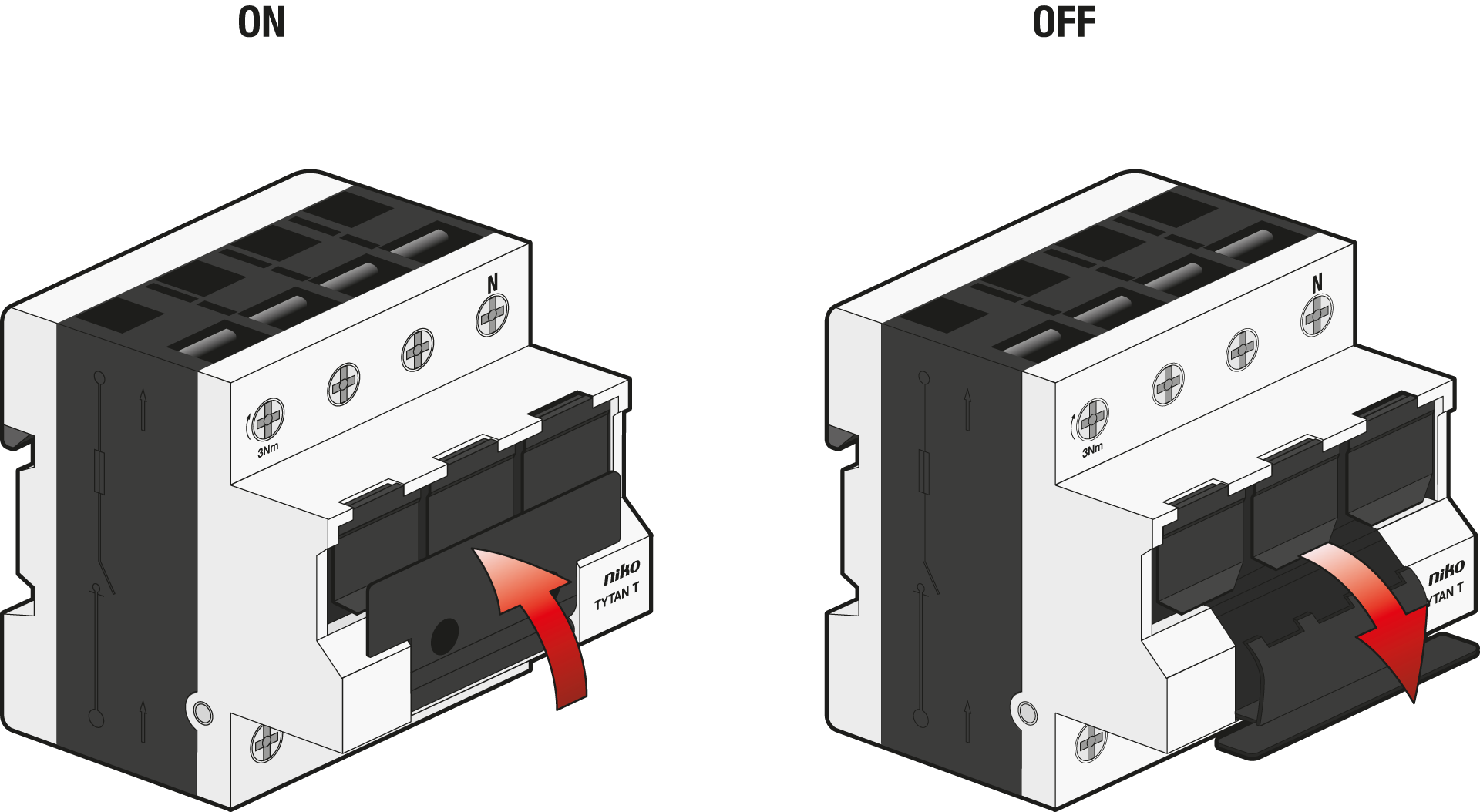

Switch ON.

Installation

Step 6

Check the fuse within 24 hours after switching ON:

  • The average operation temperature must be less or equal to 35 °C.

  • The terminals must remain secured at 3 Nm.
