Creating a conditional action

Starting point

• You have created several players.
• You have created actions.

• You are in the Create overview window.



Procedure

1. In the right-hand button bar, click on the button Conditional action.
   Result:
   The Conditional action pane appears.

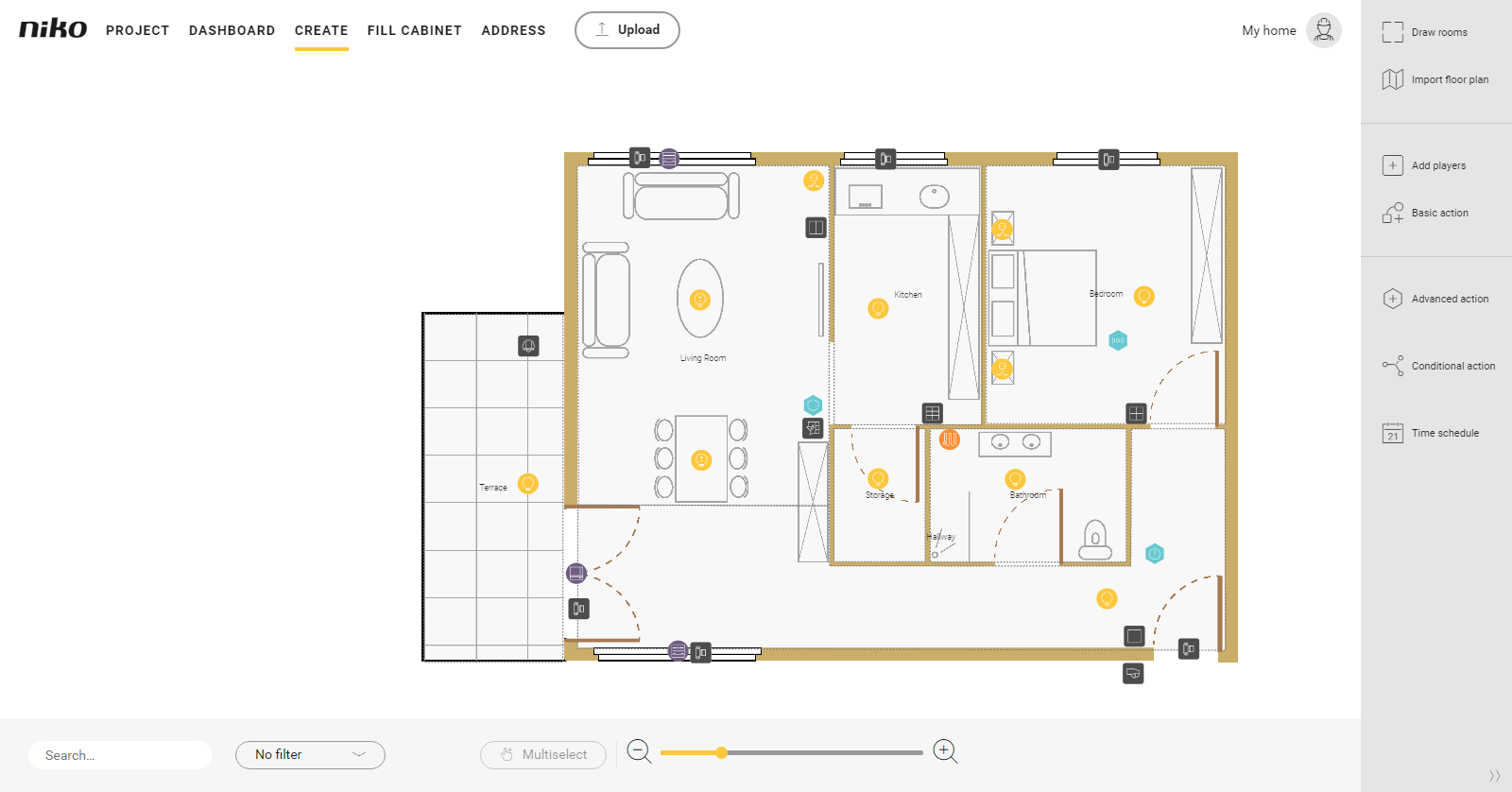

   Screenshot
2. Choose the room as follows:

   • Choose Room from the drop-down list.
   • Click on the room in the drawing area.
3. Click on Add conditional action.
4. Give the action a name.

5. Set IF by adding one or more logic groups:

   Logic group	What?	How?
   A	Choose the players within the first logic group, logic group A.	1 Click on the plus signs of the players you want to include in the logic group. 2 Set the reference value for each player or action. 3 Determine the logical relationship between the players or actions within this logic group: - AND (player 1 and player 2 and ...) - OR (player 1 or player 2 or ...) IF players get a caption on the floor plan saying IF (A) (with the letter of the logic group in brackets).
   B	(optional) Choose the players within a new logic group.	1 Click on Add logic group. 2 Repeat steps 1 to 4 of logic group A. 3 Determine the logical relationship between the logic groups: - AND (group A and group B and ...) - OR (group A or group B or ...)

   Use Multiselect to select various outputs at the same time.

6. (optional) Click on the button Add time schedule to add a time schedule.

7. Set THEN by adding players:

   What?	How?
   Choose the players.	1 Click on the plus signs of the players or actions you want. 2 Set the reference value for each player or action. 3 For each player or action set the delay, if any, with which the value should be applied. THEN players get the caption THEN in the drawing area.

8. (optional) Click on the button Add notification to add a notification. Choose the notification type: push or informative. Type the text of the notification.
   Screenshots

9. Set ELSE by adding players:

   What?	How?
   Choose the players.	1 Click on the plus signs of the players or actions you want or click on Reuse player to reuse a player in ELSE. 2 Set a notification with Add notification. 3 Set the reference value for each player or action. 4 For each player or action set the delay, if any, with which the value should be applied. ELSE players get the caption ELSE in the drawing area.

   Depending on the application you do not necessarily need any players under ELSE.

10. Click the Close button to return to the Conditional action pane.
11. Click the Close button to return to the Create overview window.
