Use Sonos/Bose speakers in scenes and turn them off when someone is at the door

Procedure

Creating the controls and the devices

1. Create the following controls:
   • a six-fold push button with LEDs (PB1)
   • a mood control (MOOD1)
   • an external video unit (VDS1)
2. Create the following devices:
   • a dimmable lighting circuit (LAMP1)
   • a Sonos/Bose speaker (LS1)

Creating the routines

1. Create a routine Scene "Dancing" (ROUT1). Configure the following behaviour:
   • control that initiates the routine: button 1 of MOOD1
   • devices that are part of the routine:
     • LAMP1: Level  = 20%
     • LS1: Speaker settings = 100 - Source = Last played source

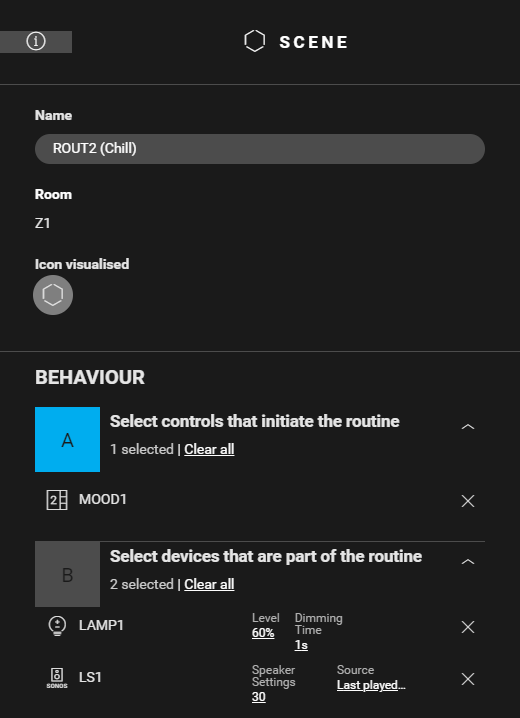

2. Create a routine Scene "Chill" (ROUT2). Configure the following behaviour:
   • control that initiates the routine: button 2 of MOOD1
   • devices that are part of the routine:
     • LAMP1: Level = 60%
     • LS1: Speaker settings = 30 - Source = Last played source

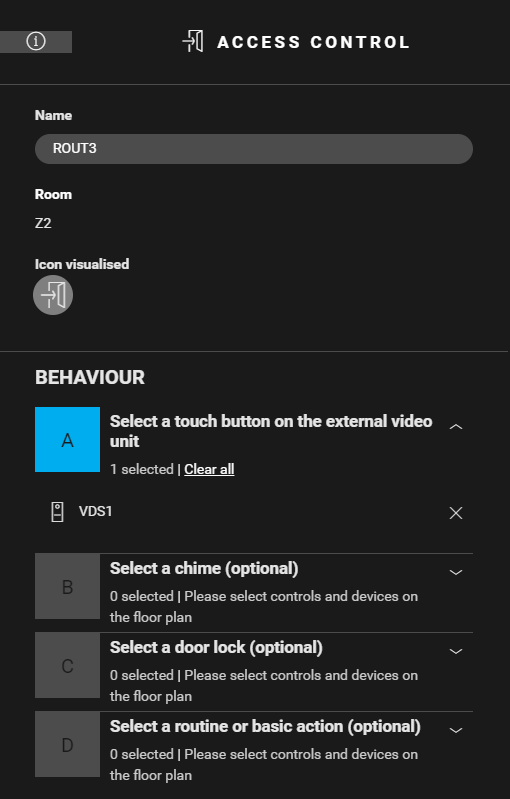

3. Create a routine Access control (ROUT3). Configure the following behaviour:
   • Select a button on VDS1.
   • (optional) Select a chime, a door lock and/or a routine or a basic action.
   • (optional) Select a different ringtone.

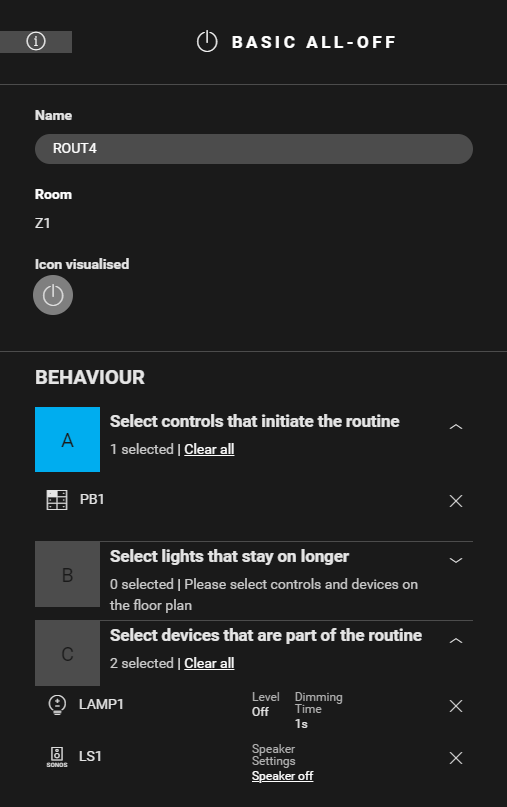

4. Create a routine Basic all-off (ROUT4). Configure the following behaviour:
   • control that initiates the routine: PB1
   • devices that are part of the routine:
     • LAMP1: Level = Off
     • LS1: Speaker settings = speaker off

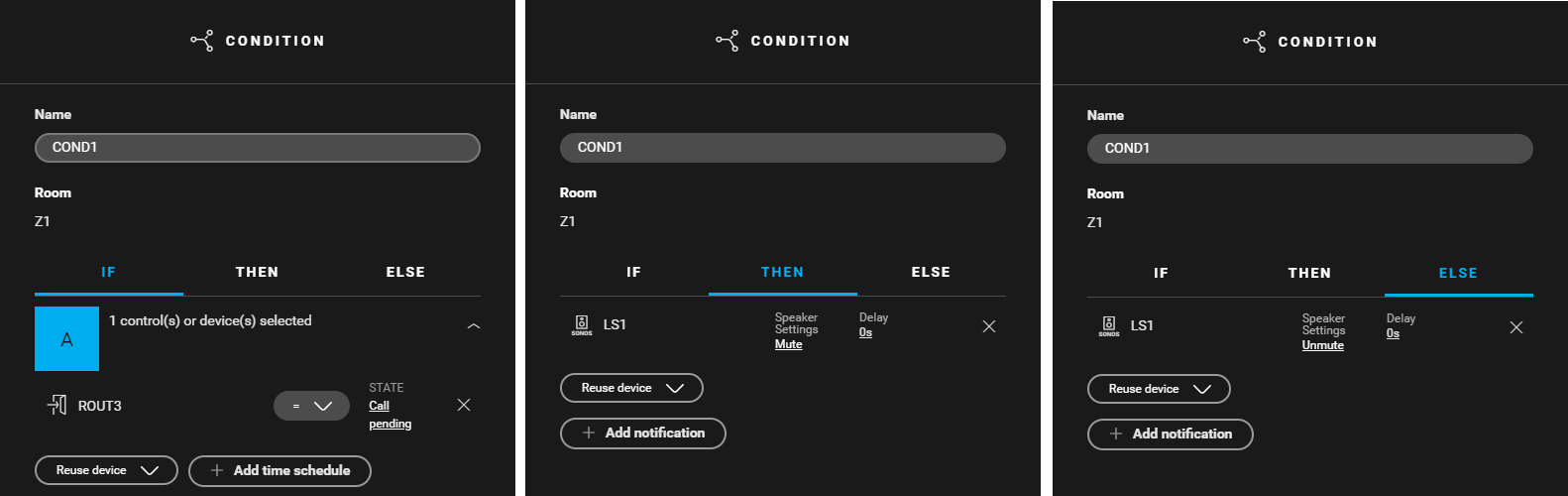

Creating the condition

Create a condition (COND1) for turning off the speakers when someone is at the door. Use the following logic:

• IF ROUT3: state = calling pending
• THEN LS1: speaker settings = mute
• ELSE LS1: speaker settings = unmute

Editing the touchscreen profile

To be able to answer the call with the touchscreen turn on the access control functionality in the touchscreen profile. You can find the touchscreen profile(s) in the Dashboard menu.

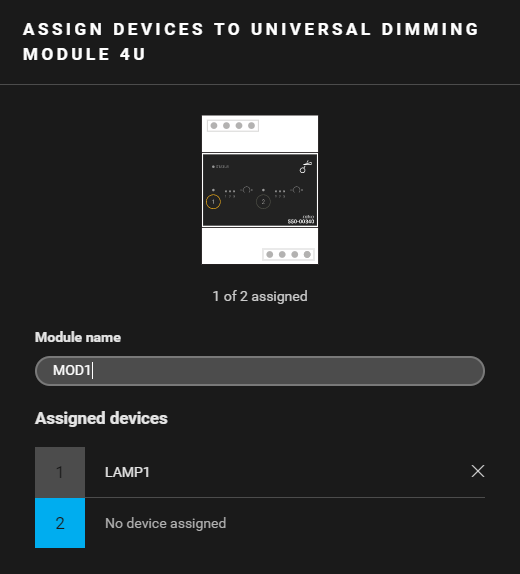

Filling the cabinet and addressing the devices
