Creating a short pulse when activating and deactivating the lighting

Procedure

Creating the control, the devices and the basic action

1. Create a single push button (PB1).
2. Create a lamp (LAMP1).
3. Create an other switched device (OUT1).
4. Create a basic action (BASIC1) to control the lamp with the push button.

Creating the routines

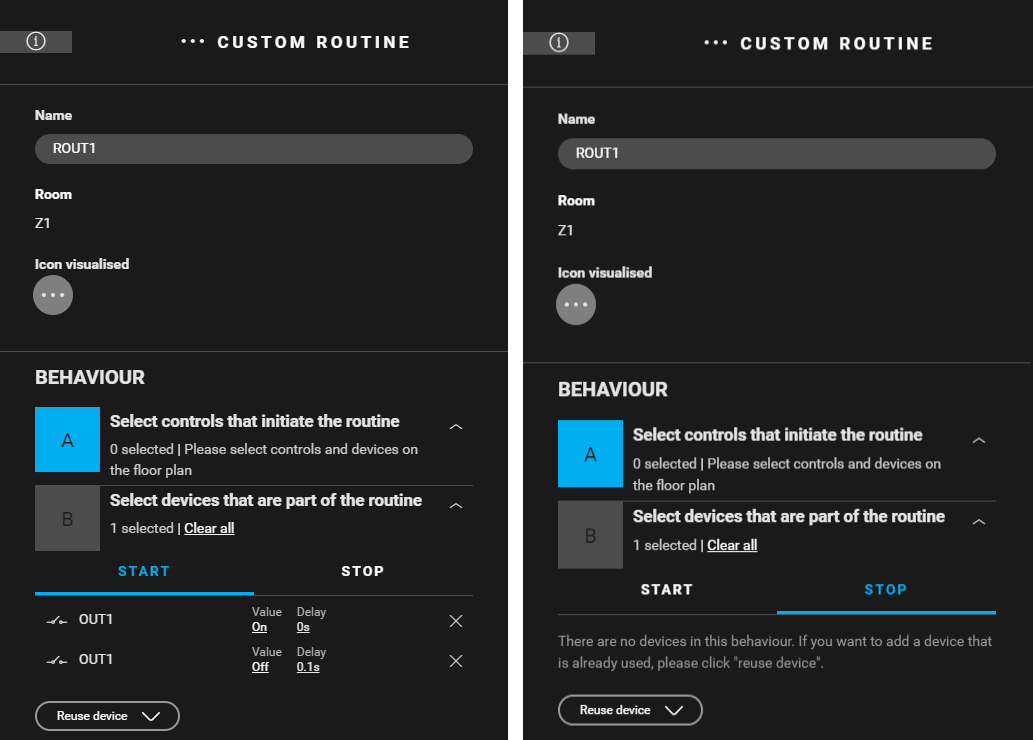

1. Create a Custom routine (ROUT1) to activate OUT1 and deactivate OUT1 with a delay of 0.1 s. Use the following behaviour:
   • Control that initiates the routine: leave empty
   • Devices that are part of the routine: OUT1
     • Start behaviour:
       • OUT1: Value = on, Delay = 0 s
       • (reuse device) OUT1: Value = off, Delay = 0.1 s
     • Stop behaviour: leave empty

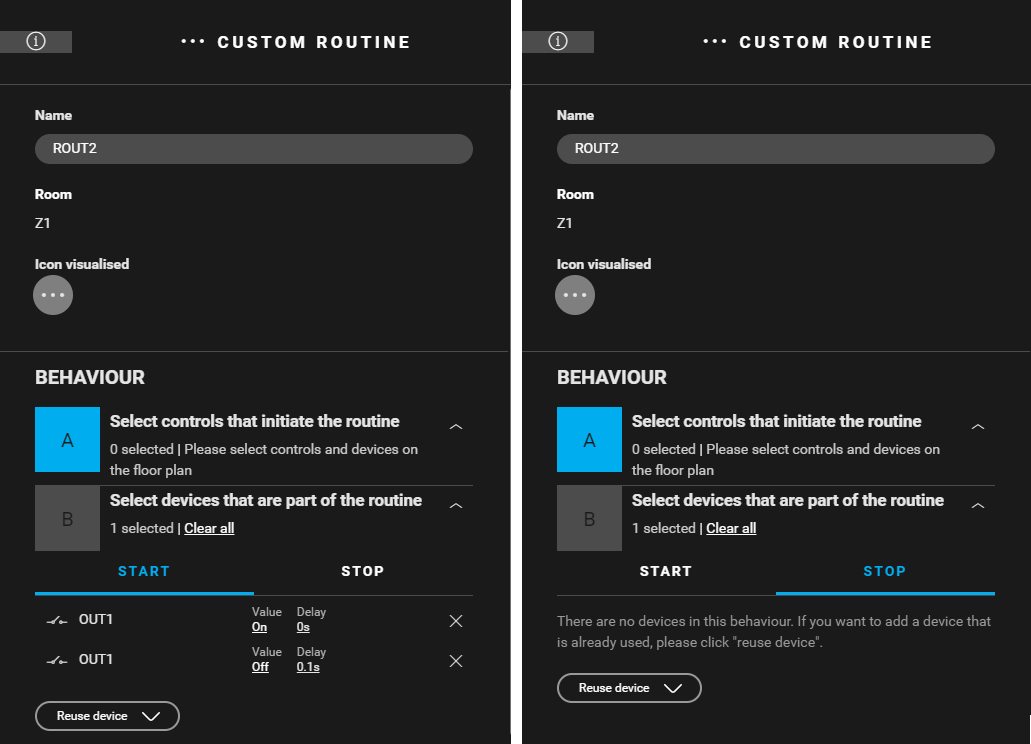

2. Create a Custom routine (ROUT2) to activate OUT1 and deactivate OUT1 with a delay of 0.1 s. Use the following behaviour:
   1. Control that initiates the routine: leave empty
   2. Devices that are part of the routine: OUT1
      1. Start behaviour:
         1. OUT1: Value = on, Delay = 0 s
         2. (reuse device) OUT1: Value = off, Delay = 0.1 s
      2. Stop behaviour: leave empty

Creating the condition

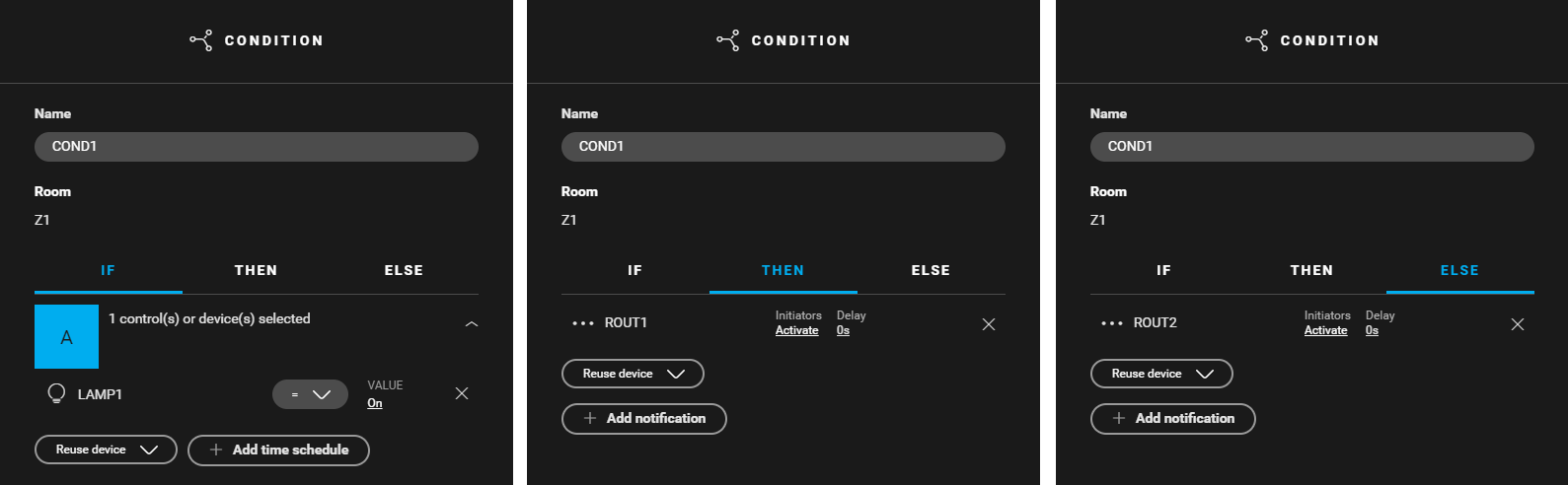

Create a condition (COND1) that controls the custome routines (ROUT1 and ROUT2). When the lamp is activated, ROUT1 is activated. When the lamp is deactivated, ROUT2 is activated. Use the following logic:

• IF LAMP1: Value = on
• THEN ROUT1: Intiators = activate, Delay = 0 s
• ELSE ROUT2: Intiators = activate, Delay = 0 s
