Creating a pulse of less than 1 second using a push button

Use case

At the first push of a button a lamp is activated. 0.4 seconds after the second push the lamp is deactivated. In this example a lamp is used, but you can also use another device.

Procedure

Creating the control and device

Create a six-fold push button with LEDs (PB1).
Create a lamp (LAMP1).

Creating the routine

Create a Custom routine (ROUT1). Use the following behaviour:

Control that initiates the routine: button 1 of the push button (PB1).
Devices that are part of the routine: LAMP1
- Start behaviour:
  - LAMP1: Value = on, Delay = 0 s
  - LAMP1: Value = off, Delay = 0.4 s
1. Stop behaviour:
  - LAMP1: Value = on, Delay = 0 s
  - LAMP1: Value = off, Delay = 0.4 s

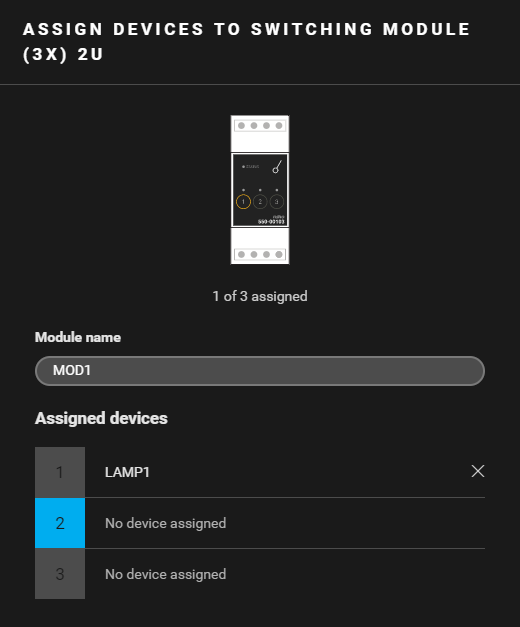

Filling the cabinet and addressing the device

Fill the cabinet with ...	and address the following device ...
a switching module (3x) 2U (MOD1)	the lamp LAMP1.

Example

Click here to download the programming example (nhc2 file).
