Controlling the lighting in a sports hall on two sides of a curtain

Creating the controls and the devices

1. Create 2 single push buttons, one for each play area (PB1 and PB2).

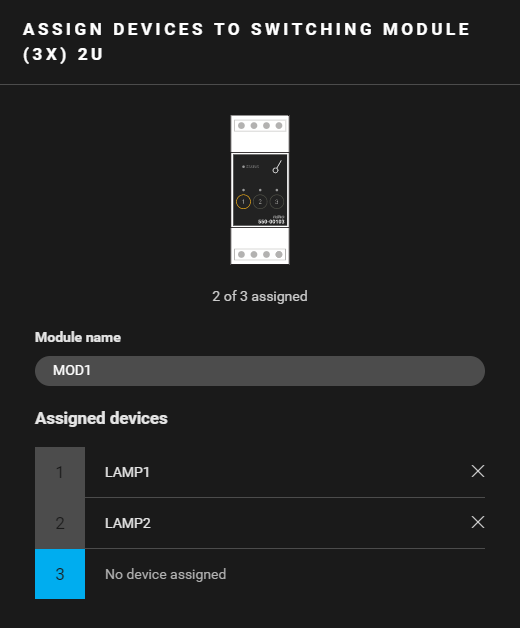

2. Create 2 lighting circuits, one for each play area (LAMP1 and LAMP2)

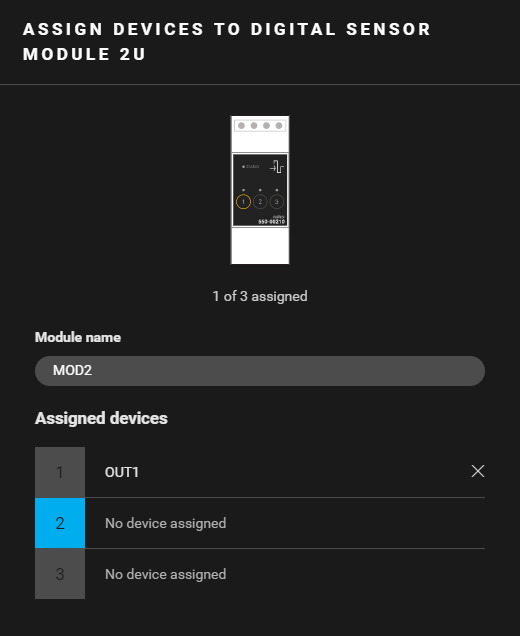

3. Create an external contact: connection to external system (OUT1). This contact is closed when the curtain is closed.

Creating the condition

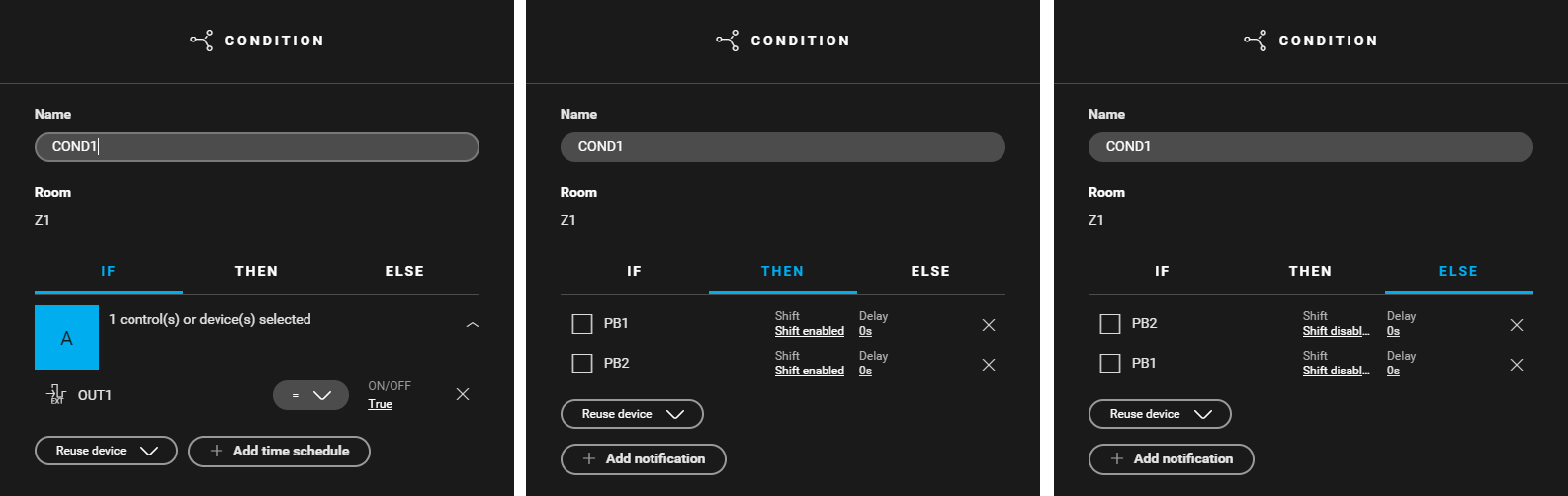

Create a condition (COND1) for activating the shift function on both push buttons when the curtain is closed (OUT1=true). Use the following logic:

• IF external contact OUT1: On/off = true
• THEN (PB1: Shift = shift enabled) and (PB2: Shift = shift enabled)
• ELSE (PB1: Shift = shift disabled) and (PB2: Shift = shift disabled)



With the shift function you can make a button perform different actions (basic actions or routines) depending on its mode (normal or shift).

Creating the basic actions

1. Create a basic action (BASIC1) to control the lighting in play area 1, when the curtain is closed. Select LAMP1 and PB1-shift.

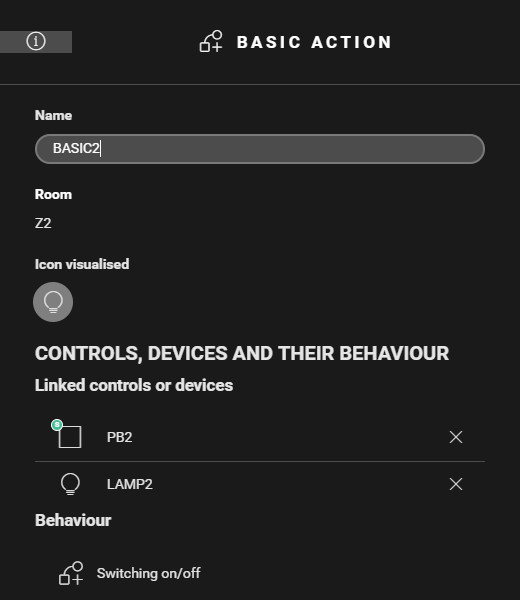

2. Create a basic action (BASIC2) to control the lighting in play area 2, when the curtain is closed. Select LAMP2 and PB2-shift.

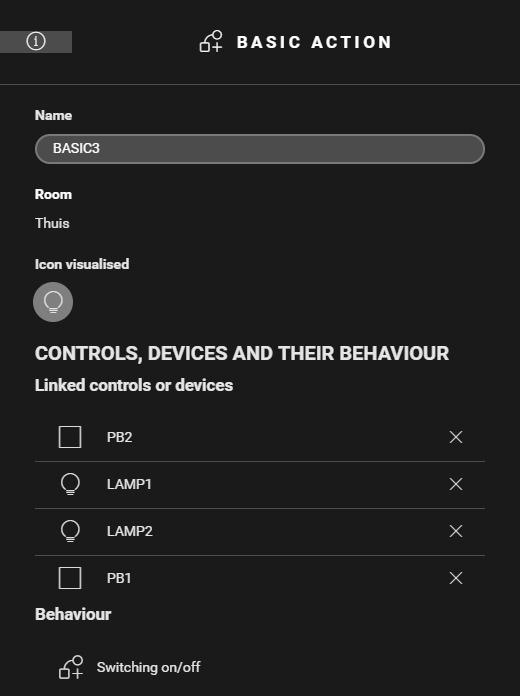

3. Create a basic action(BASIC3) to control the lighting in both areas, when the curtain is open. Select LAMP1, LAMP2, PB1-normal en PB2-normal.
