Controlling the lighting and the ventilation in a toilet room

Use case

Your customer wants to automatically control the lighting and the ventilation in the toilet room using a mini detector.

When movement is detected:

  • the lighting is activated. The lighting is deactivated 1 min after the last movement detection.

  • the switch ventilator is activated after 5 min. The switched ventilator is deactivated 1 min after the last movement detection. In this manner, the ventilator is not activated when a person is in the toilet room for less than 5 min.

Procedure

Creating the controls and devices

  1. Create a mini detector (DET1)

  2. Create the following devices: a virtual device (VIRT1) a lamp (LAMP1) a switch ventilator (FAN1)

https://s3-eu-west-1.amazonaws.com/guideimages/Screenshots/V2.9/EN/SPE_021_213_01.png

Creating the routine

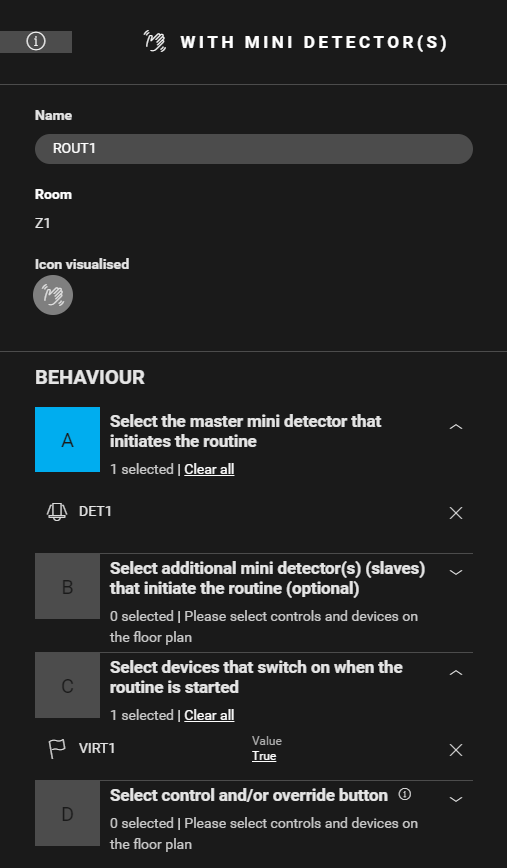

Create a routine Motion detection with mini detector(s) (ROUT1) to activate the virtual device (VIRT1). Configure the following behaviour:

  • Master mini detector that initiates the routine: DET1

  • Device that is switched on when the routing is started: VIRT1: Value = true

https://s3-eu-west-1.amazonaws.com/guideimages/Screenshots/V2.9/EN/SPE_021_213_02.png

Creating the condition

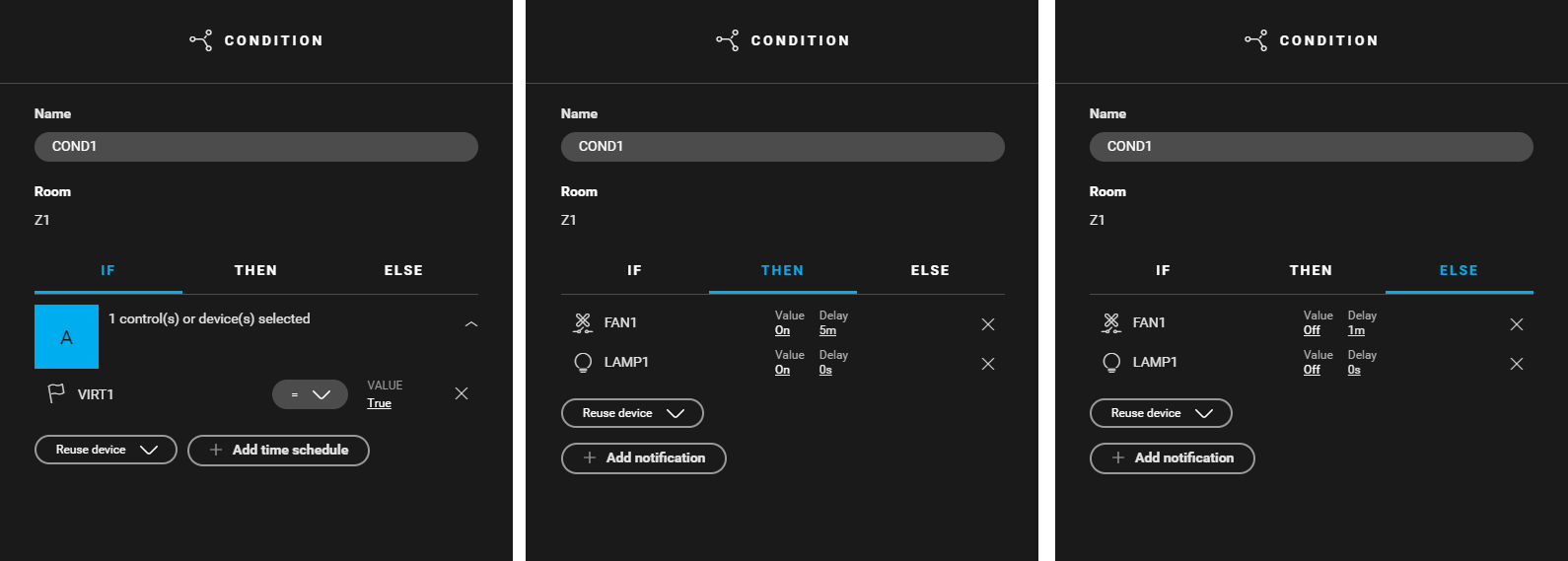

Create a condition (COND1) that activates LAMP1 immediately and FAN1 after 5 min, and deactivates both 1 min after the last movement detection. Use the following logic:

  • IF (VIRT1: Value = true)

  • THEN (LAMP1: Value = on, Delay = 0 s) and (FAN1: Value = on, Delay = 5 min)

  • ELSE (LAMP1: Value = off, Delay = 0 s) and (FAN1: Value = off, Delay = 1 min)

https://s3-eu-west-1.amazonaws.com/guideimages/Screenshots/V2.9/EN/SPE_021_213_03.png

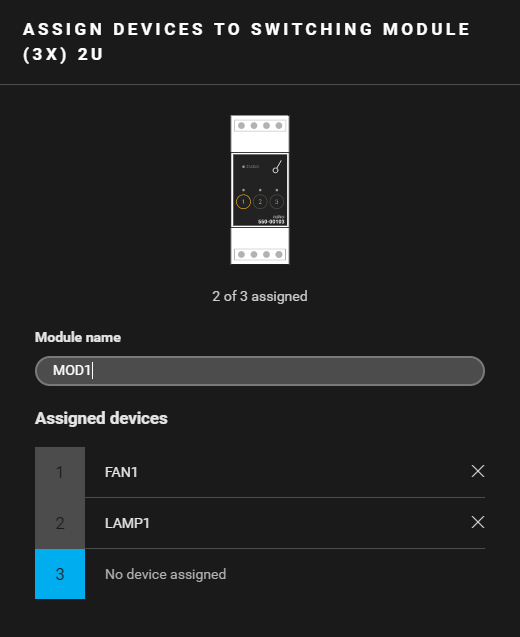

Filling the cabinet and addressing the devices

Fill the cabinet with ...

and address the following devices ...

a switching module (3X) 2U (

MOD1

)

  • switch ventilator FAN1.

  • lamp LAMP1.



Example

Click here to download the programming example (nhc2 file).
