410-00332

Table of contents

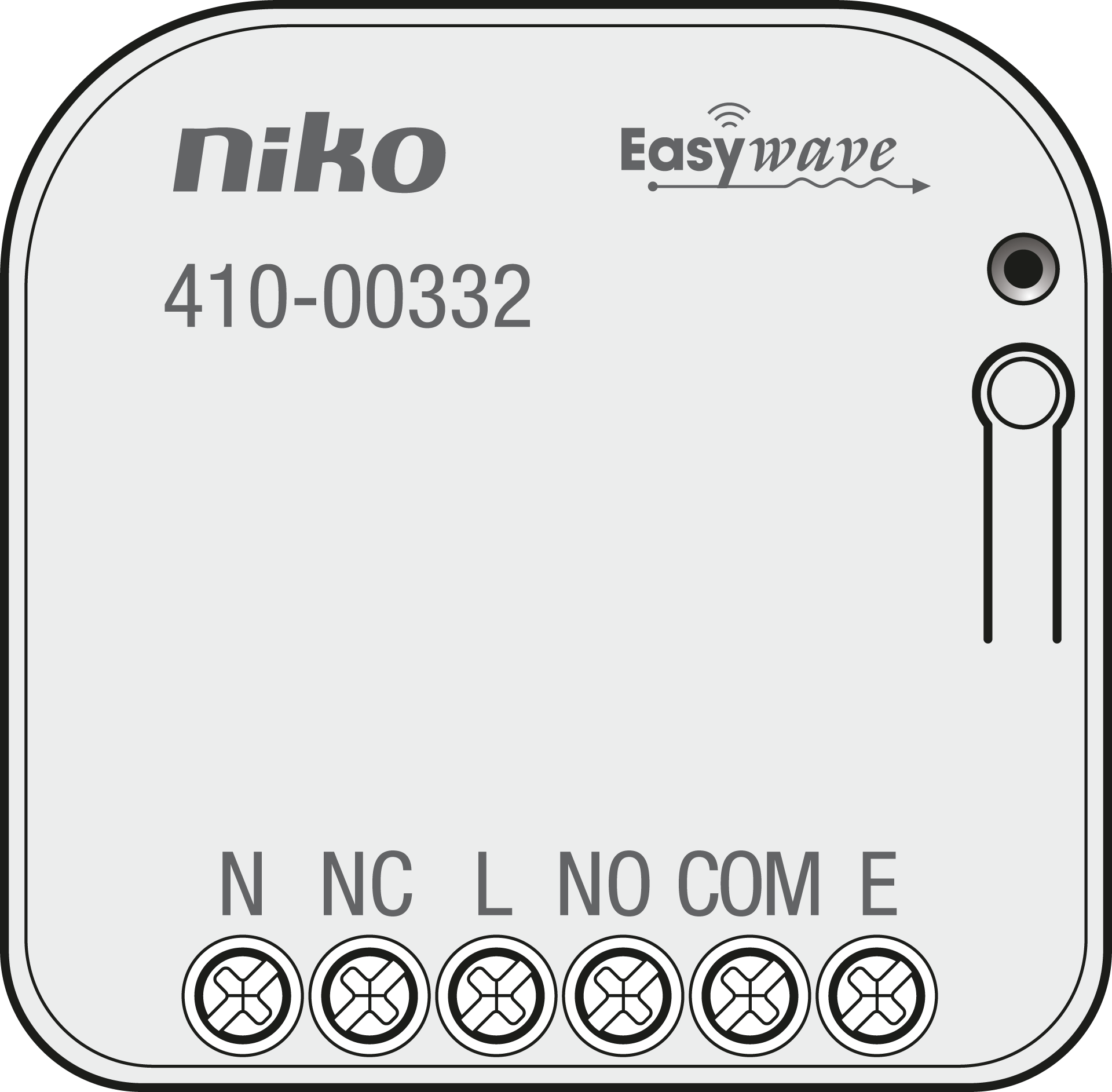

Description

This flush-mounted receiver allows switching an electrical device ON and OFF using a wireless Easywave button or a wired button. This receiver has a potential-free changeover relay contact, suitable to control devices such as a doorbell or a dimmer.
Up to 32 transmission codes can be programmed into the receiver. The receiver is equipped with either 1-button operation (ON/OFF, DEAD MAN, TIMER) or 2-button operation (ON/OFF, LOGIC).

Compatible products

• This product can be wirelessly controlled from a Niko Easywave hand-held transmitter (05-31X) and/or wireless push button (410-0000X). For local operation, external buttons can be connected.

• This product can be installed behind a Niko blind plate (XXX-76900) or external wired push button (e.g. 170-0000X) in the colour of your choice.

• This product is NOT compatible with Niko Home Control (550-XXXXX, 551-XXXXX, 552-XXXXX).

Installation

230 V – OFF

1. Connect the supply voltage and the devices to be controlled, according to the wiring diagram.




230 V – ON

2. Complete the programming.

Button P and the LED on the receiver must be accessible during programming.

230 V – OFF

3. Place the receiver in the flush-mounting box.




4. Mount the blind plate or push button.

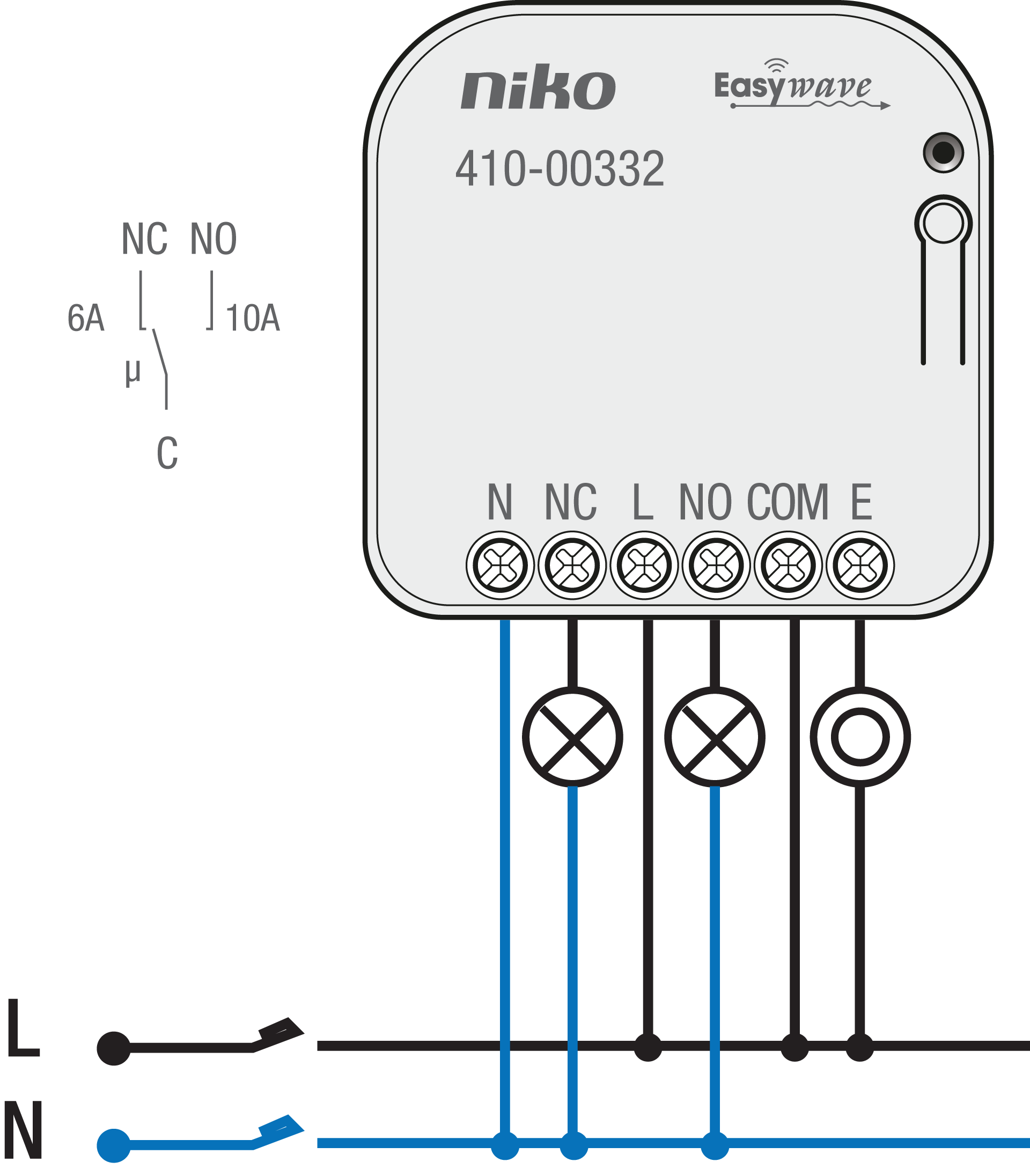

Wiring

Operation and use

230 V – ON

Controlling via the push-button input (T)

This product has one push-button input (T), which has to be connected to L (see Wiring). The push-button input behaves like a transmitter button with button code B and should always be used in 1-button operation.

When used with factory settings, the push-button input works in the ON/OFF 1-button operation mode. The external button can be programmed in other operation modes or deleted at any time. If the external button is deleted from memory, the product returns to the factory settings.

• If the push-button input is programmed in the ON/OFF 2-button operation mode, it can lock the output. As long as the push-button input is closed, the switching output remains switched OFF. Radio transmitters are ignored during this time.

• If the push-button input is programmed in DEAD MAN operation mode, it switches the output ON as long as it is closed. However, radio transmitters can switch the output OFF again at any time.

• It is not possible to use the push-button input in the LOGIC operation mode.

Controlling via wireless controls

Each wireless push button, hand-held transmitter or external wired button can be assigned its own operation mode. You can use the following buttons:

05-311	05-312	05-317	05-318	410-00001	410-00002

2-button operation

Operation mode	Transmission code	Command	Other commands
ON/OFF	A or C	Switch ON
	B or D	Switch OFF
LOGIC	A or C	Switch ON	This operation is reset by any command from a transmitter under another operation type
	B and D	Switch OFF

1-button operation

Operation mode	Transmission code	Command	Other commands
ON/OFF	A or B or C or D	Switch ON and OFF alternately	Long press (>2 seconds) switches output OFF, regardless of its current state
DEAD MAN	A or B or C or D	Output switches as long as button is pressed: Max. 36 seconds in case of a wireless push button or hand-held transmitter Unlimited time in case of external wired button
TIMER	A or B or C or D	Switch ON	Switch OFF after set time (factory setting: 7 minutes) If pressed again, the timer counts down again from the set time.

Programming

230 V – ON

Programming mode

With button P on the receiver, you can activate the programming mode for the required operation type on your receiver.

You can cancel the programming process by briefly pressing the P programming button maximum 3 times. Once the LED turns off, the receiver returns to standby.

If no button is pressed within 30 seconds, the receiver automatically switches to operation mode.
The settings are not saved.

Press the button to be programmed on the hand-held transmitter or the external button. The LED on the receiver provides feedback when the transmission code is programmed successfully.

When the LED on the receiver turns off, the receiver is ready for operation.

Entering programming mode

With short press (<2 seconds) and long press (>2 seconds), you can navigate through the programming structure. The LED on the receiver provides feedback on the selected programming mode, through its colour and the way it flashes.

Leaving programming mode

You can cancel the programming process by briefly pressing the P programming button maximum 3 times.

Setting 2-button operation modes

Only one transmitter button must be programmed, the code for the associated button is assigned automatically.

Desired operation mode	Action		Feedback LED (on receiver)
ON/OFF	Step 1: on the receiver	1x short press
	Step 2: on transmitter	1x short press	2 seconds
LOGIC	Step 1: on the receiver	1x short press
		1x long press
	Step 2: on transmitter	1x short press	2 seconds

Setting 1-button operation modes

Desired operation mode	Action		Feedback LED (on receiver)
ON/OFF	Step 1: on the receiver	2x short press
	Step 2: on transmitter	1x short press	2 seconds
DEAD MAN	Step 1: on the receiver	2x short press
		1x long press
	Step 2: on transmitter	1x short press	2 seconds
TIMER	Step 1: on the receiver	3x short press
	Step 2: on transmitter	1x short press	2 seconds

Setting the timer

You can set individual switching times for the TIMER function. The base time measured during setting of the TIMER is multiplied by the selected multiplier. The maximum base time is 30 seconds, the measurement stops automatically after this. The TIMER is set to 7 minutes by default.

The programmed switching time applies to all transmitters programmed in the TIMER operation mode, even if they have already been programmed before the setting of the TIMER.

Action		Feedback LED
Step 1: Select mode “Set TIMER”	3x short press
	1x long press
Step 2: Start base time measurement	1x short press
Step 3: Wait as long as you want the base time to last (max. 30 seconds) The base time measurement is automatically canceled after 60 seconds. Cancelling the TIMER setting is NOT possible at any other point!
Step 4: Stop base time measurement and select desired multiplier.	One of the following options:
	1x short press: select multiplier 1
	2x short press: select multiplier 10
	3x short press: select multiplier 60
	4x short press: select multiplier 600
	5x short press: select multiplier 1800
	6x short press: select multiplier 3600
Step 5: Wait for 5 seconds until settings are saved.		2 seconds

Conversion table

Converted seconds with multiplier to time (hours:minutes:seconds)

Base time (seconds)	Multiplier
	1	10	60	600	1800	3600
1	0:00:01	0:00:10	0:01:00	0:10:00	0:30:00	1:00:00
2	0:00:02	0:00:20	0:02:00	0:20:00	1:00:00	2:00:00
3	0:00:03	0:00:30	0:03:00	0:30:00	1:30:00	3:00:00
4	0:00:04	0:00:40	0:04:00	0:40:00	2:00:00	4:00:00
5	0:00:05	0:00:50	0:05:00	0:50:00	2:30:00	5:00:00
6	0:00:06	0:01:00	0:06:00	1:00:00	3:00:00	6:00:00
7	0:00:07	0:01:10	0:07:00	1:10:00	3:30:00	7:00:00
8	0:00:08	0:01:20	0:08:00	1:20:00	4:00:00	8:00:00
9	0:00:09	0:01:30	0:09:00	1:30:00	4:30:00	9:00:00
10	0:00:10	0:01:40	0:10:00	1:40:00	5:00:00	10:00:00
11	0:00:11	0:01:50	0:11:00	1:50:00	5:30:00	11:00:00
12	0:00:12	0:02:00	0:12:00	2:00:00	6:00:00	12:00:00
13	0:00:13	0:02:10	0:13:00	2:10:00	6:30:00	13:00:00
14	0:00:14	0:02:20	0:14:00	2:20:00	7:00:00	14:00:00
15	0:00:15	0:02:30	0:15:00	2:30:00	7:30:00	15:00:00
16	0:00:16	0:02:40	0:16:00	2:40:00	8:00:00	16:00:00
17	0:00:17	0:02:50	0:17:00	2:50:00	8:30:00	17:00:00
18	0:00:18	0:03:00	0:18:00	3:00:00	9:00:00	18:00:00
19	0:00:19	0:03:10	0:19:00	3:10:00	9:30:00	19:00:00
20	0:00:20	0:03:20	0:20:00	3:20:00	10:00:00	20:00:00
21	0:00:21	0:03:30	0:21:00	3:30:00	10:30:00	21:00:00
22	0:00:22	0:03:40	0:22:00	3:40:00	11:00:00	22:00:00
23	0:00:23	0:03:50	0:23:00	3:50:00	11:30:00	23:00:00
24	0:00:24	0:04:00	0:24:00	4:00:00	12:00:00	24:00:00
25	0:00:25	0:04:10	0:25:00	4:10:00	12:30:00	25:00:00
26	0:00:26	0:04:20	0:26:00	4:20:00	13:00:00	26:00:00
27	0:00:27	0:04:30	0:27:00	4:30:00	13:30:00	27:00:00
28	0:00:28	0:04:40	0:28:00	4:40:00	14:00:00	28:00:00
29	0:00:29	0:04:50	0:29:00	4:50:00	14:30:00	29:00:00
30	0:00:30	0:05:00	0:30:00	5:00:00	15:00:00	30:00:00

Deleting transmitters

In delete mode, individual transmitters can be specifically deleted from the memory of the receiver.

Action			Feedback LED
Step 1: Activate delete mode on receiver	On the receiver	1x long press
Step 2: Delete transmitter	On the transmitter	1x short press	2 seconds

Resetting the receiver

Set the receiver back to the factory settings by doing a reset. All programmed transmitters are deleted and the timer is set to 7 minutes.

Action			Feedback LED
Step 1: Activate delete mode on receiver	On the receiver	1x long press
Step 2: Delete transmission codes and restore the factory settings	On the receiver	1x long press	4 seconds

Troubleshooting

New installations

If the Easywave system does not work after being programmed, perform the following checks:

• Check whether the shield between the battery and the contacts in the push button or hand-held transmitter has been removed.

• Check whether there is good contact integrity between the battery and the battery contacts.

• Check the operation of the connected receiver. Press the programming button (P) on the front of the receiver. If the status LED does not flash, the receiver is defective.

• Check the operation of the push button. Take the hand-held transmitter and walk toward the receiver:

  • If the Easywave system works with the hand-held transmitter but not with the push button, it is possible that moisture or metal is present in the wall. Move the push button, or use a wireless Easywave repeater (05-535) to increase the range.

  • If the Easywave system works only at a short distance, the push button has been moved beyond the transmission range or there is a problem due to interference. Place the push button closer or outside of the range of the interference, or use a wireless Easywave repeater (05-535) to increase the range.

  • If the Easywave system does not work at all, even when you bring the hand-held transmitter close to the receiver, check the programming and/or the batteries of the hand-held transmitter.

Existing installations

In case of problems in an existing installation, check whether the surroundings of the Easywave system have changed, possibly causing interference (metal electricity cabinet, walls, moved furniture, etc.) Restore the original arrangement, if possible.

Specifications

*Not compatible with Niko Home Control (wireless bridge or wireless smart hub)

Wireless network

The operation of devices with a remote control, such as a TV or video and audio devices, is not disrupted by an Easywave hand-held transmitter. The hand-held transmitter does not have to be aimed towards the wireless Easywave receiver. The indoor range is ± 30 m. In open spaces the range reaches 100 m. The range of the hand-held transmitter depends on the materials used in the residence.

A diagnostic device (05-370) can be used to determine the wireless signal strength in an environment. The appliance recognizes all 868.3 Mhz signals. The nine LEDs on the device will indicate the quality of the signals received or the strength of any interrupting signals. This allows you to determine whether or not the signal range of the hand-held transmitter will meet your needs.

Product information

This link takes you to the product page. There, you will find detailed specifications, all compatible articles, certificates of CE-marking, etc.

This online manual is applicable to the following product(s):

• 410-00332 | RF receiver, potential free, 1 changeover contact, flush mounting

Dimensions
