410-00331
Description
This flush-mounted receiver is used to switch an electrical device ON and OFF using a wireless push button, handheld transmitter or an external wired button. This receiver has a 230 V normally open relay contact, suitable for lighting control.
Up to 32 wireless transmitters (button or handheld) can be programmed into the receiver. The receiver is equipped with the following 1- or 2-button operation modes: ON/OFF, AND/OR LOGIC, DEAD MAN, TIMER.
Compatible products

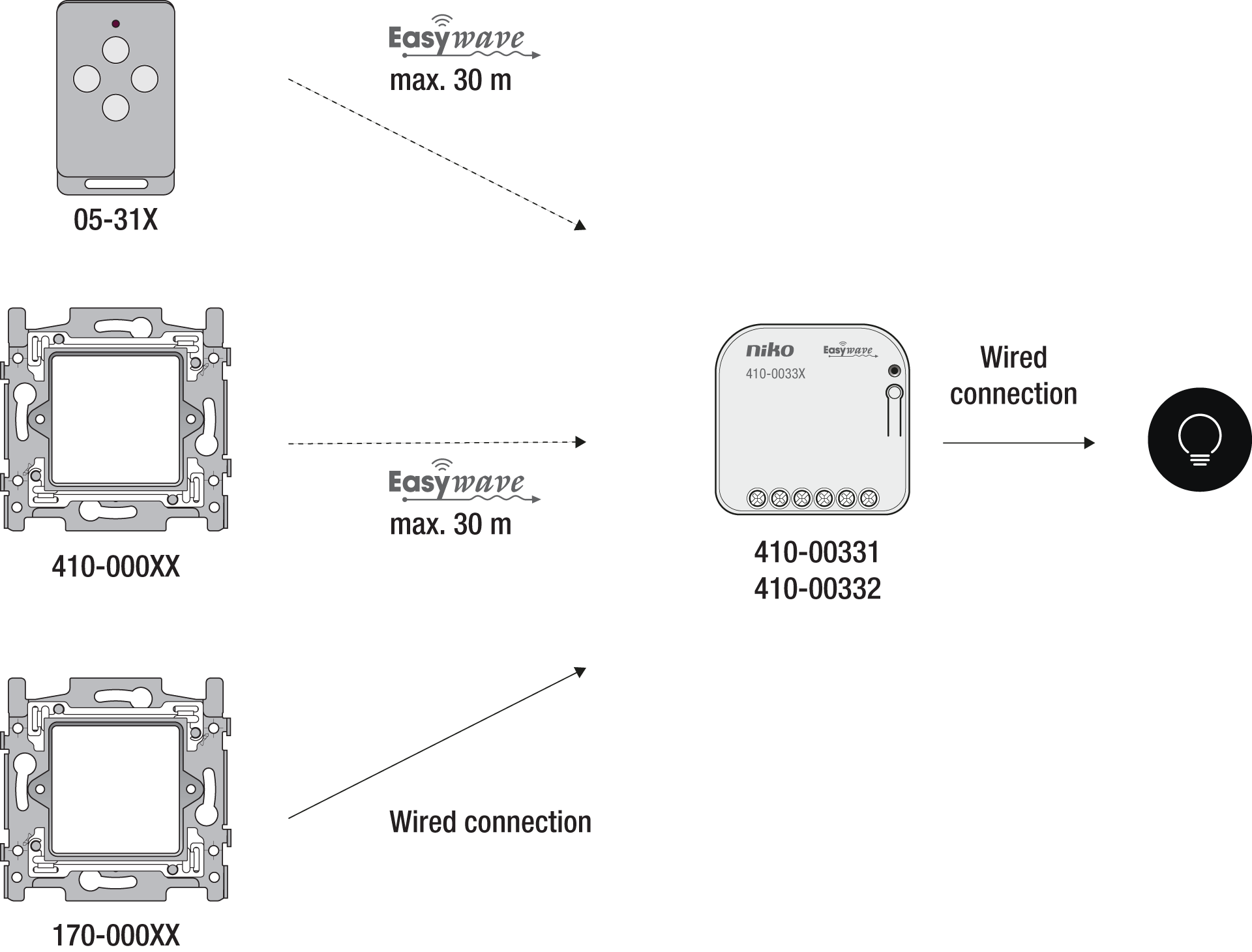

This product can be wirelessly controlled from a Niko Easywave hand-held transmitter (05-31X) and/or wireless push button (410-0000X). For local operation, external buttons can be connected.
This product can be installed behind a Niko blind plate (XXX-76900) or external wired push button (e.g. 170-0000X) in the colour of your choice.
This product is NOT compatible with Niko Home Control (550-XXXXX, 551-XXXXX, 552-XXXXX).
Installation
230 V – OFF

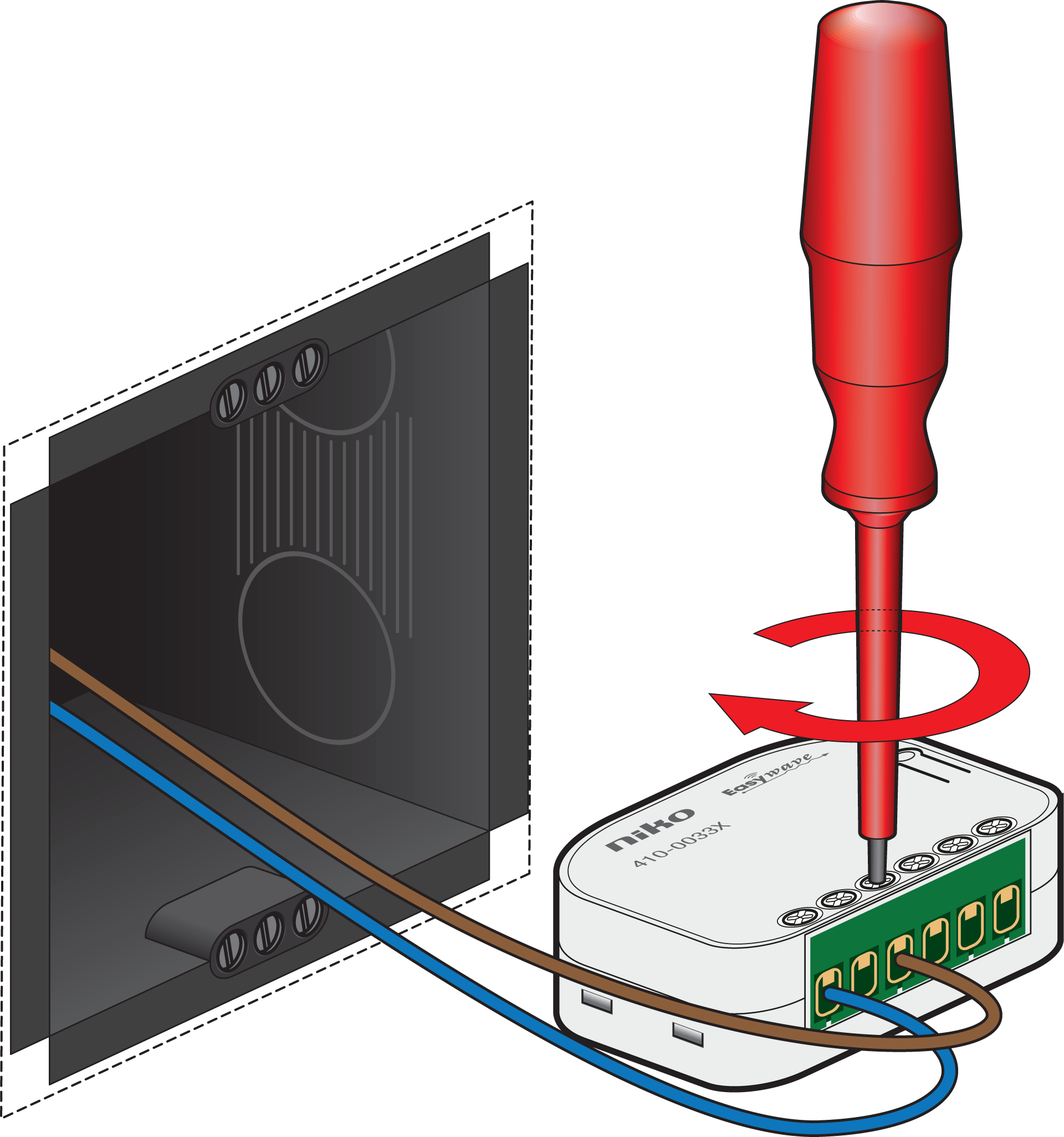

Connect the supply voltage and the devices to be controlled, according to the wiring diagram.
230 V – ON
Complete the programming.

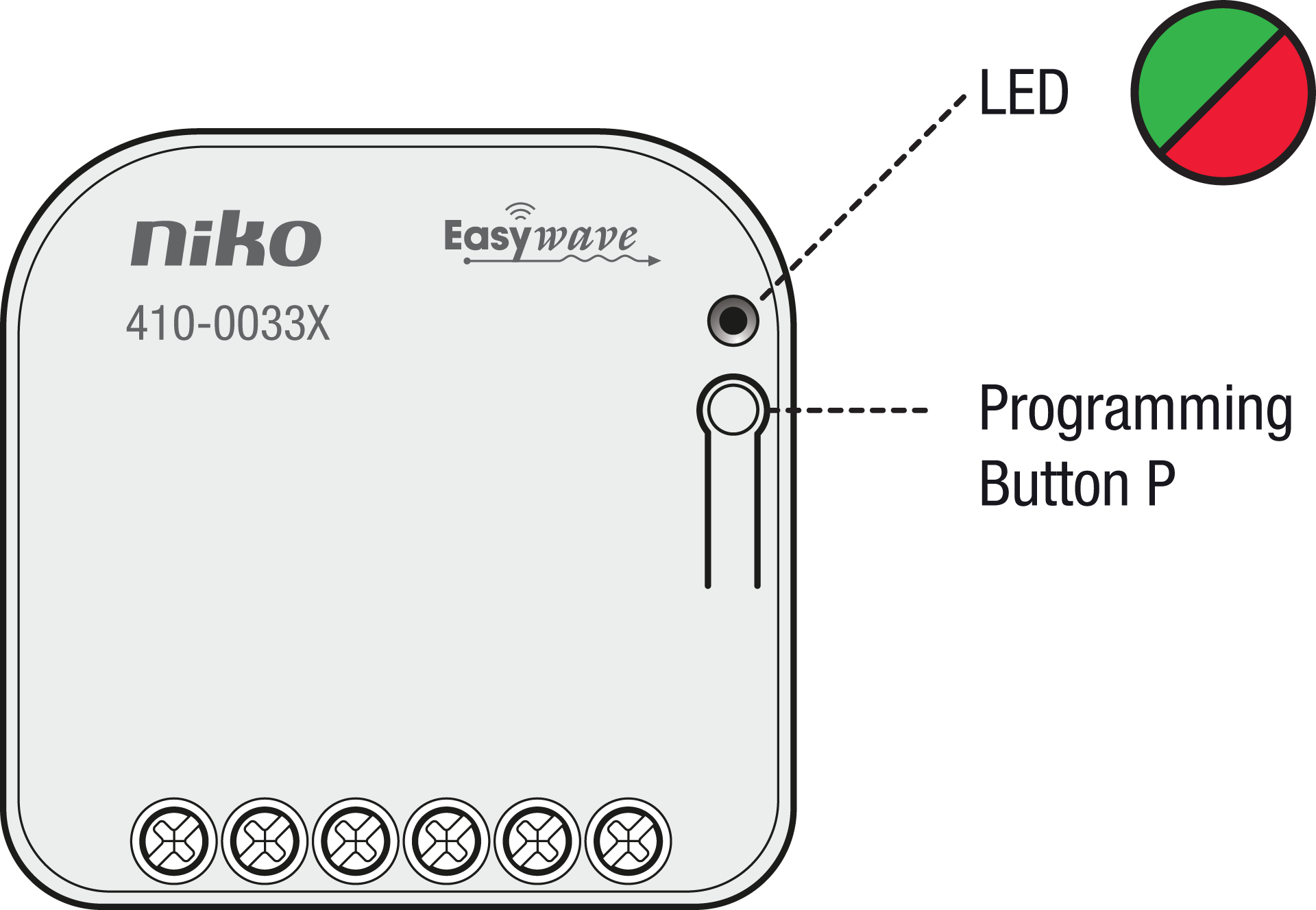

Button P and the LED on the receiver must be accessible during programming.
230 V – OFF

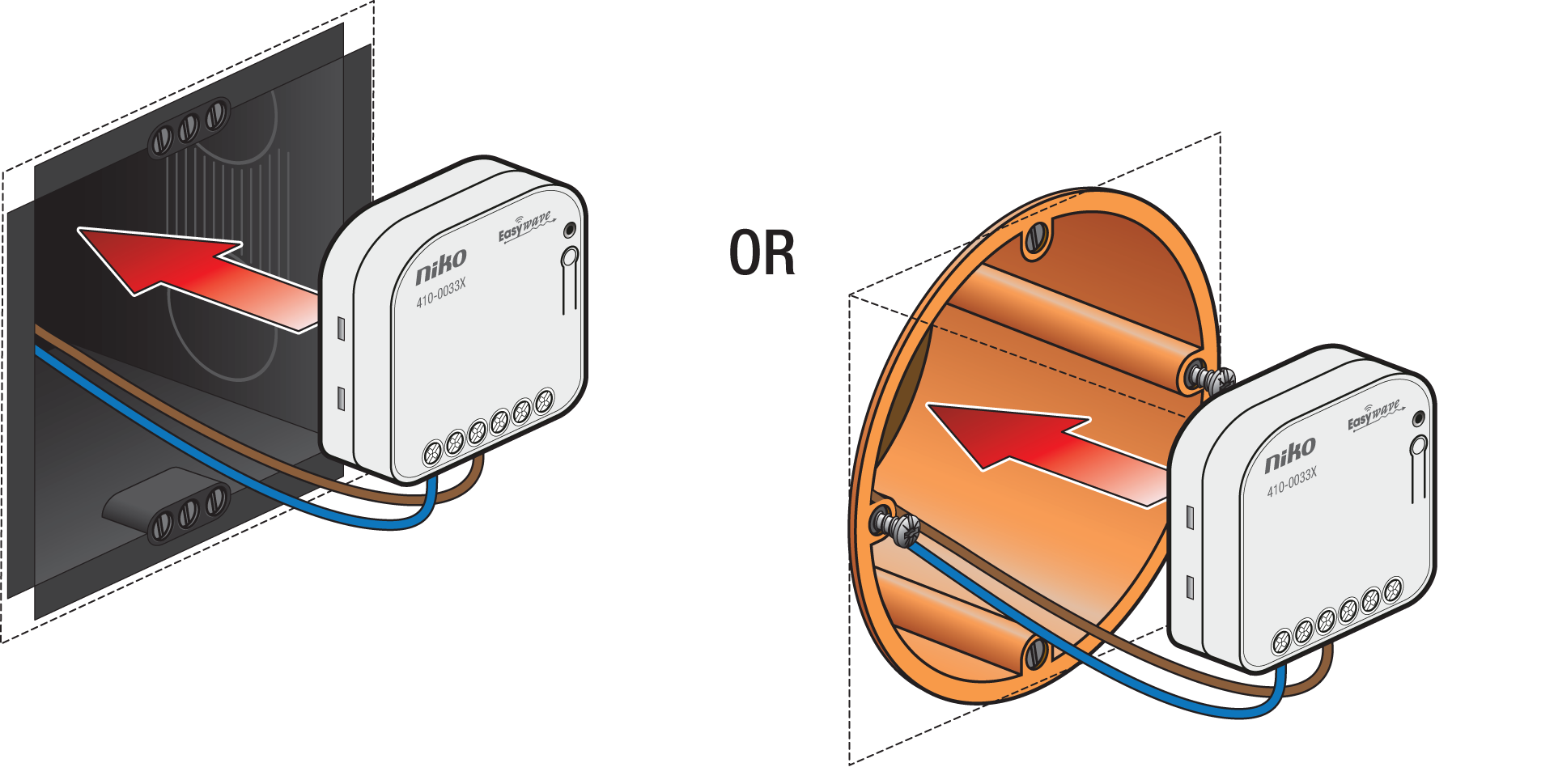

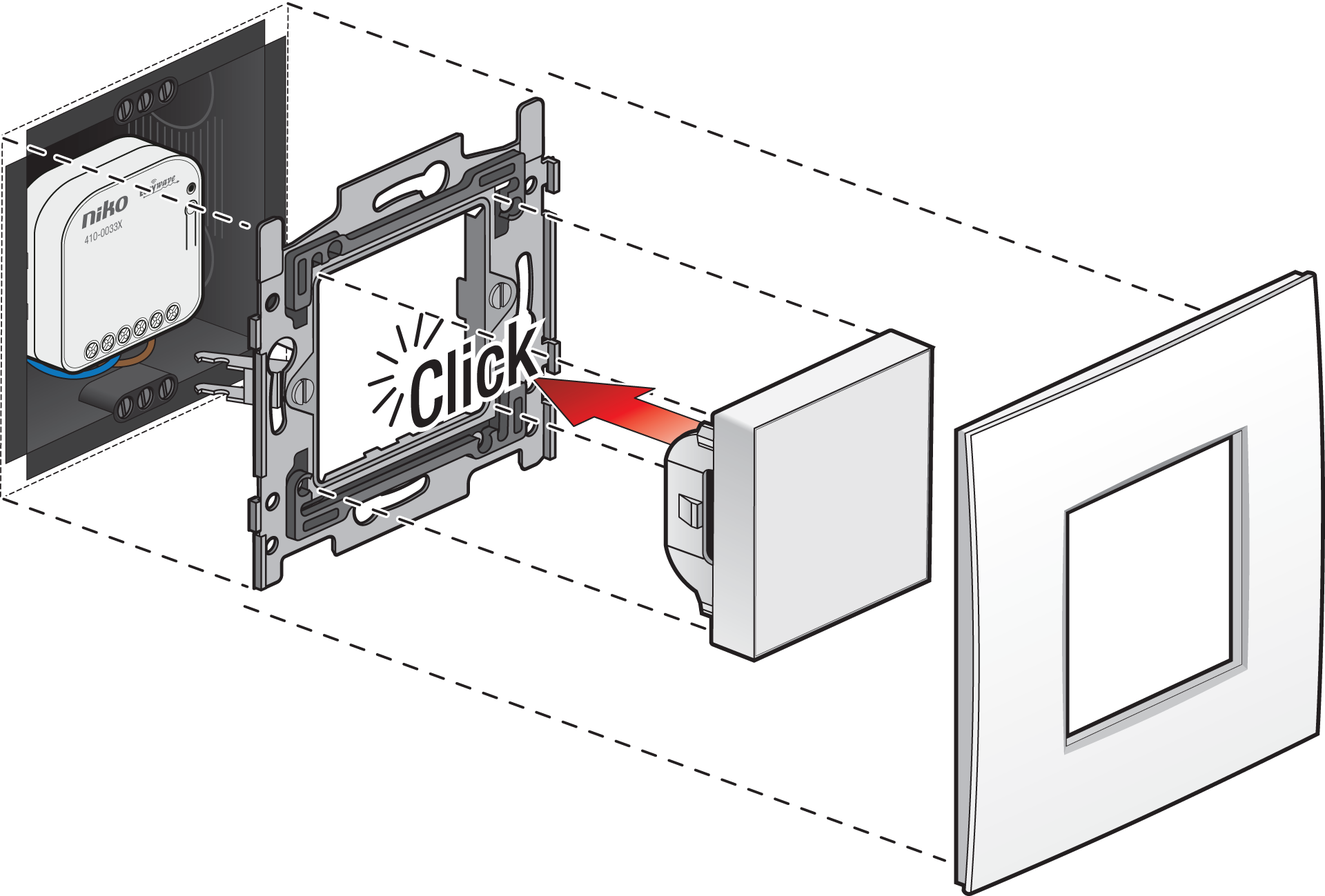

Place the receiver in the flush-mounting box.
Mount the blind plate or push button.
 |  |

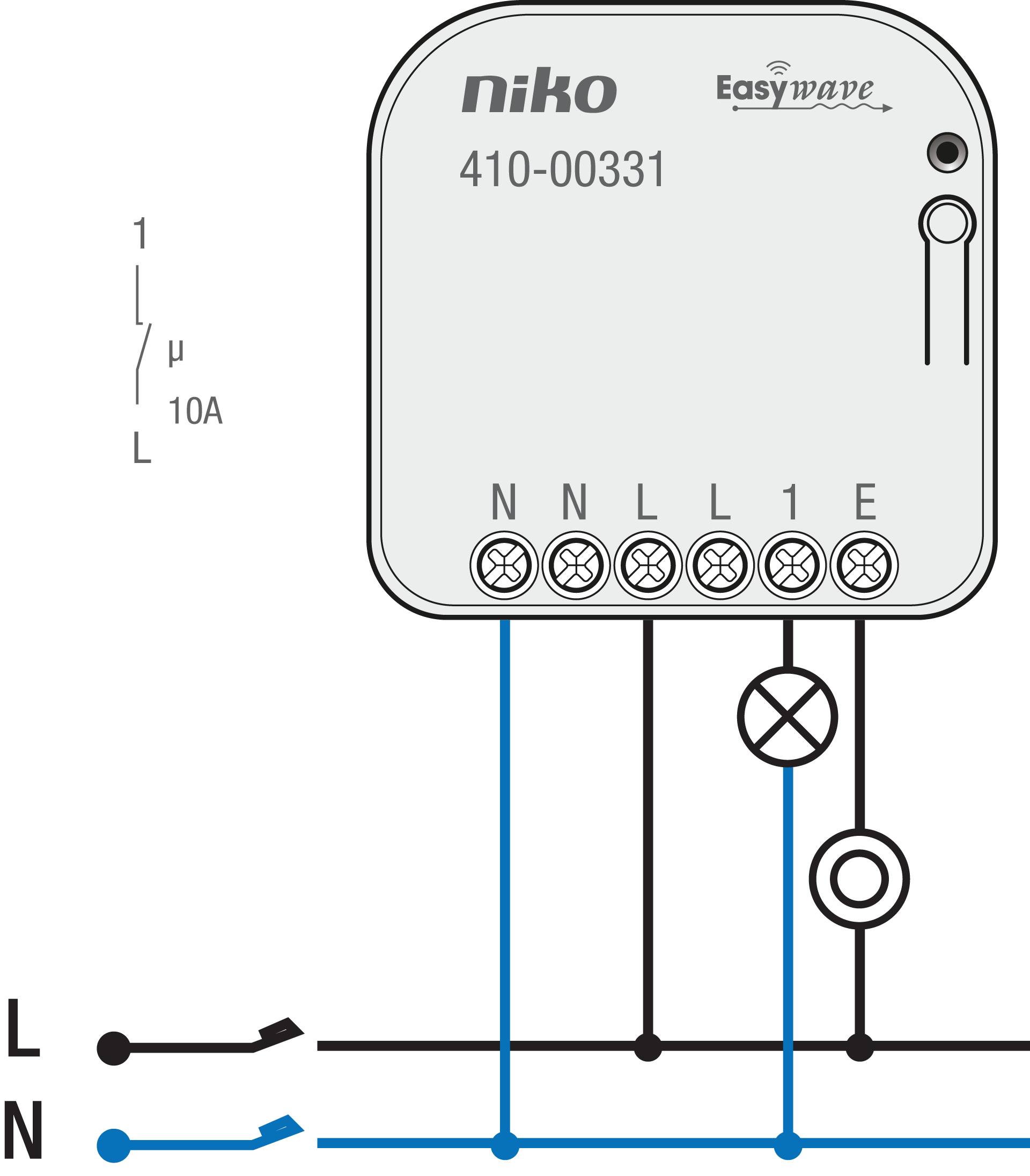

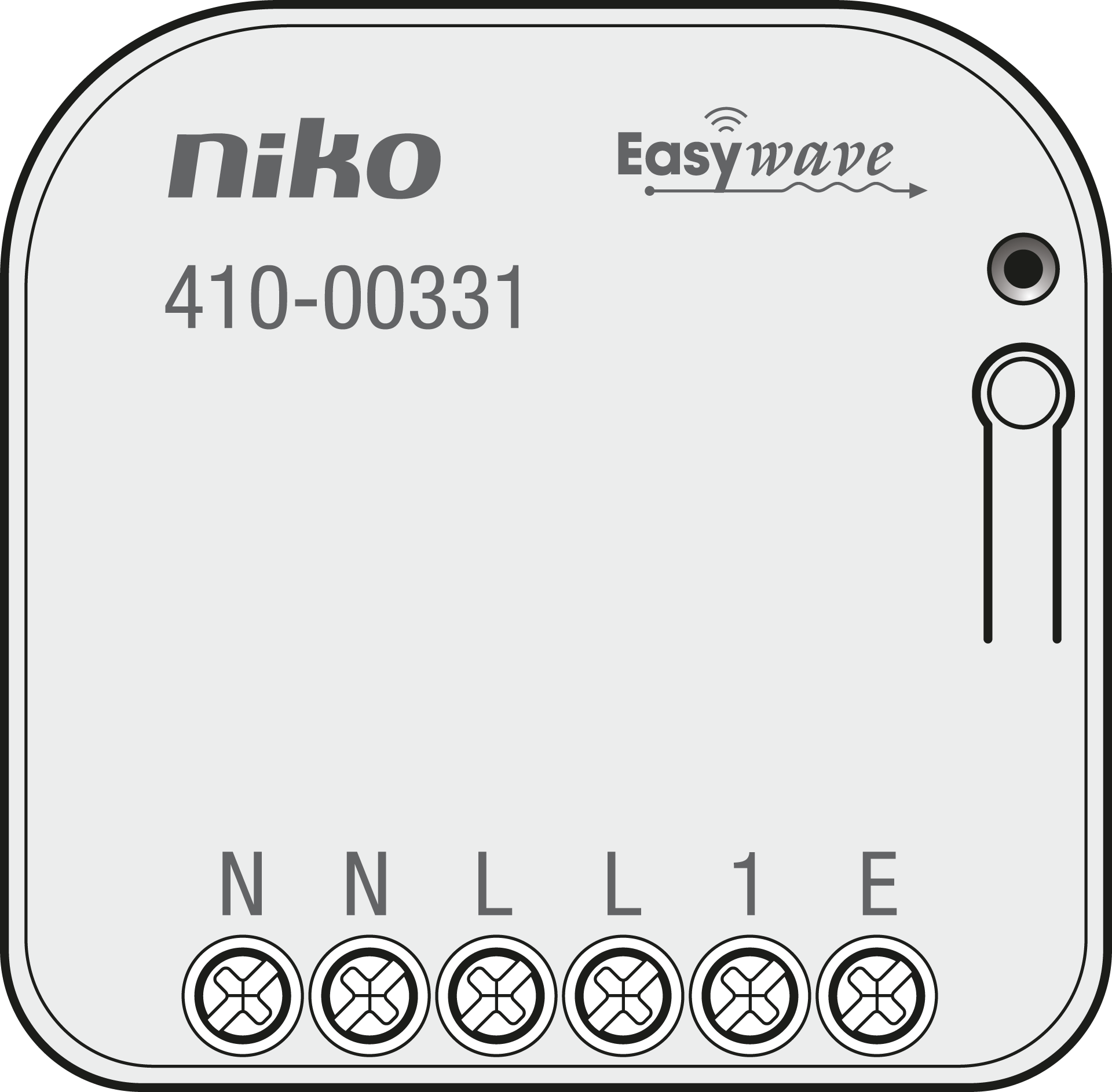

Wiring
Operation and use
230 V – ON
Controlling via the push-button input (E)
This product has one push-button input (E), which has to be connected to L (see Wiring). The push-button input behaves like a transmitter button with button code B and should always be used in 1-button operation.
When used with factory settings, the push-button input works in the ON/OFF 1-button operation mode. The external button can be programmed in other operation modes or deleted at any time. If the external button is deleted from memory, the product returns to the factory settings.
If the push-button input is programmed in the ON/OFF 2-button operation mode, it can lock the output. As long as the push-button input is closed, the switching output remains switched OFF. Radio transmitters are ignored during this time.
If the push-button input is programmed in DEAD MAN operation mode, it switches the output ON as long as it is closed. However, radio transmitters can switch the output OFF again at any time.
It is not possible to use the push-button input in the LOGIC operation mode.
Controlling via wireless controls
Each wireless push button, hand-held transmitter or external wired button can be assigned its own operation mode. You can use the following buttons:

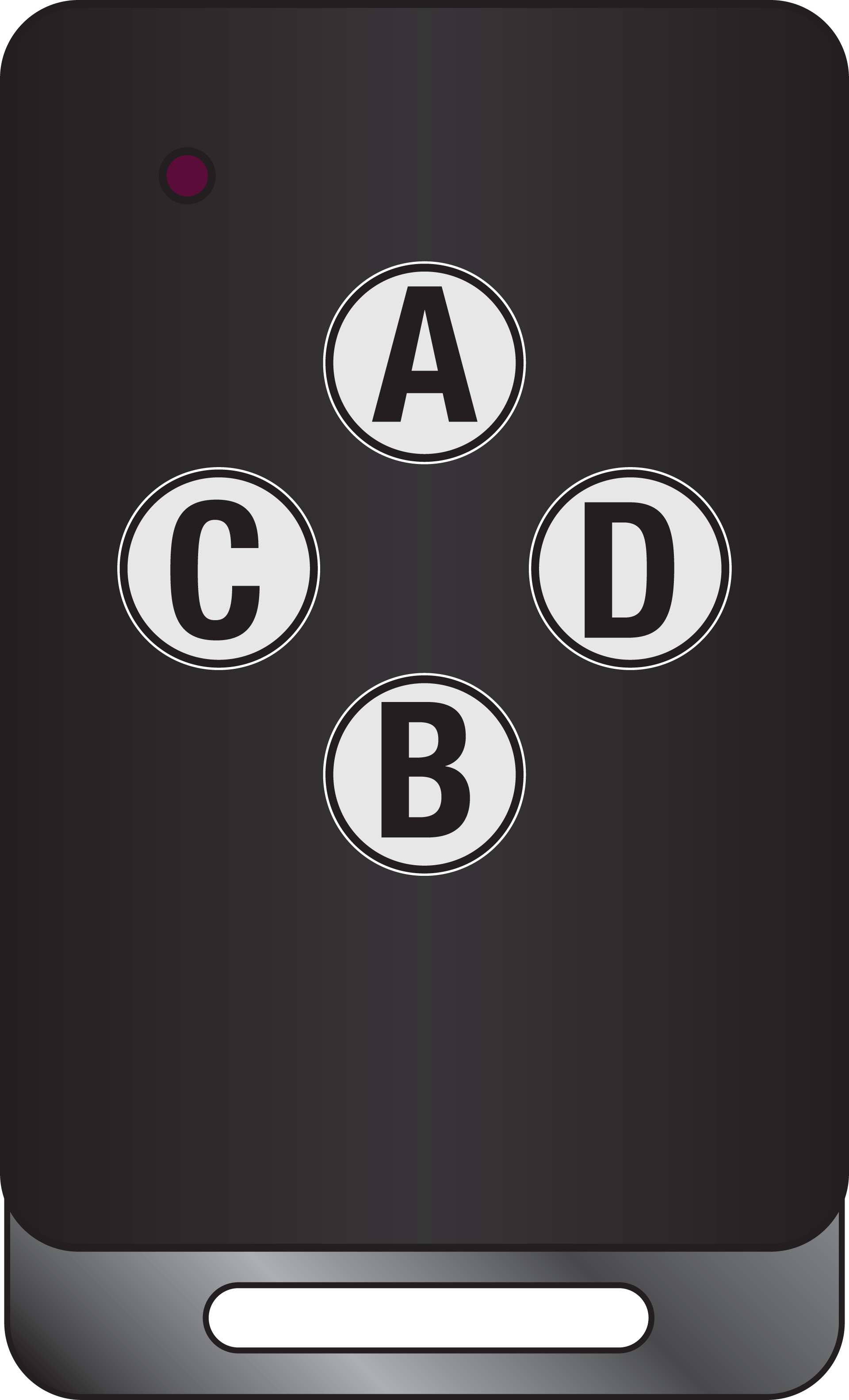

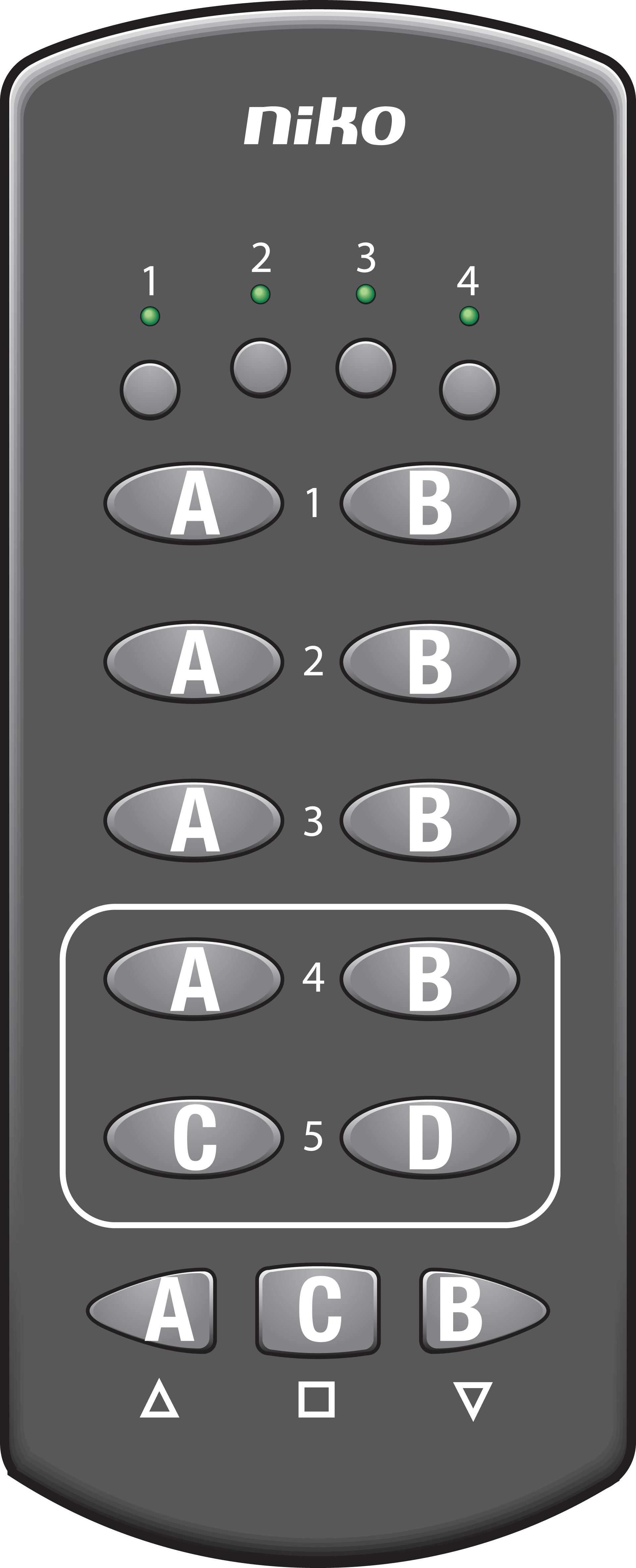

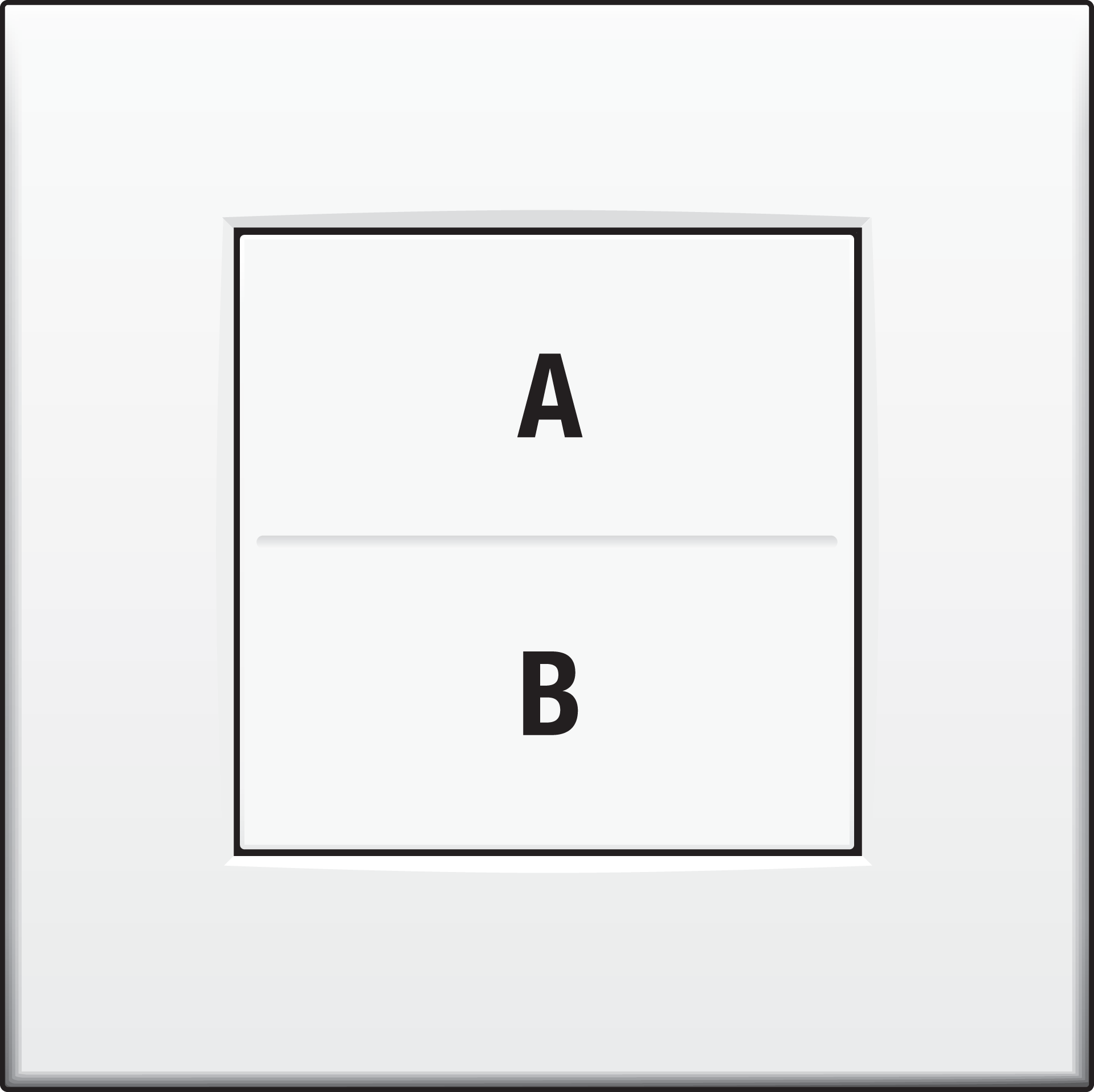

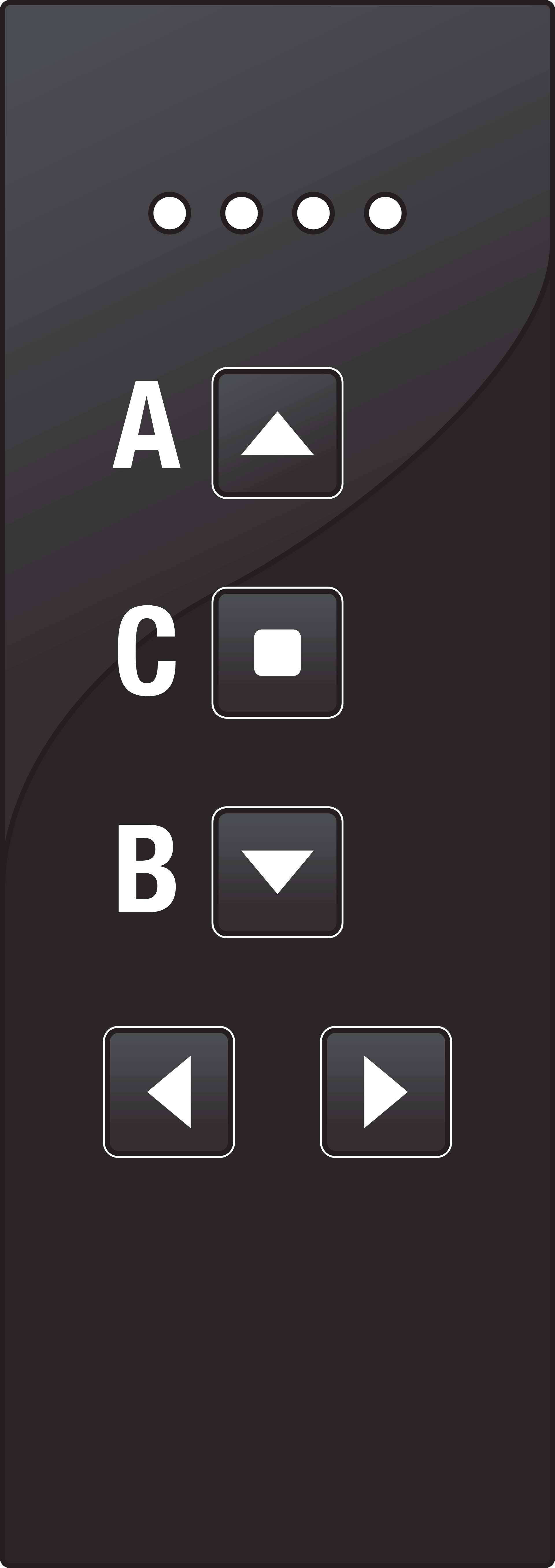

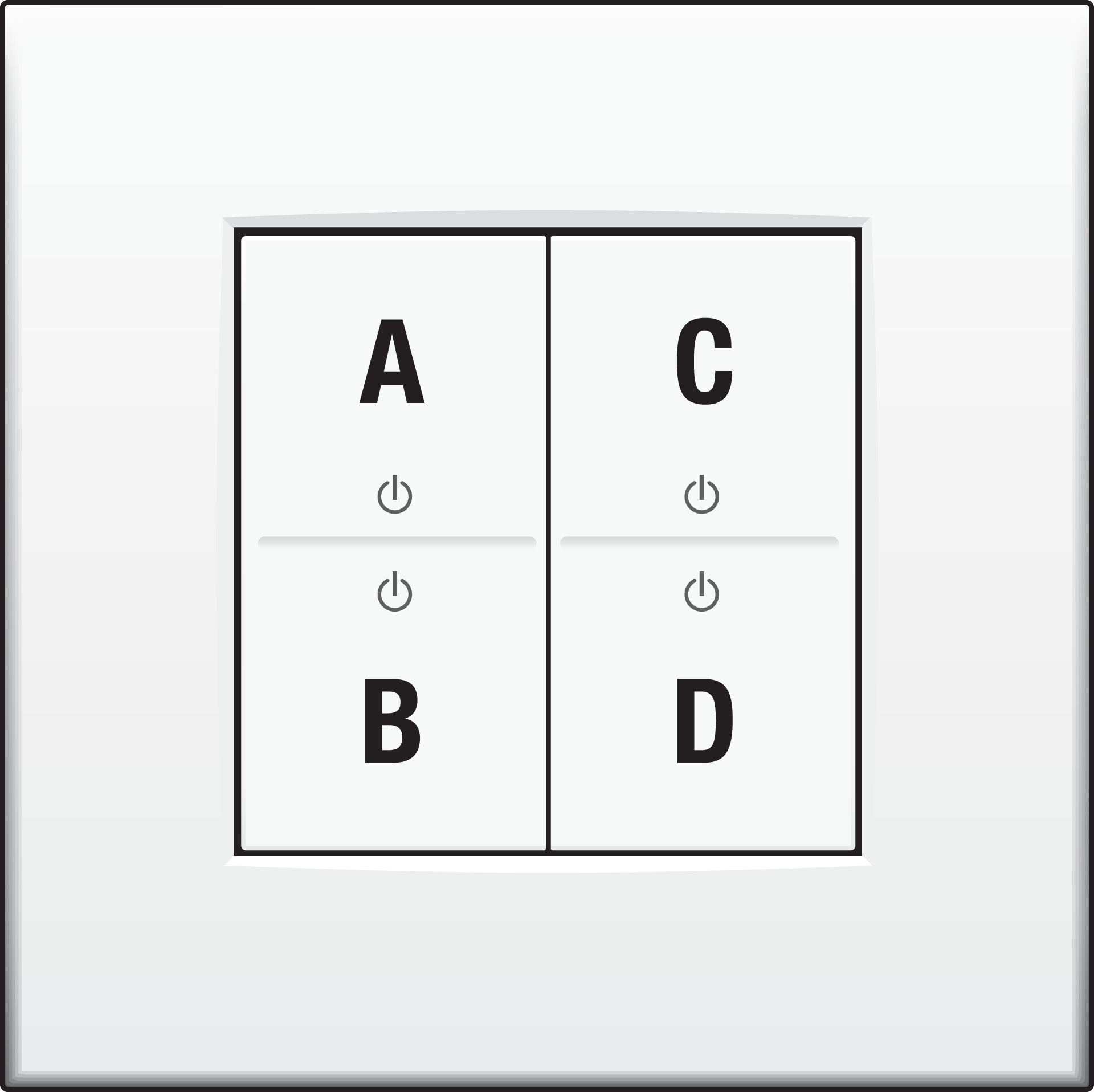

05-311 | 05-312 | 05-317 | 05-318 | 410-00001 | 410-00002 |
|---|---|---|---|---|---|
 |  |  |  |  |  |
2-button operation
Operation mode | Transmission code | Command | Other commands |
|---|---|---|---|
ON/OFF | A or C | Switch ON | |
B or D | Switch OFF | ||
LOGIC | A or C | Switch ON | This operation is reset by any command from a transmitter under another operation type |
B and D | Switch OFF |
1-button operation
Operation mode | Transmission code | Command | Other commands |
|---|---|---|---|
ON/OFF | A or B or C or D | Switch ON and OFF alternately | Long press (>2 seconds) switches output OFF, regardless of its current state |
DEAD MAN | A or B or C or D | Output switches as long as button is pressed:
| |
TIMER | A or B or C or D | Switch ON | Switch OFF after set time (factory setting: 7 minutes) If pressed again, the timer counts down again from the set time. |
Programming
230 V – ON
Programming mode
With button P on the receiver, you can activate the programming mode for the required operation type on your receiver.
You can cancel the programming process by briefly pressing the P programming button maximum 3 times. Once the LED turns off, the receiver returns to standby.
If no button is pressed within 30 seconds, the receiver automatically switches to operation mode.
The settings are not saved.
Press the button to be programmed on the hand-held transmitter or the external button. The LED on the receiver provides feedback when the transmission code is programmed successfully.
When the LED on the receiver turns off, the receiver is ready for operation.
Entering programming mode
With short press (<2 seconds) and long press (>2 seconds), you can navigate through the programming structure. The LED on the receiver provides feedback on the selected programming mode, through its colour and the way it flashes.
Leaving programming mode
You can cancel the programming process by briefly pressing the P programming button maximum 3 times.
Setting 2-button operation modes
Only one transmitter button must be programmed, the code for the associated button is assigned automatically.
Desired operation mode | Action | Feedback LED | |
|---|---|---|---|
ON/OFF | Step 1: on the receiver | 1x short press |  |
Step 2: on transmitter | 1x short press |  2 seconds | |
LOGIC | Step 1: on the receiver | 1x short press | |
1x long press |  | ||
Step 2: on transmitter | 1x short press |  2 seconds | |
Setting 1-button operation modes
Desired operation mode | Action | Feedback LED (on receiver) | |
|---|---|---|---|
ON/OFF | Step 1: on the receiver | 2x short press |  |
Step 2: on transmitter | 1x short press | 2 seconds | |
DEAD MAN | Step 1: on the receiver | 2x short press | |
1x long press |  | ||
Step 2: on transmitter | 1x short press | 2 seconds | |
TIMER | Step 1: on the receiver | 3x short press |  |
Step 2: on transmitter | 1x short press | 2 seconds | |
Setting the timer
You can set individual switching times for the TIMER function. The base time measured during setting of the TIMER is multiplied by the selected multiplier. The maximum base time is 30 seconds, the measurement stops automatically after this. The TIMER is set to 7 minutes by default.
The programmed switching time applies to all transmitters programmed in the TIMER operation mode, even if they have already been programmed before the setting of the TIMER.
Action | Feedback LED | |
|---|---|---|
Step 1: Select mode “Set TIMER” | 3x short press |  |
1x long press | | |
Step 2: Start base time measurement | 1x short press |  |
Step 3: Wait as long as you want the base time to last (max. 30 seconds) The base time measurement is | ||
Step 4: Stop base time measurement and select desired multiplier. | One of the following options: | |
1x short press: select multiplier 1 |  | |
2x short press: select multiplier 10 |  | |
3x short press: select multiplier 60 |  | |
4x short press: select multiplier 600 |  | |
5x short press: select multiplier 1800 |  | |
6x short press: select multiplier 3600 |  | |
Step 5: Wait for 5 seconds until settings are saved. | 2 seconds |
Conversion table
Converted seconds with multiplier to time (hours:minutes:seconds)
Base time (seconds) | Multiplier | |||||
|---|---|---|---|---|---|---|
1 | 10 | 60 | 600 | 1800 | 3600 | |
1 | 0:00:01 | 0:00:10 | 0:01:00 | 0:10:00 | 0:30:00 | 1:00:00 |
2 | 0:00:02 | 0:00:20 | 0:02:00 | 0:20:00 | 1:00:00 | 2:00:00 |
3 | 0:00:03 | 0:00:30 | 0:03:00 | 0:30:00 | 1:30:00 | 3:00:00 |
4 | 0:00:04 | 0:00:40 | 0:04:00 | 0:40:00 | 2:00:00 | 4:00:00 |
5 | 0:00:05 | 0:00:50 | 0:05:00 | 0:50:00 | 2:30:00 | 5:00:00 |
6 | 0:00:06 | 0:01:00 | 0:06:00 | 1:00:00 | 3:00:00 | 6:00:00 |
7 | 0:00:07 | 0:01:10 | 0:07:00 | 1:10:00 | 3:30:00 | 7:00:00 |
8 | 0:00:08 | 0:01:20 | 0:08:00 | 1:20:00 | 4:00:00 | 8:00:00 |
9 | 0:00:09 | 0:01:30 | 0:09:00 | 1:30:00 | 4:30:00 | 9:00:00 |
10 | 0:00:10 | 0:01:40 | 0:10:00 | 1:40:00 | 5:00:00 | 10:00:00 |
11 | 0:00:11 | 0:01:50 | 0:11:00 | 1:50:00 | 5:30:00 | 11:00:00 |
12 | 0:00:12 | 0:02:00 | 0:12:00 | 2:00:00 | 6:00:00 | 12:00:00 |
13 | 0:00:13 | 0:02:10 | 0:13:00 | 2:10:00 | 6:30:00 | 13:00:00 |
14 | 0:00:14 | 0:02:20 | 0:14:00 | 2:20:00 | 7:00:00 | 14:00:00 |
15 | 0:00:15 | 0:02:30 | 0:15:00 | 2:30:00 | 7:30:00 | 15:00:00 |
16 | 0:00:16 | 0:02:40 | 0:16:00 | 2:40:00 | 8:00:00 | 16:00:00 |
17 | 0:00:17 | 0:02:50 | 0:17:00 | 2:50:00 | 8:30:00 | 17:00:00 |
18 | 0:00:18 | 0:03:00 | 0:18:00 | 3:00:00 | 9:00:00 | 18:00:00 |
19 | 0:00:19 | 0:03:10 | 0:19:00 | 3:10:00 | 9:30:00 | 19:00:00 |
20 | 0:00:20 | 0:03:20 | 0:20:00 | 3:20:00 | 10:00:00 | 20:00:00 |
21 | 0:00:21 | 0:03:30 | 0:21:00 | 3:30:00 | 10:30:00 | 21:00:00 |
22 | 0:00:22 | 0:03:40 | 0:22:00 | 3:40:00 | 11:00:00 | 22:00:00 |
23 | 0:00:23 | 0:03:50 | 0:23:00 | 3:50:00 | 11:30:00 | 23:00:00 |
24 | 0:00:24 | 0:04:00 | 0:24:00 | 4:00:00 | 12:00:00 | 24:00:00 |
25 | 0:00:25 | 0:04:10 | 0:25:00 | 4:10:00 | 12:30:00 | 25:00:00 |
26 | 0:00:26 | 0:04:20 | 0:26:00 | 4:20:00 | 13:00:00 | 26:00:00 |
27 | 0:00:27 | 0:04:30 | 0:27:00 | 4:30:00 | 13:30:00 | 27:00:00 |
28 | 0:00:28 | 0:04:40 | 0:28:00 | 4:40:00 | 14:00:00 | 28:00:00 |
29 | 0:00:29 | 0:04:50 | 0:29:00 | 4:50:00 | 14:30:00 | 29:00:00 |
30 | 0:00:30 | 0:05:00 | 0:30:00 | 5:00:00 | 15:00:00 | 30:00:00 |
Deleting transmitters
In delete mode, individual transmitters can be specifically deleted from the memory of the receiver.
Action | Feedback LED | ||
|---|---|---|---|
Step 1: Activate delete mode on receiver | On the receiver | 1x long press |  |
Step 2: Delete transmitter | On the transmitter | 1x short press | 2 seconds |
Resetting the receiver
Set the receiver back to the factory settings by doing a reset. All programmed transmitters are deleted and the timer is set to 7 minutes.
Action | Feedback LED | ||
|---|---|---|---|
Step 1: Activate delete mode on receiver | On the receiver | 1x long press | |
Step 2: Delete transmission codes and restore the factory settings | On the receiver | 1x long press | 4 seconds |
Troubleshooting
New installations
If the Easywave system does not work after being programmed, perform the following checks:
Check whether the shield between the battery and the contacts in the push button or hand-held transmitter has been removed.
Check whether there is good contact integrity between the battery and the battery contacts.
Check the operation of the connected receiver. Press the programming button (P) on the front of the receiver. If the status LED does not flash, the receiver is defective.
Check the operation of the push button. Take the hand-held transmitter and walk toward the receiver:
If the Easywave system works with the hand-held transmitter but not with the push button, it is possible that moisture or metal is present in the wall. Move the push button, or use a wireless Easywave repeater (05-535) to increase the range.
If the Easywave system works only at a short distance, the push button has been moved beyond the transmission range or there is a problem due to interference. Place the push button closer or outside of the range of the interference, or use a wireless Easywave repeater (05-535) to increase the range.
If the Easywave system does not work at all, even when you bring the hand-held transmitter close to the receiver, check the programming and/or the batteries of the hand-held transmitter.
Existing installations
In case of problems in an existing installation, check whether the surroundings of the Easywave system have changed, possibly causing interference (metal electricity cabinet, walls, moved furniture, etc.) Restore the original arrangement, if possible.
Problem | Possible cause | Proposed solution |
|---|---|---|
Lighting switches on automatically | The Easywave system is switched on, because another push button or hand-held transmitter is programmed within the reception range | Reset the receiver and reprogram |
Lighting switches off automatically | The Easywave system is switched off, because another push button or hand-held transmitter is programmed within the reception range | Reset the receiver and reprogram |
The Easywave system is switched off, due to a (brief) interruption in the power supply | Switch the light back on using the programmed transmitter for this receiver | |
Receiver does not respond to pressed buttons | The battery of your wireless push button might be depleted after several years of use | Check the battery of the wireless push button |
Specifications
Specification | Value | |
|---|---|---|
Radiated power | 6.38 mW | |
Modulation | FSK | |
Input | 1 external push button | |
Output | 1 potential-loaded relay contact (normally open) | |
Power consumption | stand-by | 0.4 W |
without load | 0.8 W | |
Maximum contact load | resistive load | 10 A / 2300 VA |
inductive load | 3 A / 690 VA | |
Input voltage | 230 Vac ± 10%, 50 Hz | |
Wire capacity | 1 x 2.5 mm² per connection terminal | |
Maximum MCB rating | 10 A | |
Communication protocol | Easywave* | |
Operating frequency | 868.3 MHz | |
Ambient temperature | -20 - +45°C | |
Protection degree | IP20 | |
Dimensions (HxWxD) | 43 x 42 x 17.5 mm | |
Weight | 31 g | |
Marking | CE | |
*Not compatible with Niko Home Control (wireless bridge or wireless smart hub)
Wireless network

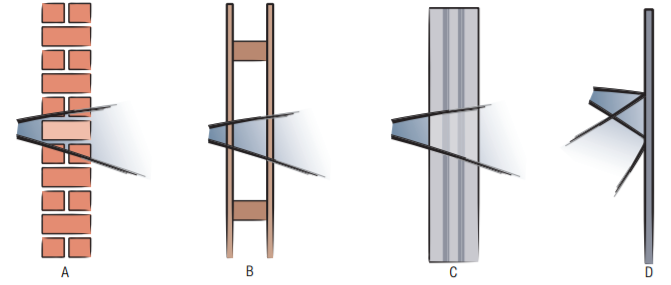

The operation of devices with a remote control, such as a TV or video and audio devices, is not disrupted by an Easywave hand-held transmitter. The hand-held transmitter does not have to be aimed towards the wireless Easywave receiver. The indoor range is ± 30 m. In open spaces the range reaches 100 m. The range of the hand-held transmitter depends on the materials used in the residence.
A | Brick, concrete | Loss of 20 to 40% |
|---|---|---|
B | wood, plaster walls | Loss of 5 to 20% |
C | reinforced concrete | Loss of 40 to 90% |
D | confined metal space | Loss of 90 to 100% |
A diagnostic device (05-370) can be used to determine the wireless signal strength in an environment. The appliance recognizes all 868.3 Mhz signals. The nine LEDs on the device will indicate the quality of the signals received or the strength of any interrupting signals. This allows you to determine whether or not the signal range of the hand-held transmitter will meet your needs.
Product information
This link takes you to the product page. There, you will find detailed specifications, all compatible articles, certificates of CE-marking, etc.
This online manual is applicable to the following product(s):
410-00331 | Single-pole, 1-channel, flush-mounting RF receiver

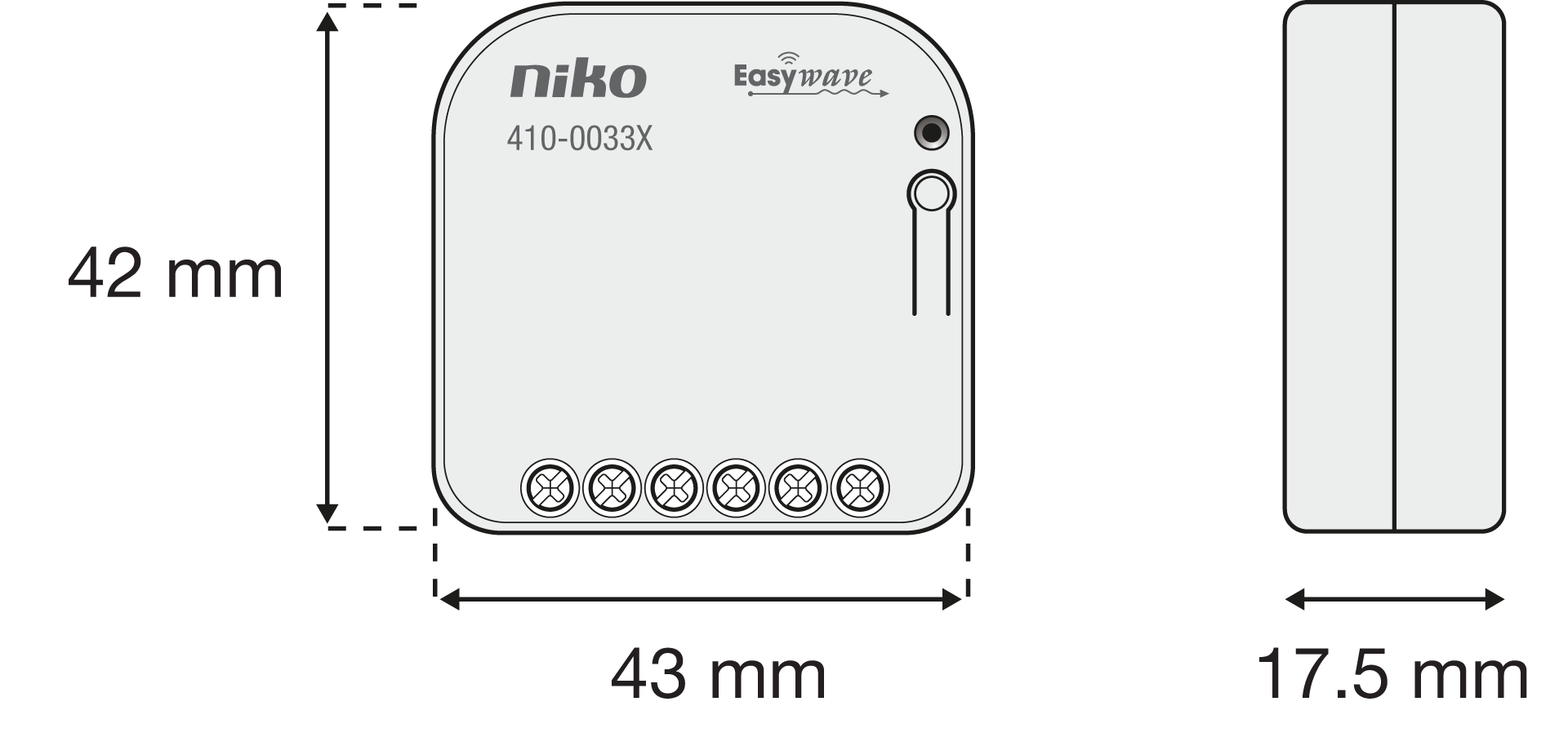

Dimensions
